Docking Entertainment System DCD778
DVD Kitchen Radio
with dock for iPod
Quick Start Guide
Preparation
Connect it
Mount it
Use it
This Guide shows you:
• basic installation setup
• how to install your unit
• how to play a DVD
• how you can watch TV on
the unit
For detailed operation of all the features, please also read the
User manual.
4
3
2
1

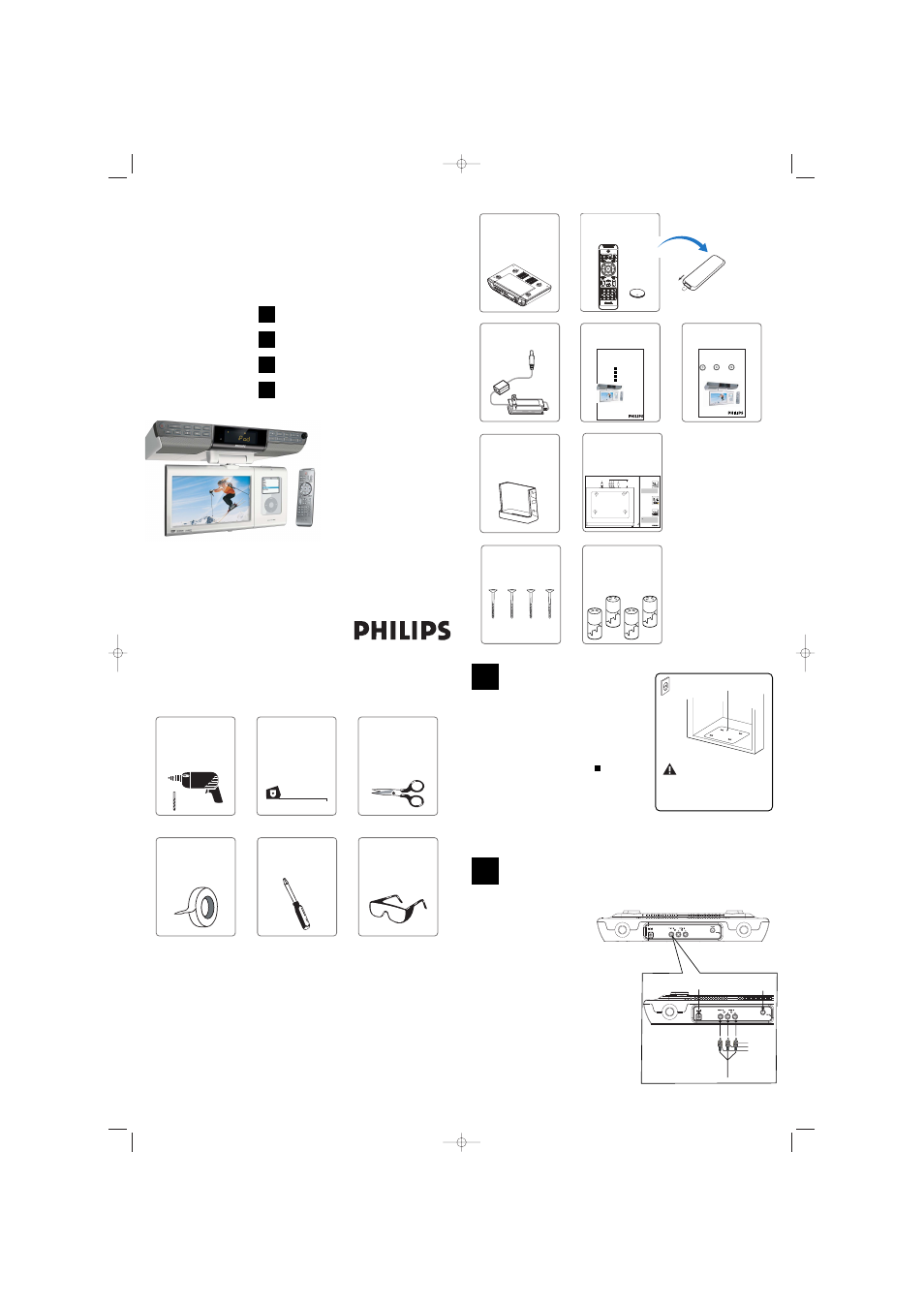

What’s in the box
CR2025
Docking Entertainment System DCD778 DVD Kitchen Radio
with dock for iPod
Quick Start Guide
Preparation
Connect it
Mount it Use it
This Guide shows you:
• basic installation setup
• how to install your unit
• how to play a DVD
• how you can watch TV on
the unit
For detailed operation of all the features, please also read the
User manual.
4
3
2 1
Docking Entertainment System
DVD Kitchen Radio
with dock for iPod
DCD778
Thank you for choosing Philips. Need help fast? Read your Quick Start Guide and/or User Manual first for quick tips that make using your Philips product more enjoyable. If you have read your instructions and still need assistance, you may access our online help at www.philips.com/usasupport
Philips vous remercie de votre confiance. Besoin d'une aide rapide? Les Guide d'utilisation rapide et Manuel de
l'utilisateur regorgent d'astuces destinées à
simplifier l'utilisation de votre produit Philips.
Toutefois, si vous ne parvenez pas à résoudre
votre probléme, vous pouvez accéder à notre aide en ligne à l'adresse www.philips.com/usasupport
Gracias por escoger Philips Necesita ayuda inmediata? Lea primero la Guía de uso rápido o el
Manual del usuario, en donde encontrará
consejos que le ayudarán a disfrutar plenamente de su producto Philips. Si después de leerlo aún necesita ayuda, consulte nuestro servicio de asistencia en línea en www.philips.com/usasupport
DVD Kitchen Radio
with dock for iPod
Remote control
with one CR2025
battery loaded
Quick start guide
6 x iPod dock
adaptors
User manual
4 x screws
12V DC adapter
What else you'll need
These tools (not included) will help you mount the unit as described in part 3 Mount it, and on the
template.
Preparation
For best performance, install the unit as far as
possible from sources of noise and interference
(e.g. fridges, microwaves, fluorescent lamps)
a Find a mounting location near a wall outlet.
b Use the mounting template to test the design and
thickness of your kitchen cabinet bottom.
c Decide whether you want to connect the unit with
other audio/ visual equipment. ( See B below)
Connect it
A
Connect the following supplied
accessories to the respective jacks on
the rear of the unit :
• 12V DC power adapter
• Extend the FM pigtail antenna fixed
to the main unit
(The unit has bulit-in AM antenna.)
B
Other connections (cables not
included)
•
For TV reception on the unit, connect a TV anten-
na/CATV cable (not supplied).
• For use with VCR or other audio/video appliances,
connect the composite cable and match the col-
ors of the cinches (AUDIO IN L/R, VIDEO IN) on the unit.
2
Electric drill Tape measure Scissors
Sellotape Screwdriver Safety goggles
324xxx PDCC-JH-0707
W
1
a
Template
b
To reduce the risk of fire,
do not place any heating or
cooking apparatus beneath
this unit.
2
AUDIO-R (Red)
AUDIO-L (White)
VIDEO (Yellow)
TV DC
Remove the insulation plastic tab
before use
4 x spacers
Mount it
Ask a friend to help you mount the unit as it is quite heavy. A
• Cut the template to fit inside the cabinet.
• Align the template border marked "FRONT"
along the front edge of your cabinet. • Use adhesive tape to fix the template.
• Drill 1/4 inch holes (size X.X mm diameter, X inch), as marked X on the template. • Remove the template when you finish drilling.
B
Using the spacers
On the spacers, there are 4 pairs of notch length
options. Depending on the thickness of you cabi-
net bottom (with/ without an overhang), these
notch lengths correspond to the 4 notch height in
the space holders, and allow you to adjust to the
best height to help you mount the unit.
• Measure the height of the cabinet bottom and/overhang. • Turn the spacer counterclockwise to determine which of the 4 heights is most suitable: High • •
Low • Insert the spacers accordingly. C
• Manually fasten the 4 screws down into the spacer holder holes to mount your set. If the
overhang is more than 1 1/4 inch, use longer
screws (not included).
Tip
– Use a nail to start each drill hole.
– Hold your drill firmly at 90o with the cabinet bottom and drill holes at
low speed.
– Clear wood shavings.
Tip To prevent damage to your set, do not use an electric drill to secure screws when mounting!
– Hold the unit horizontally when installing it, since the CD tray may
open if the unit is shaken.
– Use the cable manager to manage excess power cord length.
Template A
H L Spacer L (Low) L••H (4 heights) Arrow B
C
Use 1/4"
drill
DC VIDEO IN AUDIO R IN
L TV
ANT
Recommended depth of cabinet at the rear to allow for connections 2.5"
Mounting
template
