The OSD Controls

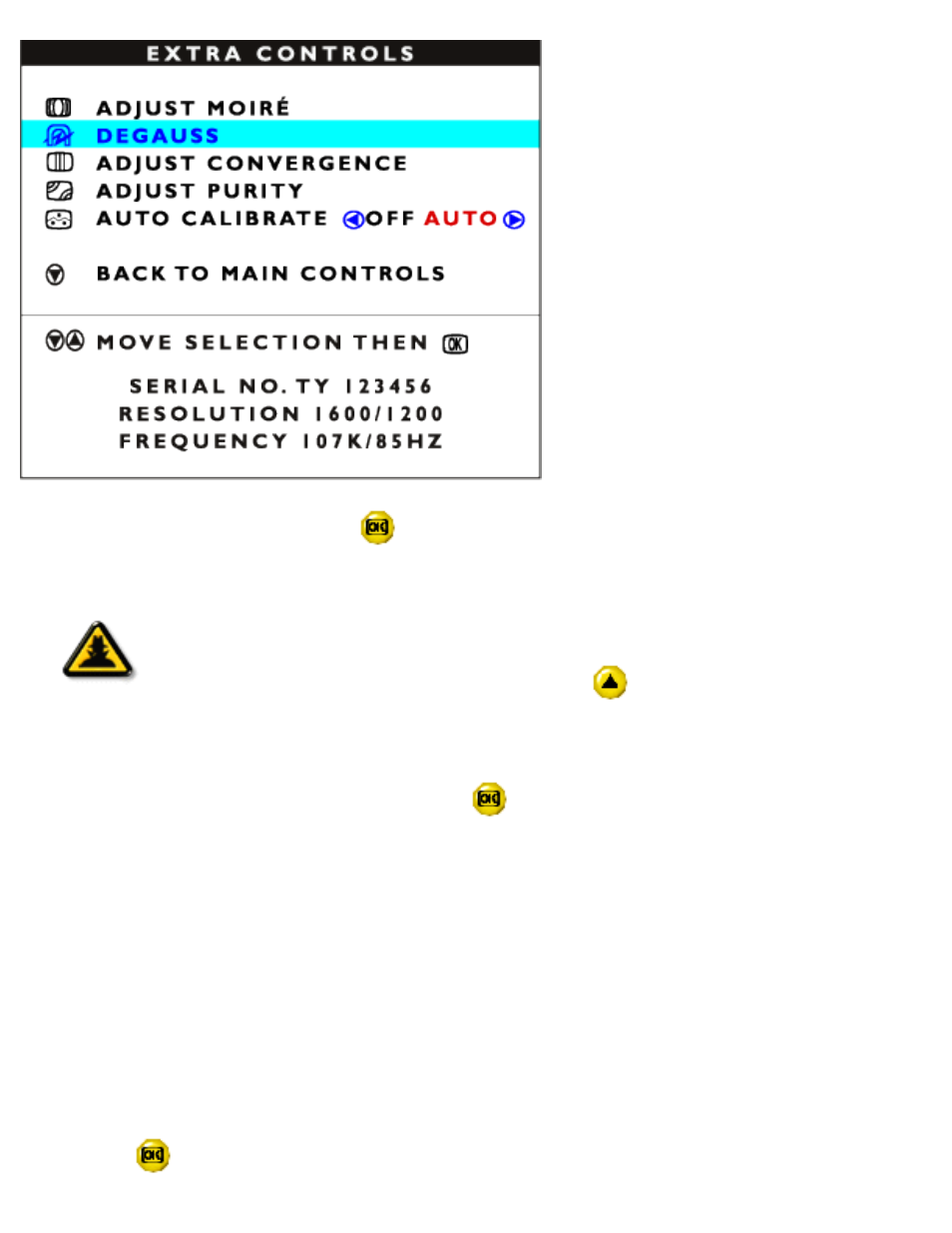

4) To degauss your screen, press the
button. Your screen will be degaussed, then the MAIN
CONTROLS window will reappear. CLOSE MAIN CONTROLS will be highlighted.
Smart Help
After returning to MAIN CONTROLS . . .
. . . to continue to ADJUST MOIRE, press the
button until EXTRA
CONTROLS is highlighted. Next, start with step 3 under EXTRA CONTROLS,
ADJUST MOIRE.
. . . to exit completely, press the
button.
ADJUST CONVERGENCE (Not available in all models)
EXTRA CONTROLS is a set of features, including ADJUST CONVERGENCE. Convergence is a
process by which a color is created by blending other colors. For example, white is created by
blending red, blue, and green. If these colors do not completely blend together (converge) then you
may see unwanted red, green, or blue lines or dots. To adjust the convergence, follow the steps
below. Note: Use only if necessary. Remember: you must degauss the monitor BEFORE adjusting
the convergence.
1) Press the
button on the monitor. The MAIN CONTROLS window appears.
