19

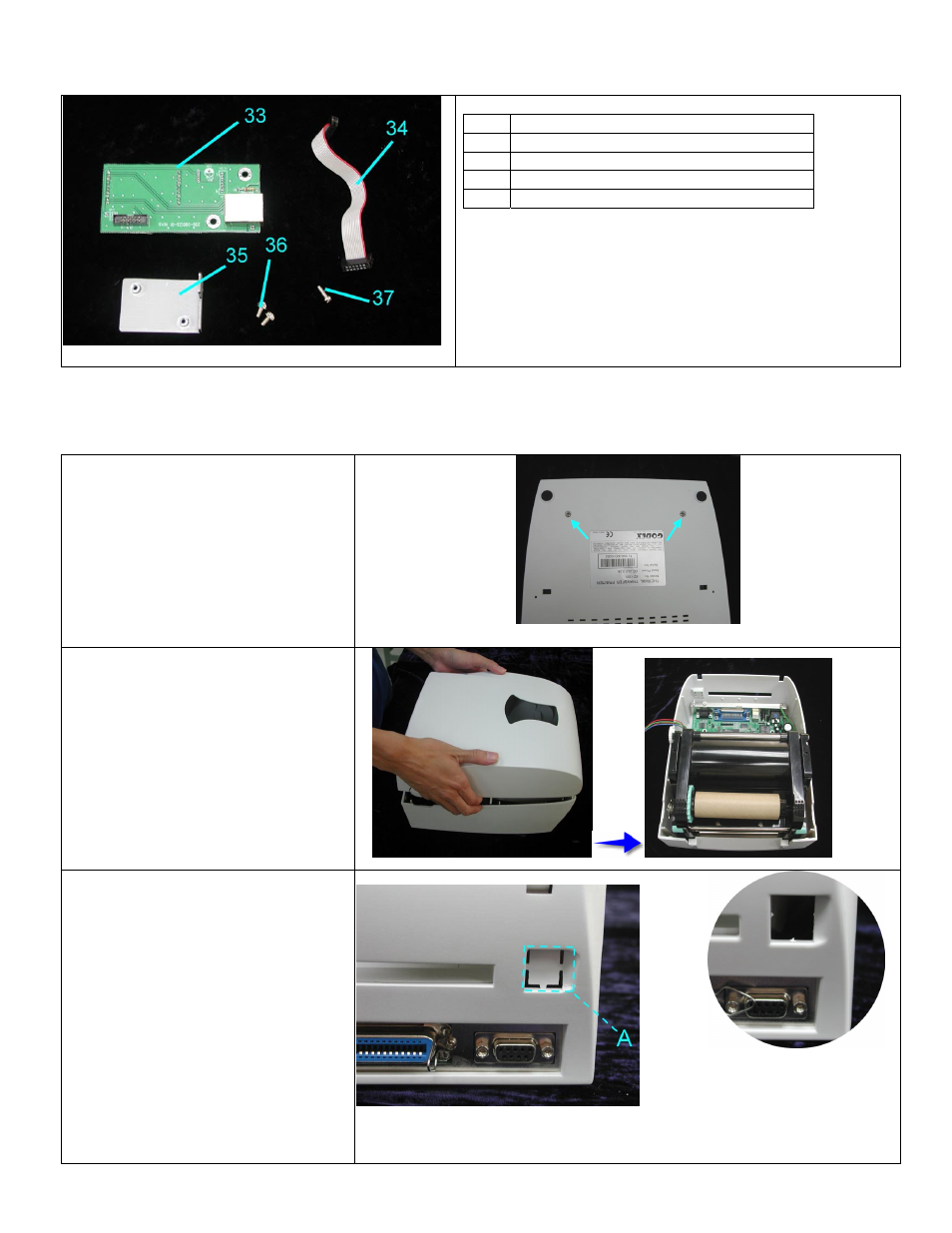

3-8. Ethernet Parts
33 Ethernet Module
34 Connector Cable
35 Network Board Stand
36 Screws (MACHINE 3x6) x 2
37 Screw (TAP 3x8) x 1
Please turn power off when assembling Ethernet
module.
3-9. Ethernet Installation
1. Remove screws at the bottom of the
printer (refer to arrows).
2. Facing the printer, exert force on two
sides of the printer and remove the
middle compartment.
3. Remove the spare opening (A) at the
back of the printer (refer
to Figure 1)
(Figure 1)
