Engine Briggs & Stratton Quantum XTS 45
Engine type 12F802-1325-01 (410) 12F802-1325-01 (411) 12F807-1324-01 (412)
Engine/Cutterbar speed 3000 rpm
Fuel type Unleaded petrol
Fuel capacity 1.5 litres
Oil type SAE 30 engine oil
Oil sump capacity 0.6 litres
Cutting width 410mm
Cutting height 13 - 60mm
Overall dimensions 1050 x 446 x 1375mm
Dry Weight 35 Kg (410) 36.5 Kg (411) 39.5 Kg (412)

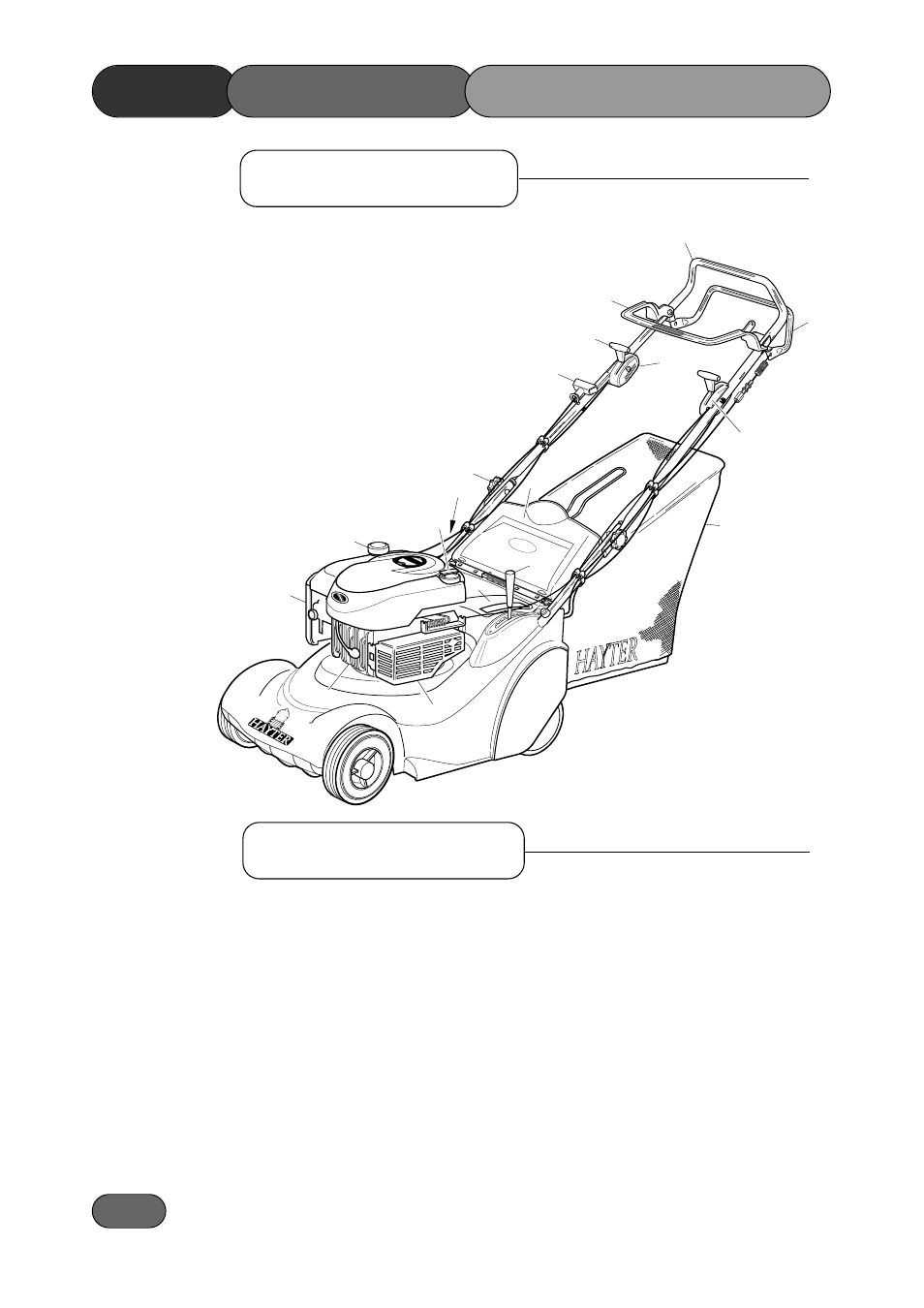

1 Air Cleaner
2 Fuel Filler Cap
3 Oil Filler Cap and Dipstick
4 Handlebar Securing Knob
5 Engine Start-Grip
6 Throttle Control.
7 Engine Stop lever.
8 Handlebar
9 Ground Drive Clutch Lever (411 & 412 Only)
10 Variable Speed Control (412 Only)
11 Grassbag Assembly
12 Height of Cut Adjuster
13 Serial No. Label
14 Exhaust Guard
15 Battery (412 Only)
16 Ignition Key (412 Only)
17 Rear Deflector
18 Spark Plug Lead
4
5
6
7
8
9
10
11
12
13
1
2
14
18
17
15
16
1C411A02
BRIGGS & STR ATTO N
H A RR IE R 41
3
Specifications
Main Features
MAIN FEATURES /SPECIFICATIONS
1.2
