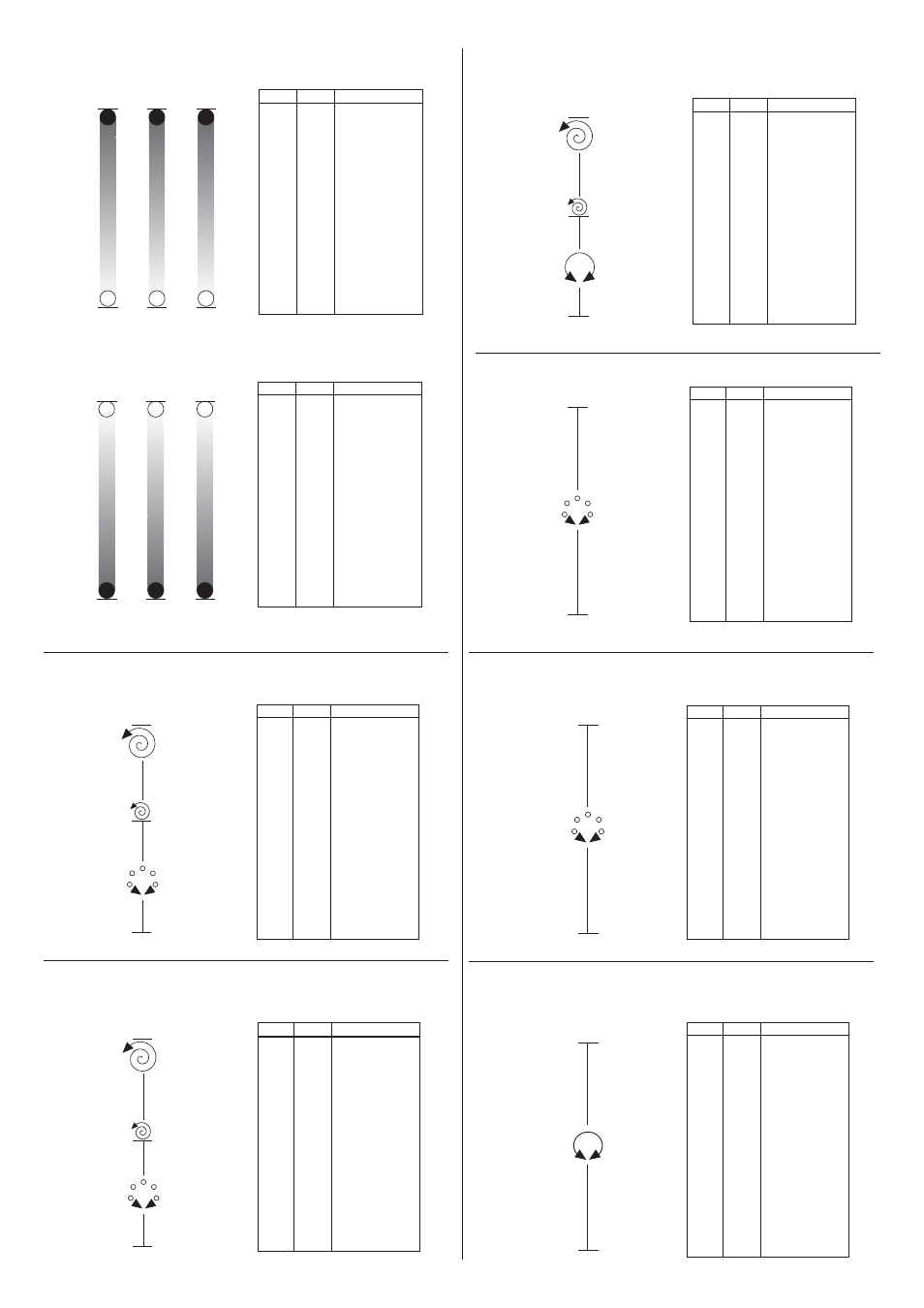

• COLOUR MIXING - channel 1 - 2 - 3
Operation with option CMY On
Operation with option CMY Off
Operation with option LinC Off FulC On Rain On
• COLOUR WHEEL 1 - channel 4
Operation with option LinC Off FulC Off Rain On
BIT % EFFECT
255 100 FAST ROTATION (167 rpm)
128
112 - 127
98 - 111
84 - 97
70 - 83
56 - 69
42 - 55
28 - 41
14 - 27
0 – 13
50.0
44.0 – 49.7
38.2 – 43.7
33.0 – 38.0
27.5 – 32.5
22.0 – 27.0
16.2 – 21.7
11.0 – 16.0
5.5 – 10.5
0.0 – 5.0
SLOW ROTATION (0.2 rpm)
BLUE
ORANGE
AQUAMARINE
GREEN
CTO 2500
CTO 3200
CTB
RED
WHITE
BIT % EFFECT
255 100 FAST ROTATION (167 rpm)
128
119-127
112-118
105-111
98-104
91-97
84-90
77-83
70-76
63-69
56-62
49-55
42-48
35-41
28-34
21-27
14-20
7-13
0-6
50.0
46.7-49.7
44.0-46.2
41.2-43.7
38.2-41.0
35.5-38.0
33.0-35.0
30.0-32.5
27.5-29.7
24.7-27.0
22.0-24.2
19.0-21.7
16.2-18.7
13.7-16.0
11.0-13.2
8.2-10.5
5.5-8.0
3.0-5.0
0.0-2.5
SLOW ROTATION (0.2 rpm)
BLUE + WHITE
BLUE
ORANGE + BLUE
ORANGE
AQUAMARINE + ORANGE
AQUAMARINE
GREEN + AQUAMARINE
GREEN
CTO 2500 + GREEN
CTO 2500
CTO 3200 + CTO 2500
CTO 3200
CTB + CTO 3200
CTB
RED + CTB
RED
WHITE + RED
WHITE
Operation with option LinC On Rain On
255 100 FAST ROTATION (167 rpm)
WHITE
SLOW ROTATION (0.2 rpm) 50.0
0.0
BLUE + WHITE 49.7
BIT % EFFECT
128
0
127
Operation with option LinC Off FulC Off Rain Off
BIT % EFFECT
238-255
224-237
210-223
196-209
182-195
168-181
154-167
140-153
126-139
112-125
98-111
84-97
70-83
56-69
42-55
28-41
14-27
0-14
93.2-100
88.0-93.0
82.5-87.5
76.7-82.0
71.2-76.2
66.0-71.0
60.5-65.5
54.7-60.0
49.5-54.2
44.0-49.0
38.2-43.7
33.0-38.0
27.5-32.5
22.0-27.0
16.2-21.7
11.0-16.0
5.5-10.5
0.0-5.0
BLUE + WHITE
BLUE
ORANGE + BLUE
ORANGE
AQUAMARINE+ ORANGE
AQUAMARINE
GREEN + AQUAMARINE
GREEN
CTO 2500 + GREEN
CTO 2500
CTO 3200 + CTO 2500
CTO 3200
CTB + CTO 3200
CTB
RED + CTB
RED
WHITE + RED
WHITE
Operation with option LinC Off FulC On Rain Off
BIT % EFFECT
224-255
196-223
168-195
140-167
112-139
84-111
56-83
28-55
0-27
88.0-100
76.7-87.5
66.0-76.2
54.7-65.5
44.0-54.2
33.0-43.7
22.0-32.5
11.0-21.7
0.0-10.5
BLUE
ORANGE
AQUAMARINE
GREEN
CTO 2500
CTO 3200
CTB
RED
WHITE
Operation with option LinC On Rain Off
BIT % EFFECT
255
0
100
0.0
BLUE + WHITE
WHITE
