Philips 32PFL3403D-27 User Manual

Page 9

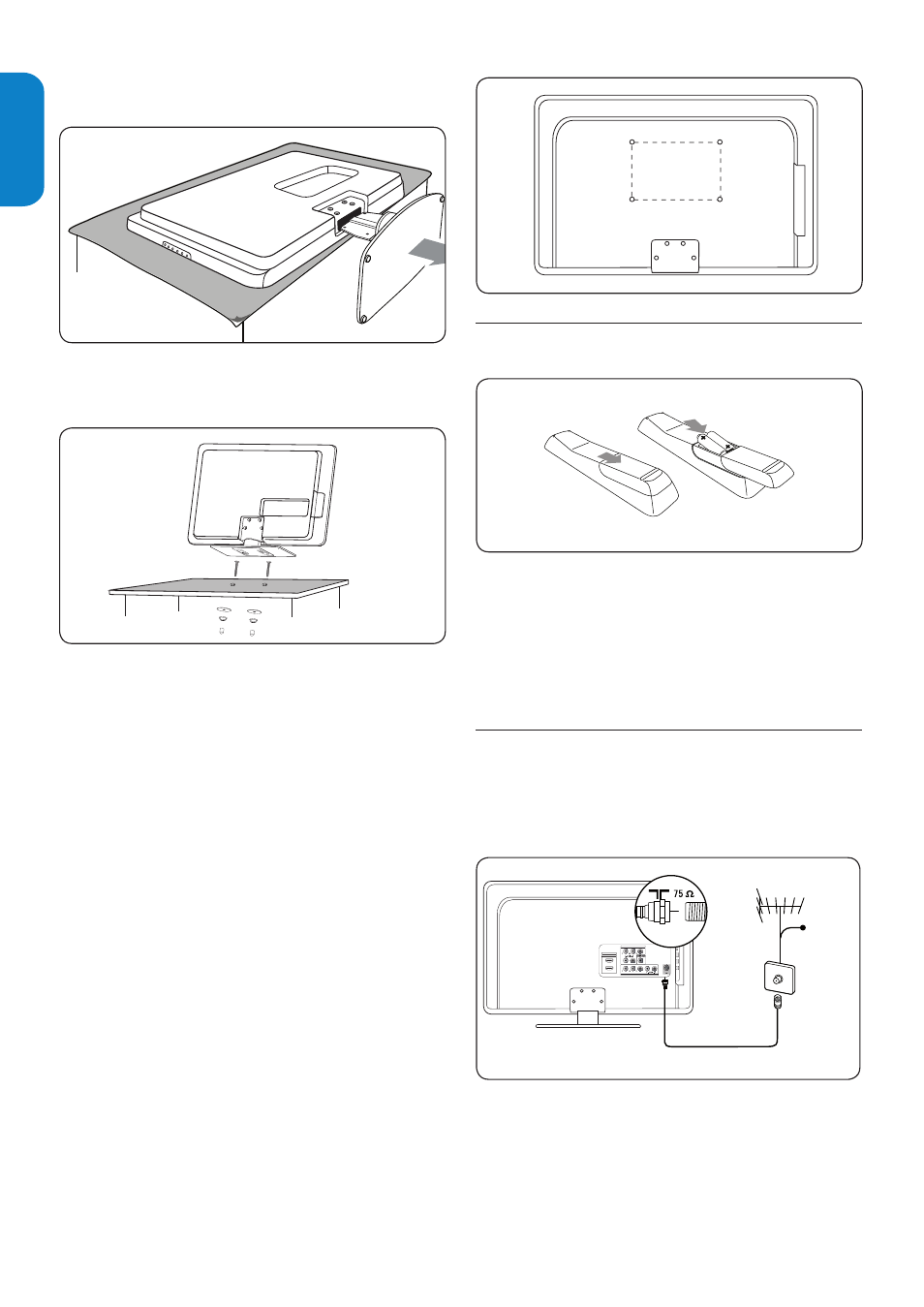

background image

EN-8

ENGLISH

FRANÇAISE

ESP

AÑOL

Install the remote control

4.3

batteries

A A

A

A A

A

Open the battery cover on the back of the

1.

remote control.
Insert the 2 batteries supplied. Make sure the

2.

+ and - ends of the batteries line up correctly.

(inside of case is marked).
Close the cover.

3.

Connect the antenna or cable

4.4

This section describes how to connect your TV to

an antenna, cable, Direct Broadcast Satellite, and to a

cable receiver box.

AV 1

75 Ω

HDMI 1

HDMI 2 / PC IN

AV 2

AV 1

75 Ω

HDMI 1

HDMI 2 / PC IN

AV 2

AV 1

75 Ω

HDMI 1

HDMI 2 / PC IN

AV 2

AV 1

75 Ω

HDMI 1

HDMI 2 / PC IN

AV 2

SATELLITE

CABLE

OR

Cable Receiver

Box

OR

CABLE

AV 1

75 Ω

HDMI 1

HDMI 2 / PC IN

AV 2

Cable Receiver Box

OR

OR

ANTENNA

SATELLITE

CABLE

Connect to an antenna
Any DTV programs that are broadcast in your

area can be received for free through an antenna

connection.

Firmly pull the stand from the bottom of the

3.

TV. Place both the stand and bolts in a secure

location for future reinstallation.

For 32HFL3330D/27, security screws are provided to

secure the LCDTV stand to the table top.

Step 3 Connect cables

Connect the antenna cable, AC power cord and all

other devices to the back of the TV as described in

the following sections and in Section 8 Connect devices.

Step 4 Secure the VESA-compatible wall

bracket to the TV

Warning

B

Only use the specified bolts (M6 x 10mm)

to secure the VESA-compatible wall

bracket to your TV. The specified bolts are

designed to match the weight of your TV.

Note

D

Depending on your VESA-compatible wall

bracket, you may need to separate the mounting

plate from the wall bracket for easier installation.

Refer to your VESA-compatible wall bracket

documentation for instructions.
