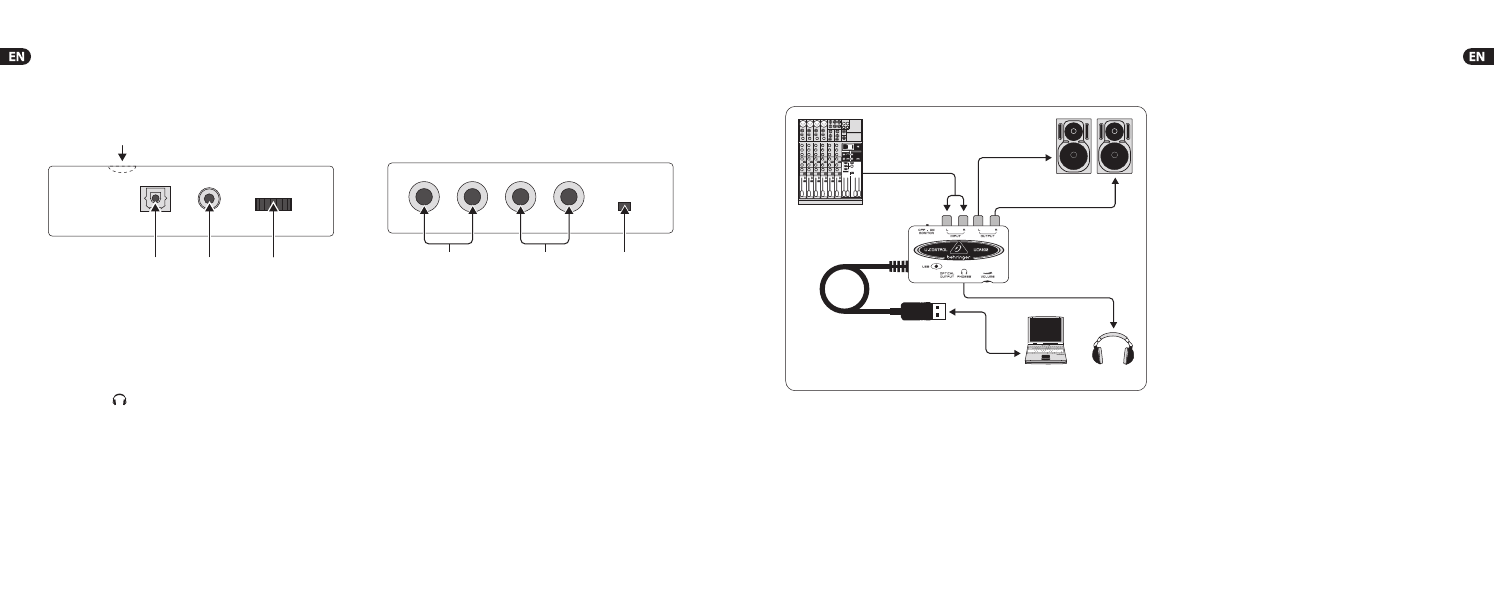

3. Operating Elements

and Connections

3.1 Front panel

LED

(1)

(2)

(3)

(4)

Fig. 3.1: Front panel UCA202

(1)

The LED indicates the status of the USB power supply.

(2)

DIGITAL OUTPUT: The Toslink jack carries an S/PDIF signal

which can be connected via a fiber optic cable, for example,

to the digital input of an effects device.

(3)

Use the jack to connect a standard pair of headphones

equipped with a �" TRS connector.

(4)

The VOLUME control adjusts the volume level of the

headphones output. Turn the control fully to the left before

you connect the headphones. This helps you avoid the

damage that is caused by high volume settings.

3.2 Rear panel

(5)

(6)

(7)

Fig. 3.2: Back of the UCA202

(5)

Use the LINE-OUT jacks for audio cables with RCA connectors.

(6)

Use the LINE-IN jacks for audio cables with RCA connectors.

(7)

The OFF/ON-MONITOR switch activates the monitor

function. In this case the input signal is routed directly to the

headphones output.

4. Working with the UCA202

4.1 Application example

HPS3000

Laptop

XENYX1204FX

TRUTH

B2031A

U-CONTROL

UCA202

Fig. 4.1: Common version with the UCA202
