12 Hookups (cont’d)

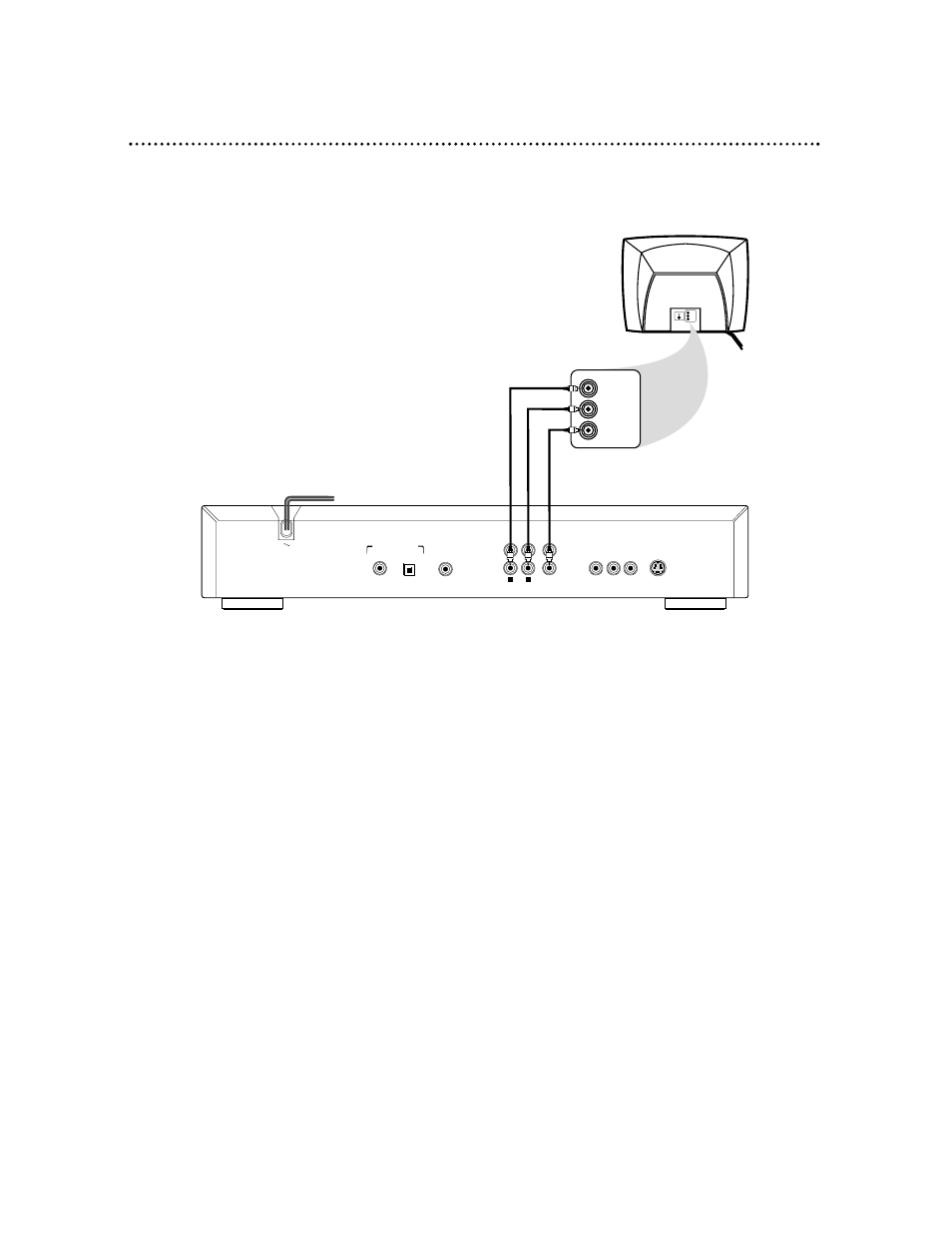

Connecting to a TV Only
TV has a single (CVBS) Video In jack
Back of TV
(example only)
COAXIAL
DIGITAL AUDIO OUT
PCM-MPEG2-Dolby Digital-DTS
L R (CVBS)
VIDEO OUT AUDIO OUT S-VIDEO OUT
(Y/C)
SUB WF OUT OPT OUT
1
2
1
2
Y P B /C B P R /C R
VIDEO OUT
L
LEFT AUDIO IN
RIGHT AUDIO IN
VIDEO IN
LEFT AUDIO IN RIGHT AUDIO IN
VIDEO IN
1 2
1
Connect the yellow (CVBS) VIDEO OUT jack of the DVD
Player to the corresponding VIDEO IN jack on your TV.
Use the supplied yellow video cable.
2
Connect the supplied red and white audio cables to one
set of the Left and Right AUDIO OUT jacks on the DVD
Player. Connect the other end of the cables to the
left/right AUDIO IN jacks on the TV. Match the cable colors
to the jack colors.
3
Connect the power cords of the DVD Player and the TV
to the power outlet. Turn on the power of the TV and the
DVD Player.
4
Set the TV to the correct Audio/Video In channel. Such
channels may be called AUX or AUXILIARY IN,
AUDIO/VIDEO or A/V IN, EXT1 or EXT2, etc. These channels
often are near channel 00. See your TV owner’s manual for
details. Or, continue to change channels at the TV until you
see the DVD Player’s screen saver on the TV screen.
