IMPORTANT INFORMATION
••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
MVM Instructions |
Page 1
IMPORTANT INFORMATION
Please read instructions completely before installing this Bracketron MVM Mount. All instructions are written from the drivers
seat vantage point looking forward at the vehicles dash. We advise caution whenever you are removing or handling plastic
parts of a vehicles dash. WARNING: Unnecessary force or pressure can cause pieces to crack or break.
PARTS INCLUDED: MVM-35-05 Mount, 3 - #8x3/4” Self Tapping Screws, PHS-203 Ultra Slim Swivel and Hardware.
TOOLS NEEDED FOR MVM MODIFICATION (if required)
4 inch Mounted Bench Vise
12 oz. Ball Pein Hammer
Standard Tin Snips
Small File
TOOLS NEEDED FOR DASH PANEL DISASSEMBLY
Audi Radio Removal Tool (Part #SIT-102)
Dash Trim Tool (Part #SIT-104)
5/16” socket and driver
# 2 Phillips Screwdriver
9/32” Open End Wrench (for swivel)
Marking Pen
DASH DISASSEMBLY INSTRUCTION
••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••

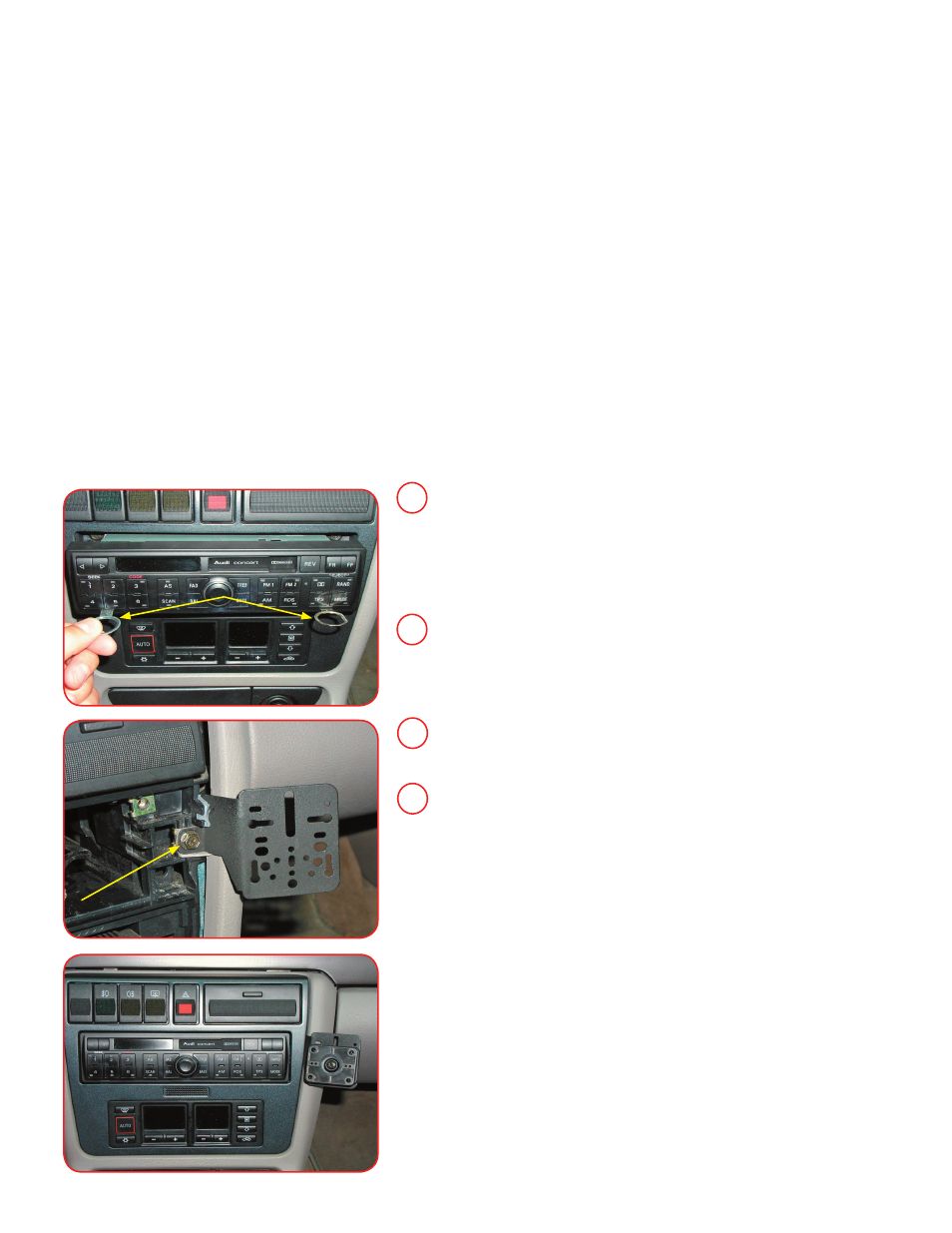

Remove the radio by inserting the Audi Radio Removal Tools (Part #SIT-
102). Slide radio out just far enough to gain access to the trim bezel that
surrounds the radio. Locate and remove the two 5/16” hex head screws
near the right and left sides of the radio cavity near the top. Set screws
aside. Use the Dash Trim Tool (Part # SIT-104) to remove this bezel from
the clips that secure it. Pull bezel and radio out, but DO NOT DISCON-
NECT THE WIRING.
Locate and remove one more 5/16” hex head screw from the right side
of the radio cavity. Set screw aside in a safe place. Skip to Step 5 on
the following page if you have not yet formed the bracket to fit your
vehicle.
Place the Multi Vehicle Mount over screw hole insert the original 5/16”
screw down the Multi Vehicle Mount.
Carefully reinstall the dash in reverse order securing all screws and clips
to the bezel. Install the included Ultra Slim Swivel #PHS-203 to your Multi
Vehicle Mount or any other AMPs compatible device.
Your installation is complete
Install Mount Here
1
2
3
4
Note: The hole pattern on the face of the MVM maybe
different then what is shown in the pictures.
Radio Removal Tools
