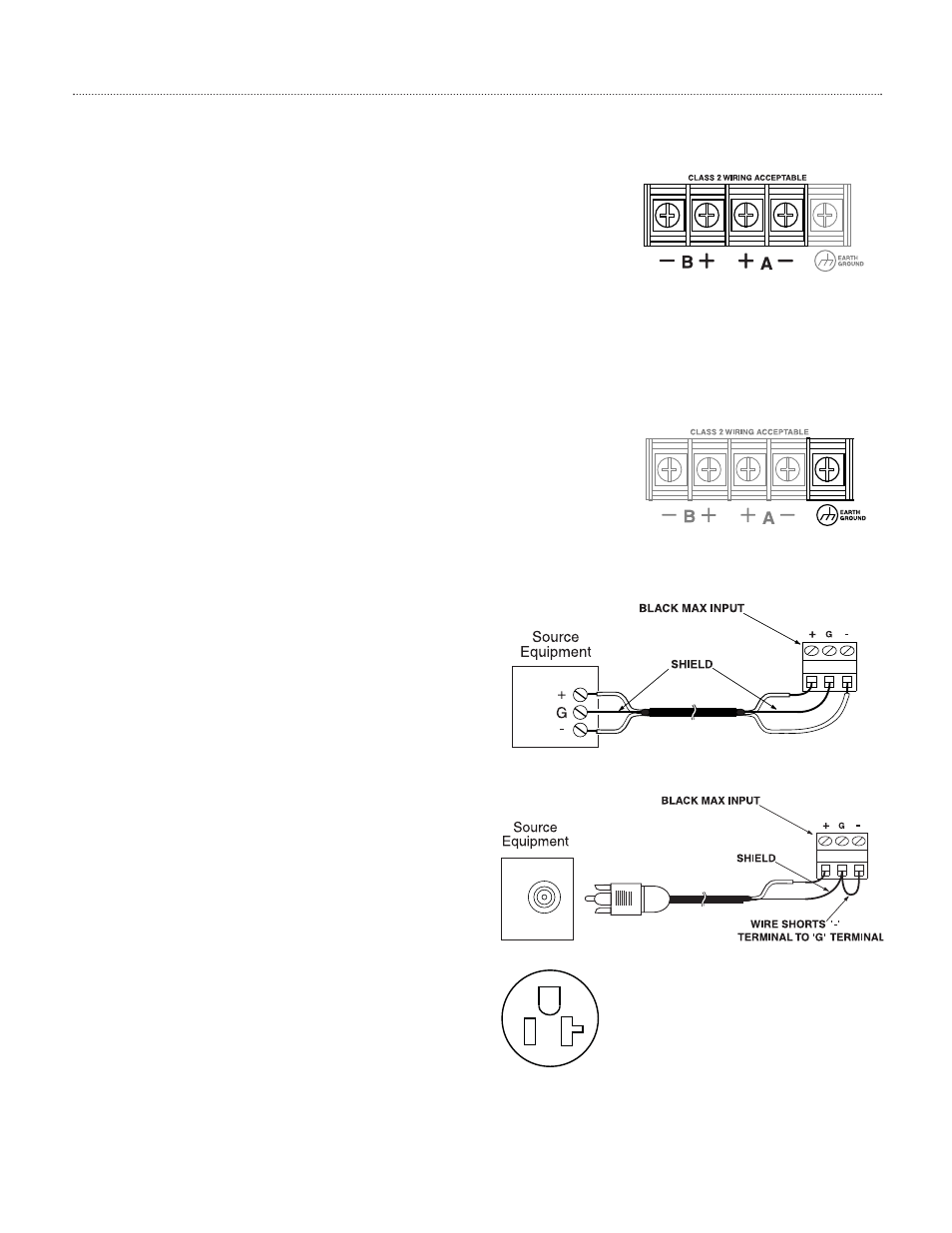

Connections

Speakers

70V "Transformer-Coupled" Speakers

The Black Max series was designed to drive only 70V constant voltage
type speaker loads. The use of low-impedance speakers may cause the
amplifier to engage its protection circuits and shut down or limit amplifier
function. The speaker terminals can accept up to a #10 AWG wire or
spade lug and have integral clamping plates which make wiring easier. The
polarity of each set of speaker outputs (A & B) is indicated with a "+"
and "-" sign. Use these indicators to ensure that the phasing of the
speakers are correct. Do not ground the "+" output of either set of
outputs. Doing so will cause the amplifier to go into protect mode,
shutting down operation of the affected channel.

Note: The "+" and "-" indicators are mirrored on "A" and "B" outputs.
Be sure to make the correct connections.

Earth Ground Terminal

The earth ground terminal is provided as a convenient means to con-
nect to the amplifier’s chassis/AC ground, if necessary. DO NOT con-
nect the earth ground terminal to the "+" terminals of either output. No
damage will occur if this is done, but the amplifier will go into protect
mode and shut down the affected channel.

Inputs

Balanced Input Connections

Balanced input connections are used when the
source device provides a balanced output (signal
"+", signal "-", and ground "G"). This type of connec-
tion is desirable when operating in electrically noisy
environments, where long input cable runs are
needed, or to ensure the lowest noise operation. If
compatible with the source device, this type of con-
nection is recommended.

Unbalanced Input Connections

When the source device provides only an unbal-
anced output (signal and ground), the input should
be wired with "-" input shorted to ground ("G"). The
unbalanced signal's shield wire is connected to
ground and the signal hot wire is connected to the
"+" terminal. Since unbalanced connections do not
provide the same amount of noise immunity that a
balanced connection does, the connection distances
should be made as short as possible.

AC Power

20A AC Receptacle

The X600 line cord requires a 20A, 125V AC power
receptacle because its maximum current require-
ments exceed the capacity of a typical 15A recepta-
cle. The 20A receptacle is a NEMA 5-20R style.
