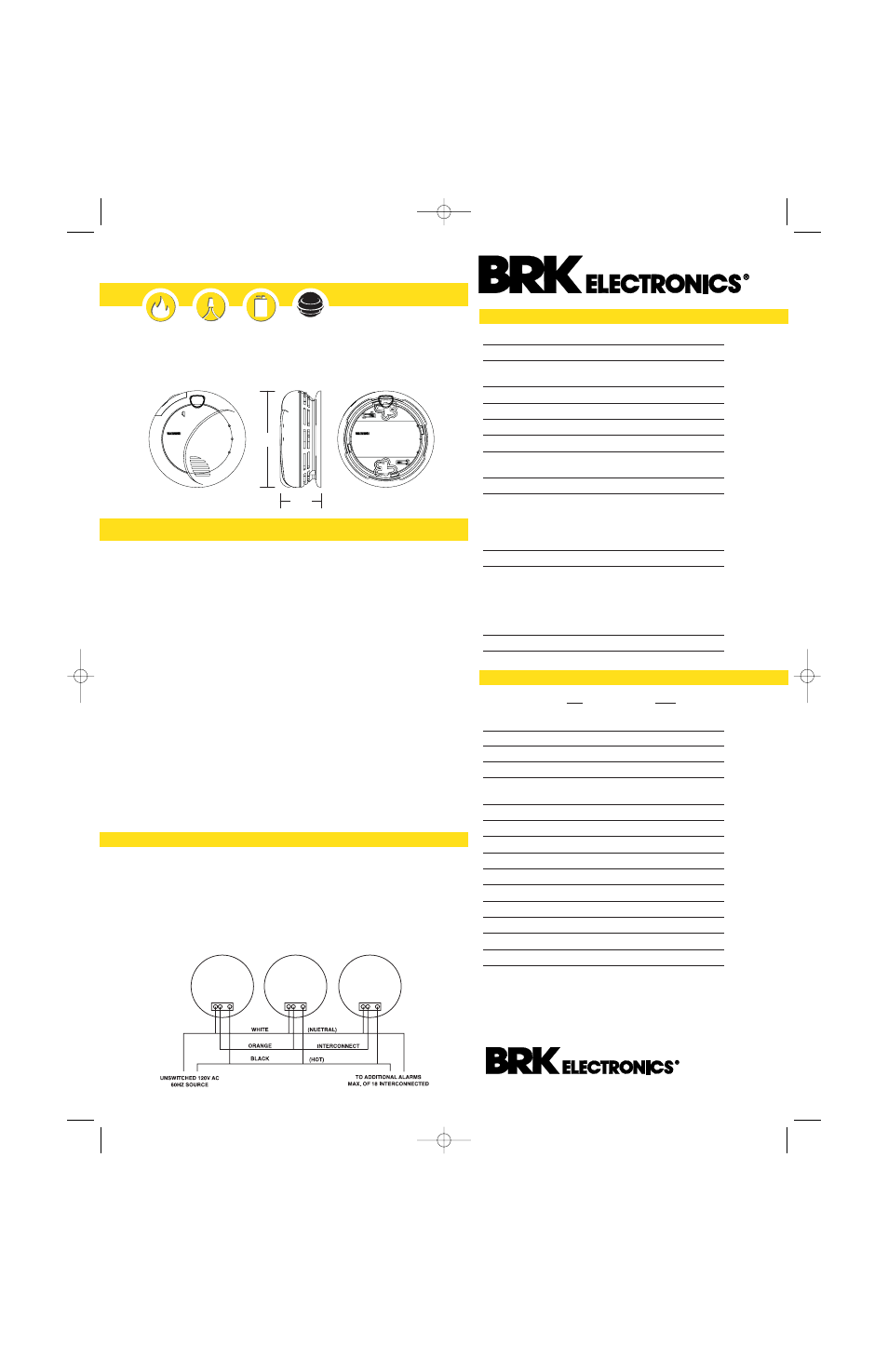

A R C H I T E C T U R A L A N D
E N G I N E E R I N G S P E C I F I C A T I O N :
1. A photoelectric sensing chamber.
2. The unit shall be capable of self restoring.
3. A fully screened sensing chamber to prevent entry of small insects
thereby reducing the probability of unwanted alarms.
4. Powered by 120V AC, 60Hz and have a monitored 9V battery
backup (7010B only) and a solid state piezo horn rated at 85dB at
10 ft.
5. A visual LED (green) power-on indicator to confirm unit is receiving
power. A visual LED (red) power-on indicator to confirm unit has
switched to battery backup mode for 7010B only.
6. A single button test/silence feature. Test button should check all
alarm functions by simulating a smoke condition, causing the unit to
alarm. The silence feature to temporarily silence unwanted alarms.
7. The unit shall be capable of operating between 40F (4C) and 100F
(38C) and relative humidity between 10% and 90%.
8. The unit shall center mount to any standard electrical junction box
up to 4” size without screw removal and shall be listed for wall or
ceiling mounting.
9. The unit shall have an optional locking mechanism to deter battery
(7010B only) and/or theft of the unit.
10. The unit shall have a dust cover to keep alarm clean during construction.
11. Features a quick-connect wiring harness and be capable of
interconnecting up to 18 devices, 12 of which can be smoke alarms.
12. The unit shall at a minimum meet the requirements of UL217, CSFM,
NFPA 72, NFPA 101, ICBO, BOCA, SBCCI and CABO.
I N S T A L L A T I O N O F S M O K E A L A R M
Installation of this smoke alarm must conform to all local electrical codes
and Article 760 of the National Electrical Code (NFPA 70) and NFPA 72.
Interconnected units must meet the following requirements: Total
length of wire interconnecting units should be less than 1000 feet, be
#18 gauge or larger and be rated at least 300V. It is recommended that
all units be on the same fuse or circuit breaker. If local codes do not
permit, be sure the neutral wire is common to both phases. Only those
BRK Electronics
® catalog numbers listed in the “Technical Specs” section
under “Interconnection” may be connected to these smoke alarms.
T E C H N I C A L S P E C S :
Alarm Dimensions 5.0” dia x 2.1”H
Weight 6.7 oz. (7010) 8.4 oz. (7010B)
Operating Voltage 120V AC
9V battery backup (7010B only)
Operating Current .045 amps (standby/alarm)
Temperature Range 40˚F (4˚C) to 100˚F (38˚C)
Humidity Range 10% to 90% relative humidity (RH)
Audio Alarm 85dB at 10 feet
Test Button Electronically simulates the smoke
condition, causing the unit to alarm.
Alarm Reset Automatic when smoke clears
Interconnections Up to 18 units with Cat. Nos. 100S,
2002RAC, 4120, 4120AB, 4120B,
4120SAB, 4120SB, 7010, 7010B, 5919,
HD6135FB and RM3.
Maximum of 12 smoke alarms.
Sensor Photoelectric
Indicator LEDs AC Power: Constant Green LED
DC Power (7010B only): Intermittent
Red LED
Local Alarm: Red LED flashes rapidly
Remote Alarm: Red LED off
Listing UL 217
S H I P P I N G S P E C S :
7010 7010B
Individual Carton 5.13”L x 2.38”W 5.13”L x 2.38”W
Dimensions x 5.13”H x 5.13”H
Weight .45 lbs. .55 lbs.
Cube .04 ft 3 .04 ft 3
UPC 0 29054 11200 2 0 29054 11201 9
Master Carton 10.75”L x 7.88”W 10.75”L x 7.88”W
Dimensions x 11.06”H x 11.06”H
Master Pack 12 12
Weight 5.875 lbs. 7.075 lbs.
Cube .54 ft 3 .54 ft 3
UPC 100 29054 11200 9 100 29054 11201 6
Pallet Information
Cases per Layer 22 22
Number of Layers 4 4
Cases per Pallet 88 88
Cube 54.04 ft 3 54.04 ft 3
Weight 572 lbs. 677.6 lbs.
CAT.
7010/7010B
©2004 BRK Brands, Inc.,
CM2459
Manufactured By:
BRK Brands, Inc.
3901 Liberty Street Road
Aurora, IL 60504-8122
www.brkelectronics.com
BRK ELECTRONICS ® is a registered
trademark of BRK Brands, Inc.
120V AC/DC, 60Hz Wire-in
with 9 V Battery Back-up (7010B only)
360
OptiPath 360
Technology
™
5.0"
TOP VIEW SIDE VIEW
MOUNTING
BRACKET
2.1"
