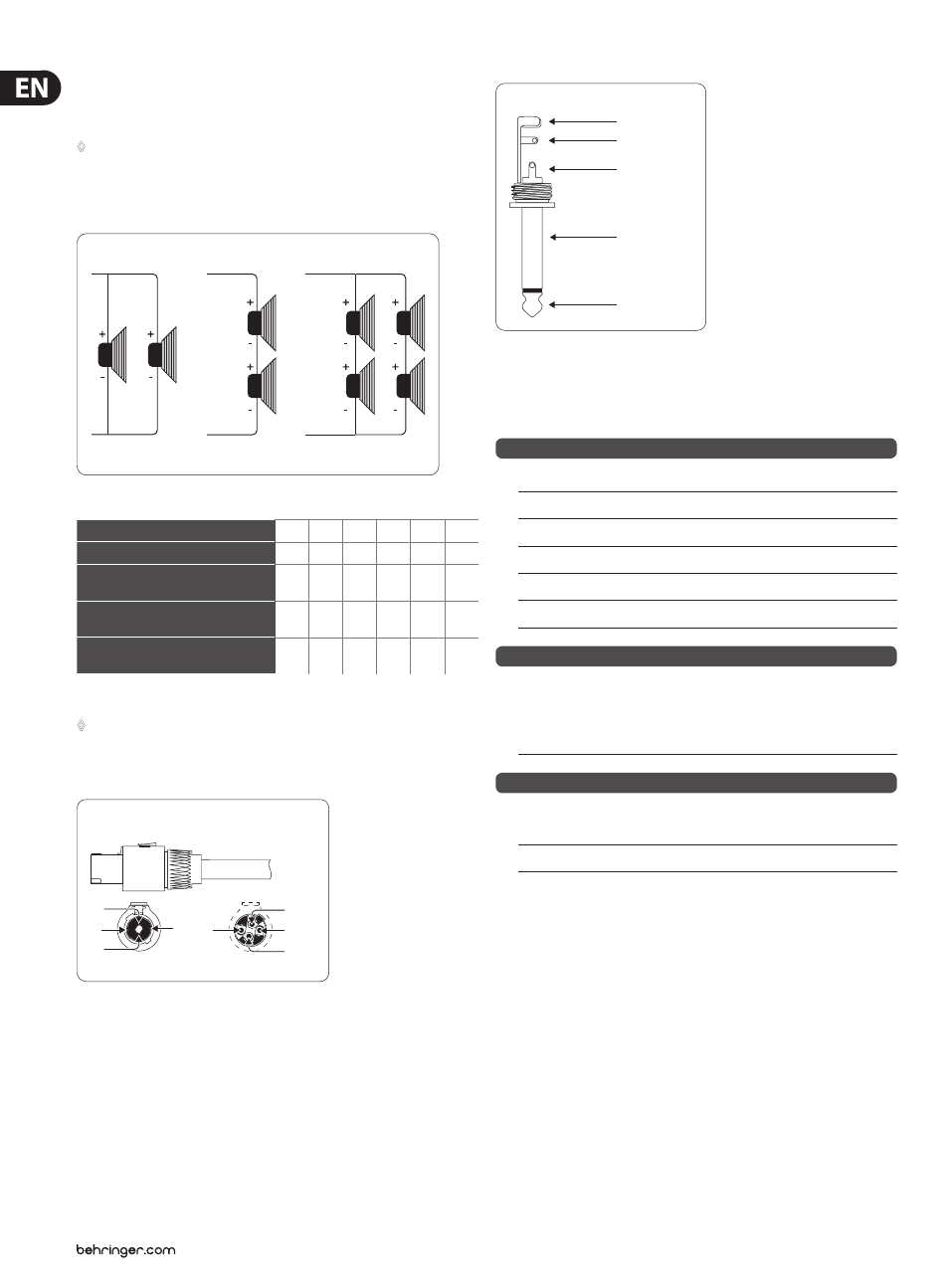

8 ULTRABASS BB410 User Manual
If four or more speakers/cabinets need to be connected, this can be done using
a serial parallel connection. With four speakers with an impedance value of
4 Ohms each, the resulting overall impedance does not change.
◊ Whenever possible, try to use thick and short speaker cables to
minimize power loss. Don’t lay output cables near input cables.
Wiring options for loudspeakers are additionally explained in the following
illustrations and tables.
Speaker wiring options
Parallel Series Parallel/series
Fig. 4.1: Different types of connections
Number of speackers 2x 2x 2x 4x 4x 4x
Impedance of each speaker (Ω) 4 8 16 4 8 16
Resulting impedance with parallel
connection (Ω)
2 4 8 1 2 4
Resulting impedance with serial
connection (Ω)
8 16 32 16 32 64
Resulting impedance with serial parallel
connection (Ω)
— — — 4 8 16
Table 4.1: Speaker wiring options and resulting impedance
◊ Please note that if the LINK connector is utilized, the BA and BB series
bass cabinets only support parallel connections.
4.2 Audio connections
1- 2-
2+
1+
1- 2-
2+
1+
front view rear view
Professional speaker connector
(compatible with Neutrik Speakon connectors)
Fig. 4.2: Professional speaker connector with polarity allocation
strain relief clamp
sleeve
tip
sleeve
(ground/shield)
Unbalanced ¼" TS connector
tip
(signal)
Fig. 4.3: 1/4" TS connector
5. Specifications
Speakers
High-power bass speakers 4 x 10" BUGERA
Sensitivity 99 dB @ 1 W / 1 m
Impedance 4 Ohm
Frequency response 38 Hz - 16 kHz
Power (RMS / Music) 1,200 W
Tweeter 1" tweeter driver
Speaker Connections
Input/Link 2 professional speaker connectors,
compatible with NEUTRIK SPEAKON
(wired in parallel) as well as one
1/4" TS connector
Dimensions/Weight
Dimensions (W x H x D) 25 4/5 x 28 1/5 x 16"
655 x 716 x 407 mm
Weight ca. 100.2 lbs / 45.4 kg
BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts,
modifications may be made from time to time to existing products without prior notice. Specifications and
appearance may differ from those listed or illustrated.
