30

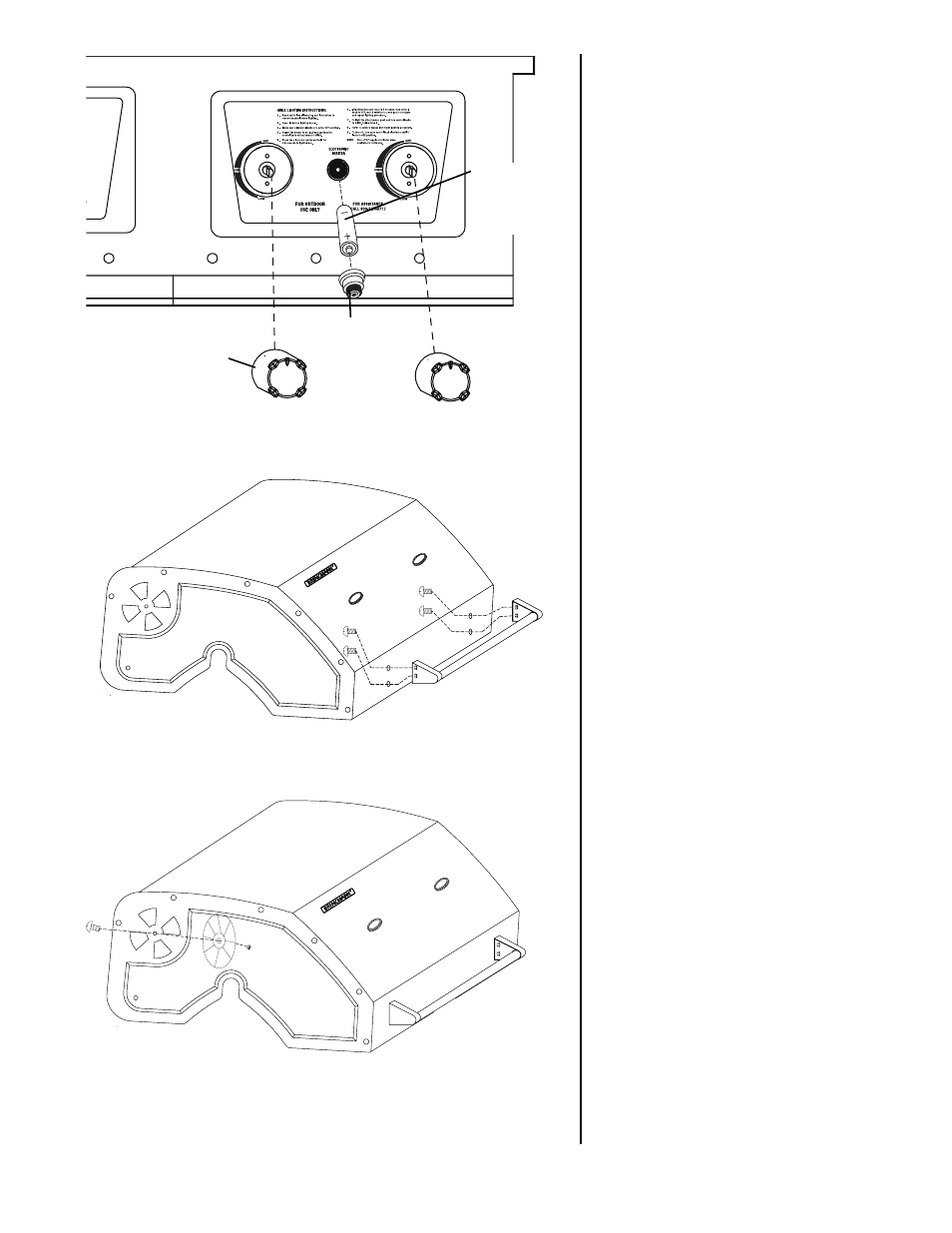

Step 12
Place control knobs on the control
panel. Remove igniter cap and
insert battery with positive end of
battery toward igniter cap. Ensure
spring is in place inside igniter
cap. Replace igniter cap and
make sure the igniter is working
properly.
Step 13
Attach one handle stand using
two M6 X 12mm bolts and two
M6 nuts. Next insert hood handle
into handle stand. Place the other
handle stand over handle and
attach by using two M6 X 12mm
bolts and two M6 nuts.
Step 14
Attach air vent dampers to the
inside of lid. Place air vent dampers
on the inside of the unit with the
adjustment tab sticking through one
of the air vent holes. Using
M6 X 12mm bolt and M6 nut,
secure vent cover to the unit. Do
not over tighten the nut as this will
make the vent difficult to open and
close. Repeat for other air vent
damper.
Igniter Cap
Control
Knobs
AA/1.5V
Alkaline
Battery
