Right Angle AGP Connectors
© Meritec AGP 0900 10M

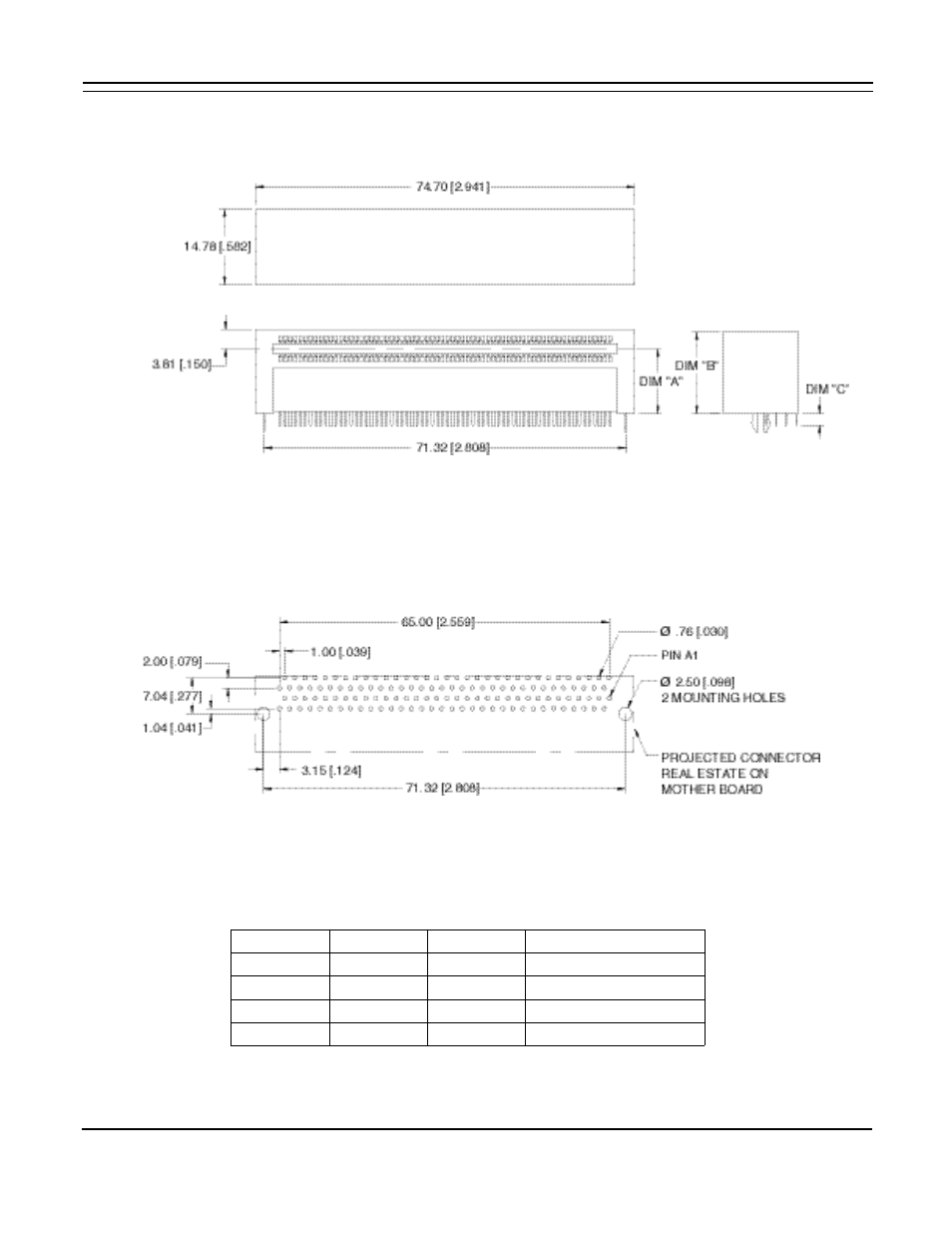

LAYOUT DRAWING ILLUSTRATED: RIGHT ANGLE UNIVERSAL AGP CONNECTOR
RECOMMENDED MOUNTING HOLE PATTERNS
PER AGP SPECIFICATIONS, REV. 2.0
UNIVERSAL CONNECTORS
UNIVERSAL RIGHT ANGLE AGP CONNECTOR
DIM "A"
DIM "B"
DIM "C"
PART NUMBERS
10.16 [.400]
13.97 [.550]
2.54 [.100]
980933-124-2MCF
10.16 [.400]
13.97 [.550]
3.17 [.125]
980934-124-2MCF
16.51 [.650]
20.32 [.800]
2.54 [.100]
980935-124-2MCF
16.51 [.650]
20.32 [.800]
3.17 [.125]
980936-124-2MCF
Dimensions in mm, [ ] = inches
