Using ESP Manager
Manual Documentation Number: ESR90x-0508m
Chapter 4
23
B&B Electronics Mfg Co Inc – 707 Dayton Rd - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics Ltd – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
C
C
h
h
a
a
p
p
t
t
e
e
r
r
4
4
:
:
U
U
S
S
I
I
N
N
G
G
E
E
S
S
P
P
M
M
A
A
N
N
A
A
G
G
E
E
R
R
The
ESP Manager
software allows:
• Searching for servers connected to the network
• Displaying and changing the configuration of those servers
• Installing virtual COM ports on a computer
• Displaying and configuring virtual COM ports
• Uninstalling virtual COM ports on a computer
• Upgrading the Serial Server firmware
• Monitoring Port Status
• Saving and Loading Configuration Files
Hardware Setup
Step 1:
Connect the Serial Server to the LAN or to a computer Ethernet
port. Set the Run/Console DIP switch on the Serial Server to the
Run position
LAN
Ethernet
cable
Ethernet
cable
RS-232
cable
Serial Device
ESR902
PC

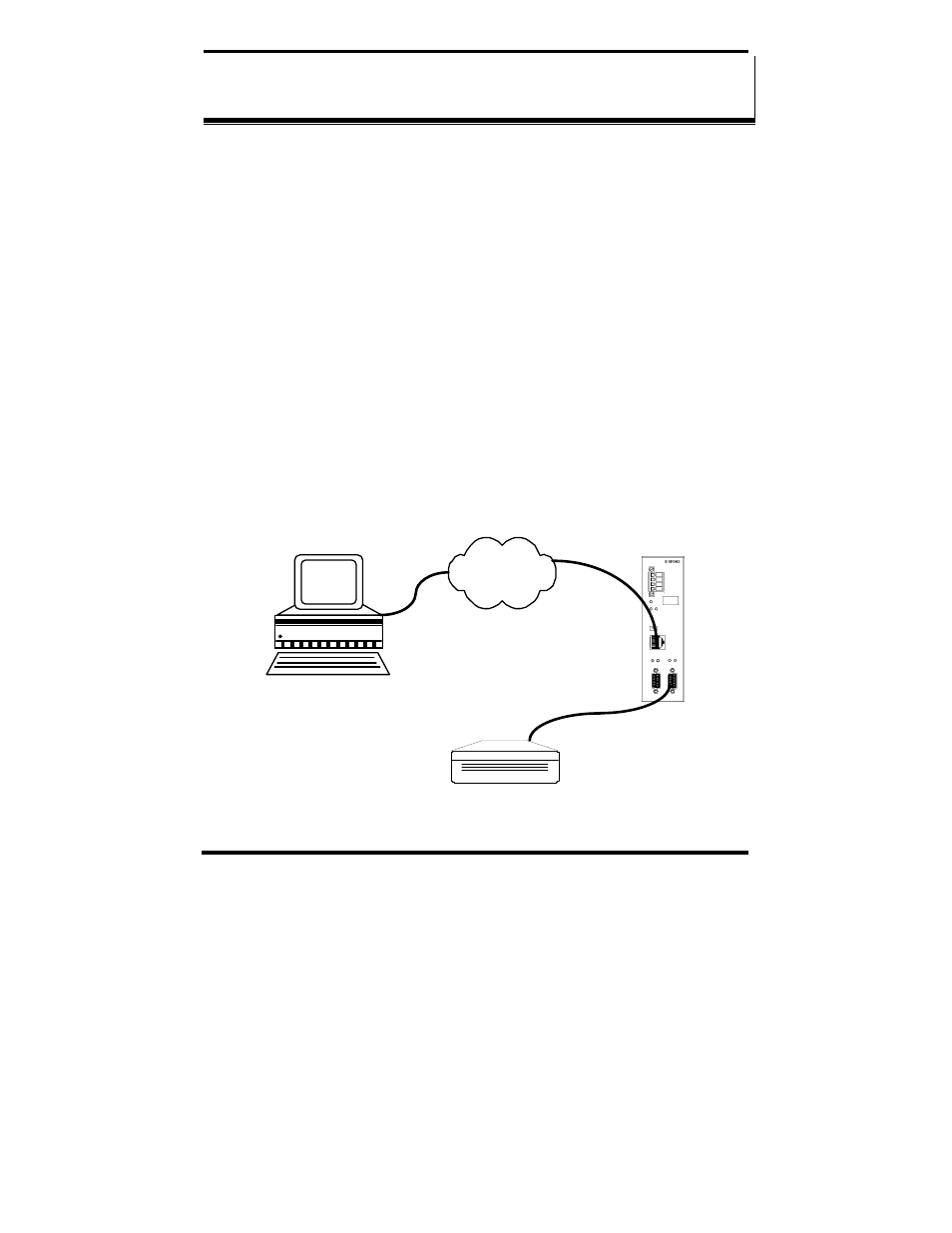

Figure 19. Ethernet Connection via a LAN
