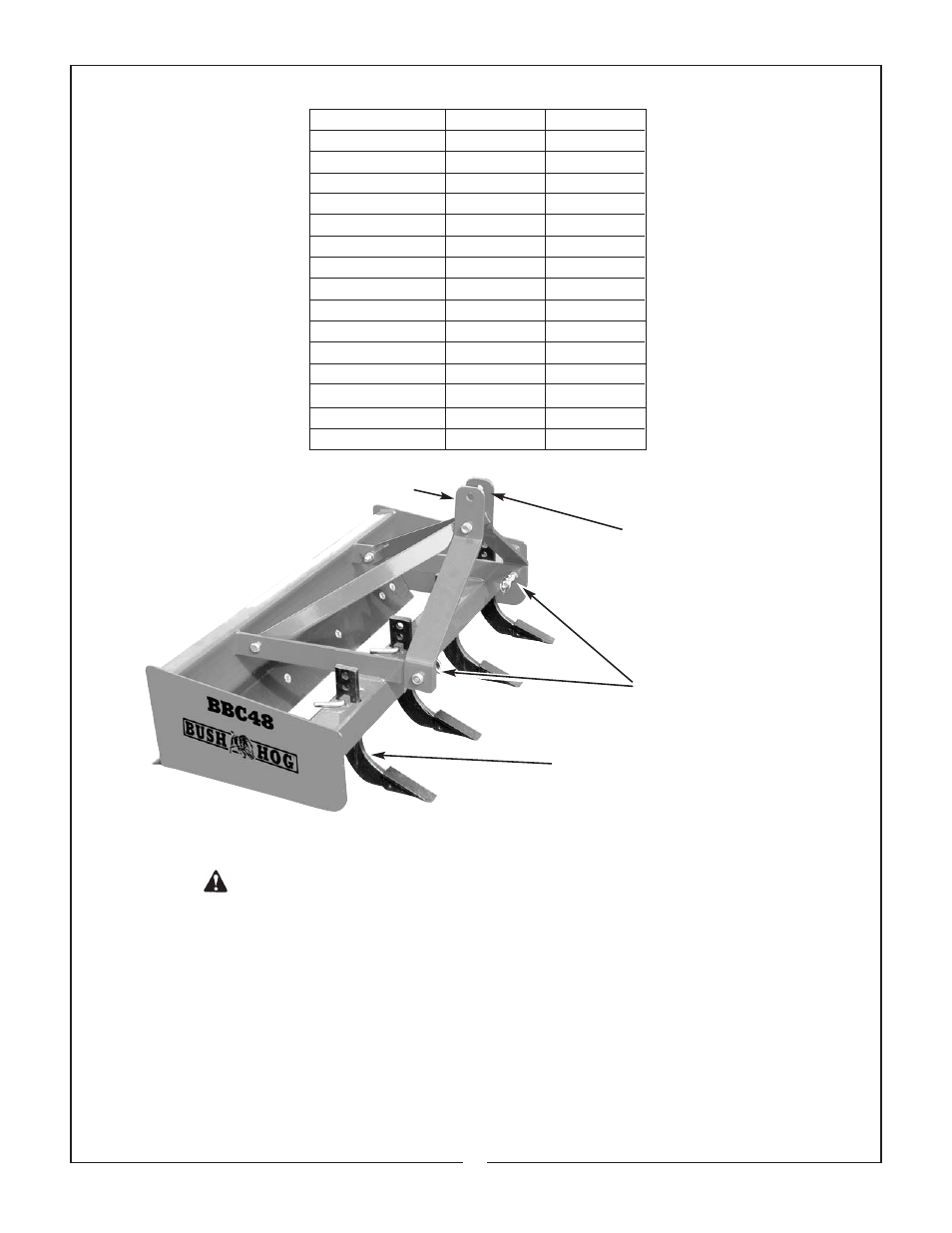

Figure 1
Lower Lift Arm Pins
Mast
Scarifier Shank
Top Center Link
Mounting Position
DURING BLADE ADJUSTMENT
KEEP BODY, HANDS AND FEET CLEAR
OF BLADE.
ATTACHMENT
The box blade should be placed on level ground.
Place the tractor rockshaft control in “position con-
trol” (non-floating) for attaching and detaching the
rear mounted blade. “Draft control” or “position con-
trol” can be used while operating.
Back the tractor until the ends of the lift arms can be
attached to the lift pins on the implement.
Attach the center link to the top of the mast and
adjust so that the blade frame will be level in the
operating position.
DETACHING FROM TRACTOR
Lower the blade to the ground with rockshaft control
in position control. Remove top link from mast, dis-
connect hitch arms from bottom pins and pull tractor
away from blade.
SECTION I
OPERATION
NOTE: Hitch pins can be mounted extending
toward the outside or center of the implement to
fit different tractor lift arms. Secure the lift arms
to the pins. (Figure 1)
6
WARNING
MODEL BBC-48 BBC-60
Working Width 48” 60”
Moldboard Height 11-1/2” 11-1/2”
Box Depth 12” 12”
Overall Depth 18-3/4” 18-3/4”
Overall Height 26-1/4” 26-1/4”
Overall Width 48-3/4” 60-3/4”
Side Sheet Thick. 1/4” 1/4”
Scarifier Size 3/4” x 2-1/2” 3/4” x 2-1/2”
Scarifier Teeth 4 5
Hitch Category 1 Category 1
Lower Hitch Cat 1 Pin Cat 1 Pin
Cutting Edge 1/2” x 6” 1/2” x 6”
Number of Blades 2 2
Approx. Weight 248 lbs. 258 lbs.
Tractor HP 24 (Maximum) 24 (Maximum)
SPECIFICATIONS
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
