N2892pr-0920
8
FRONT BOTTOM VIEW
2
REAR VIEW
1
Children can be harmed by small parts,
sharp edges and sharp points in the vehicle's
unassembled state, or by electrical items.
Care should be taken in unpacking and
assembly of the vehicle. Children should not
handle parts, including the battery, or help in
assembly of the vehicle.
WARNING

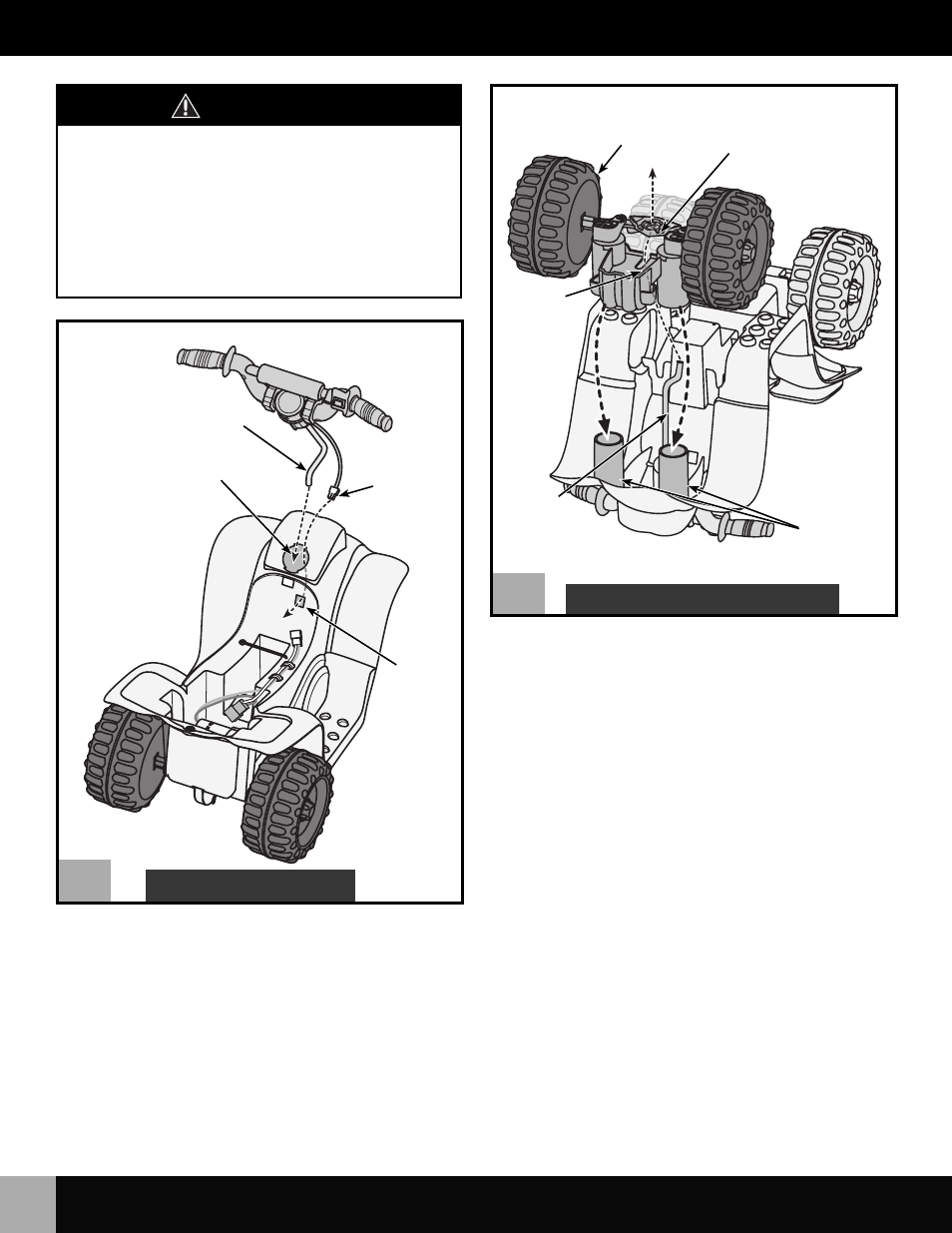

• First, fit the steering column and the handlebar connector on the
handlebar assembly down through the hole in the front end of the vehicle.
• Then, fit the handlebar connector back through the small square
opening in the vehicle.
Steering
Column
Groove
in Grille
Hole
in Axle
Front
Wheels
Assembly
Handlebar
Tubes
• Turn the vehicle over so that it rests on the handlebar.
• Position the front wheels assembly so that the grille is toward the
front end of the vehicle. Fit the front wheels assembly onto the
handlebar tubes.
• Fit the end of the steering column through the groove in the grille and
then through the hole in the front axle.
Hole
Small
Square
Opening
Steering Column
Handlebar
Connector
ASSEMBLY
