Briggs & Stratton 32K400 - Manual (Page 9)

32K400

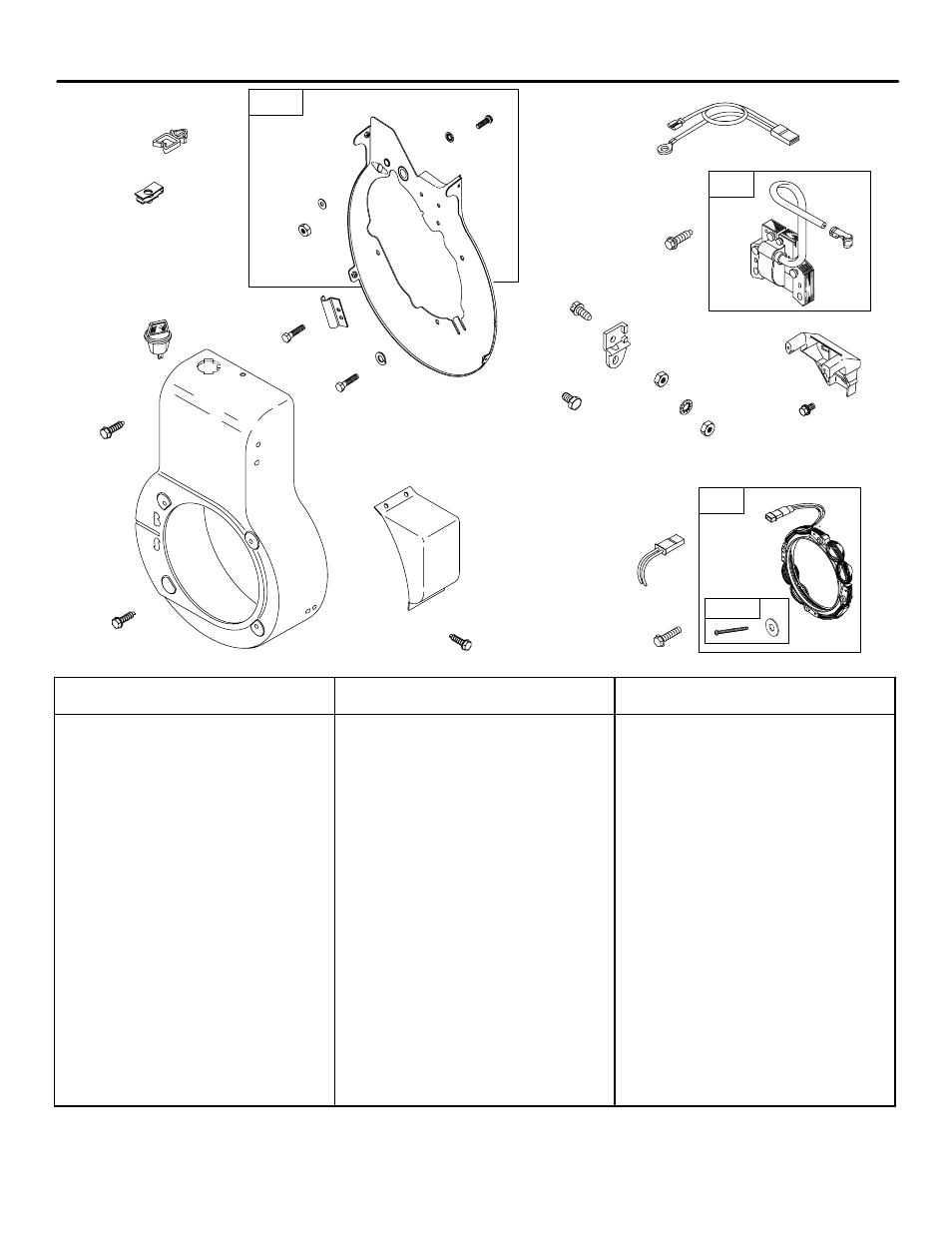

3478−9 Assemblies include all parts shown in frames. 05/09/2006
9
895
452A
316
452
197
405
384
304
736
305
727
732
729A
367 588
589
729
573
507
359
373
888A
888
356
373
851
334
333
877
878
1119
474
305A
1059
197 90072 Screw
(Back Plate)
(5/8”Long)
304 391229 Housing−Blower
305 690297 Screw
(Blower Housing)
(7/16” Long)
305A 690290 Screw
(Blower Housing)
(1/2” Long)
316 691612 Nut
(Back Plate)
333 398811 Armature−Magneto
334 691061 Screw
(Armature)
356 690650 Wire−Stop
359 691077 Washer
(Insulator)
367 690305 Screw
(Clip Wire)
379 691612 Nut
(Insulator)
384 690371 Washer
(Back Plate)
405 690290 Screw
(Back Plate)
452 92864 Washer
(Back Plate)
(Lockwasher)
452A 26404 Washer
(Back Plate)
(Flat)
474 696459 Alternator
(Dual Circuit)
507 690584 Insulator
573 391220 Plate−Back
588 690375 Bracket−Armature
589 690300 Screw
(Armature Bracket)
727 692338 Cover−Starter Drive
729 690432 Clip−Wire
(Alternator)
729A 690588 Clip−Wire
732 93410 Screw
(Starter Drive Cover)
736 690302 Nut−Clip
851 493880s Terminal−Cable
877 393456 Wire−Alternator
878 398661 Harness−Alternator
888 690292 Screw
(Insulator)
(1/2” Long)
888A 690295 Screw
(Insulator)
(3/8” Long)
895 692309 Switch−Rotary
1059 698516 Kit−Screw/Washer
(Alternator)
1119 691183 Screw
(Alternator)
K Engine Gasket Set−Reference 358
D Carburetor Overhaul Kit−Reference 121
∅ Valve Gasket Set−Reference 1095
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
