32K400

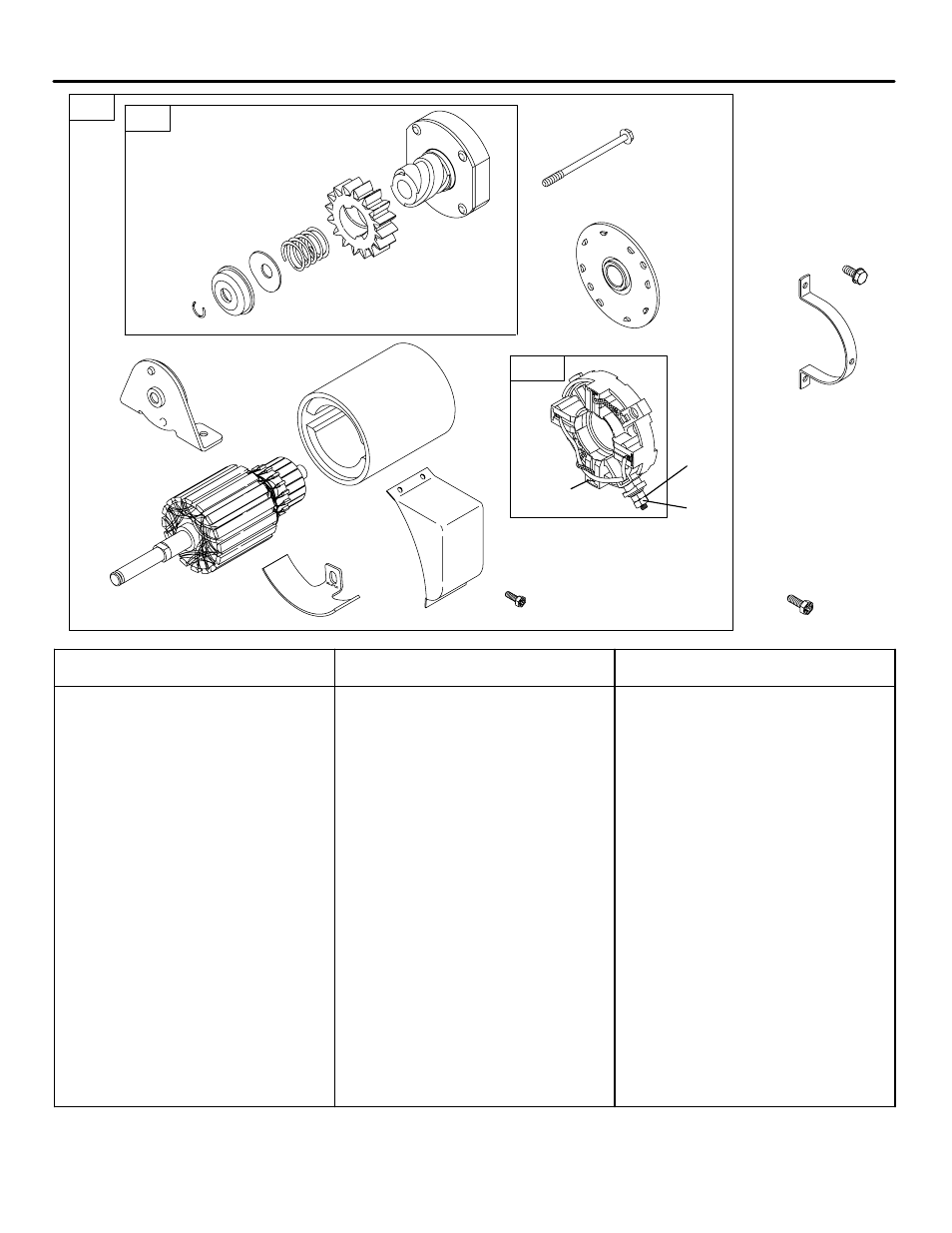

3478−10 Assemblies include all parts shown in frames. 05/09/2006
10
544
802
801 803
310
697
311
1051
309
510
1090
797
783
513
675
668A
732
727
503
442
309 396306 Motor−Starter
310 692329 Bolt
(Starter Motor)
311 497608 Brush Set
442 691693 Screw
(Starter Strap)
503 690406 Strap−Starter
510 696541 Drive−Starter
513 692024 Clutch−Drive
544 490309 Armature−Starter
668A 396515 Spacer
(Starter Motor)
675 691261 Washer
(Brush Retainer)
697 691058 Screw
(Starter Motor)
727 692338 Cover−Starter Drive
732 93410 Screw
(Starter Drive Cover)
783 695708 Gear−Starter
797 691029 Nut
(Brush Retainer)
801 394802 Cap−Drive
802 691286 Cap−End
803 Housing−Starter
(Serviced By 396306
Starter Motor Only)
1051 691265 Ring−Retaining
1090 691293 Retainer−Brush
K Engine Gasket Set−Reference 358
D Carburetor Overhaul Kit−Reference 121
∅ Valve Gasket Set−Reference 1095
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
