Assembly
Step 12: Attach the Lat Pulley Housing
Parts
• Lat Pulley Housing (#36)
• Completed Assembly (from step 11)
Hardware
• (3) 3/8” x 3/4” Hex Head Bolts (#1)
• (3) 3/8” Washers (#5)
Tools
• Adjustable Wrench (not included)

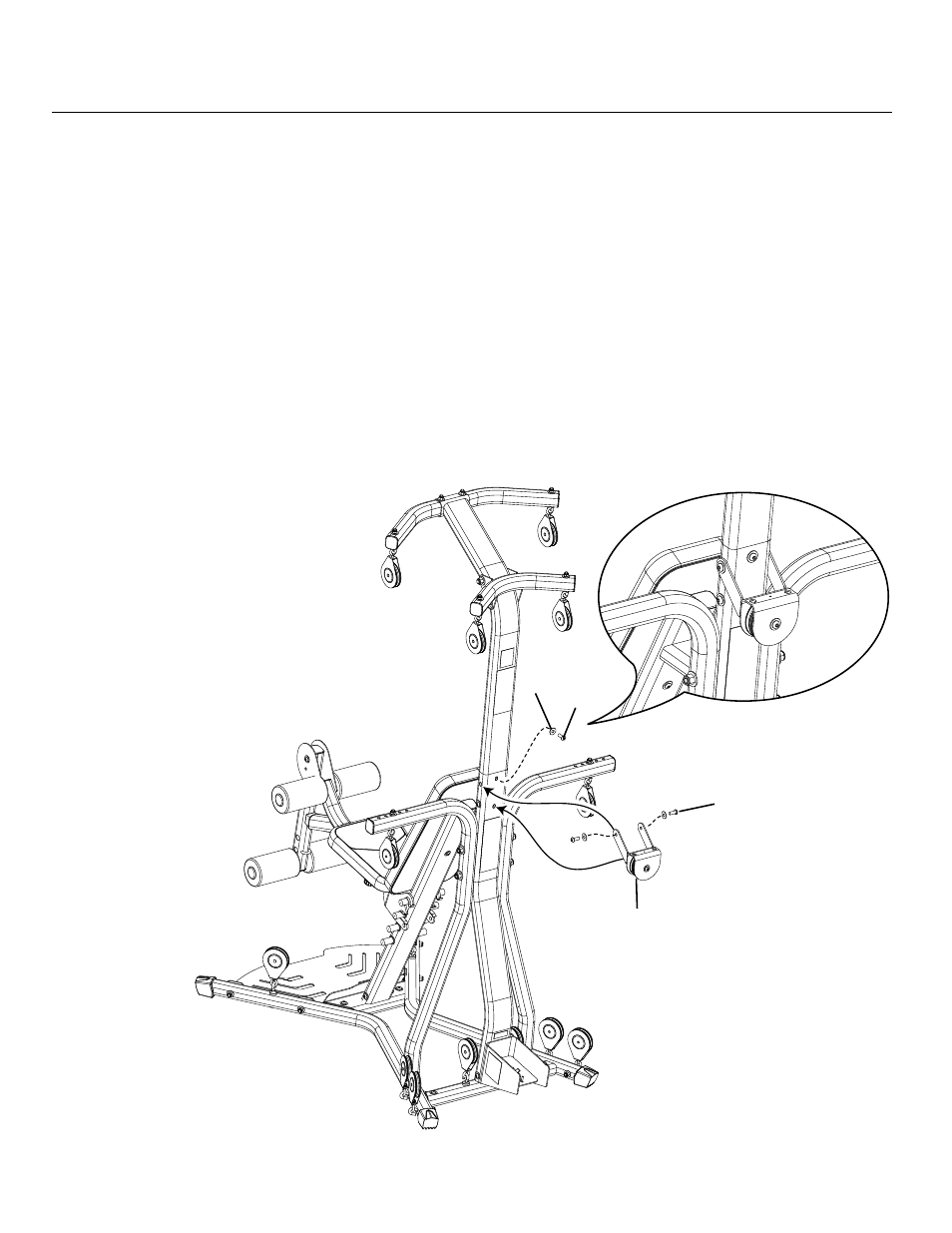

12-1 Attach the Lat Pulley Housing to the Lat Tower.
Note: Rod Pack removed from illustration for clarity.
1
1
36
5
Assembly Manual
17
