Assembly

Step 9: Attach the Lat Crossbar with Pulleys to the Upper Lat Tower

Parts

• Lat Crossbar with Pulleys (#24)

• Upper Lat Tower (#26)
Hardware

• (2) 3/8” x 3” Hex Head Bolts (#13)

• (4) 3/8” Washers (#5)

• (2) 3/8” Nylock Nuts (#7)
Tools

• (2) Adjustable Wrenches (not included)

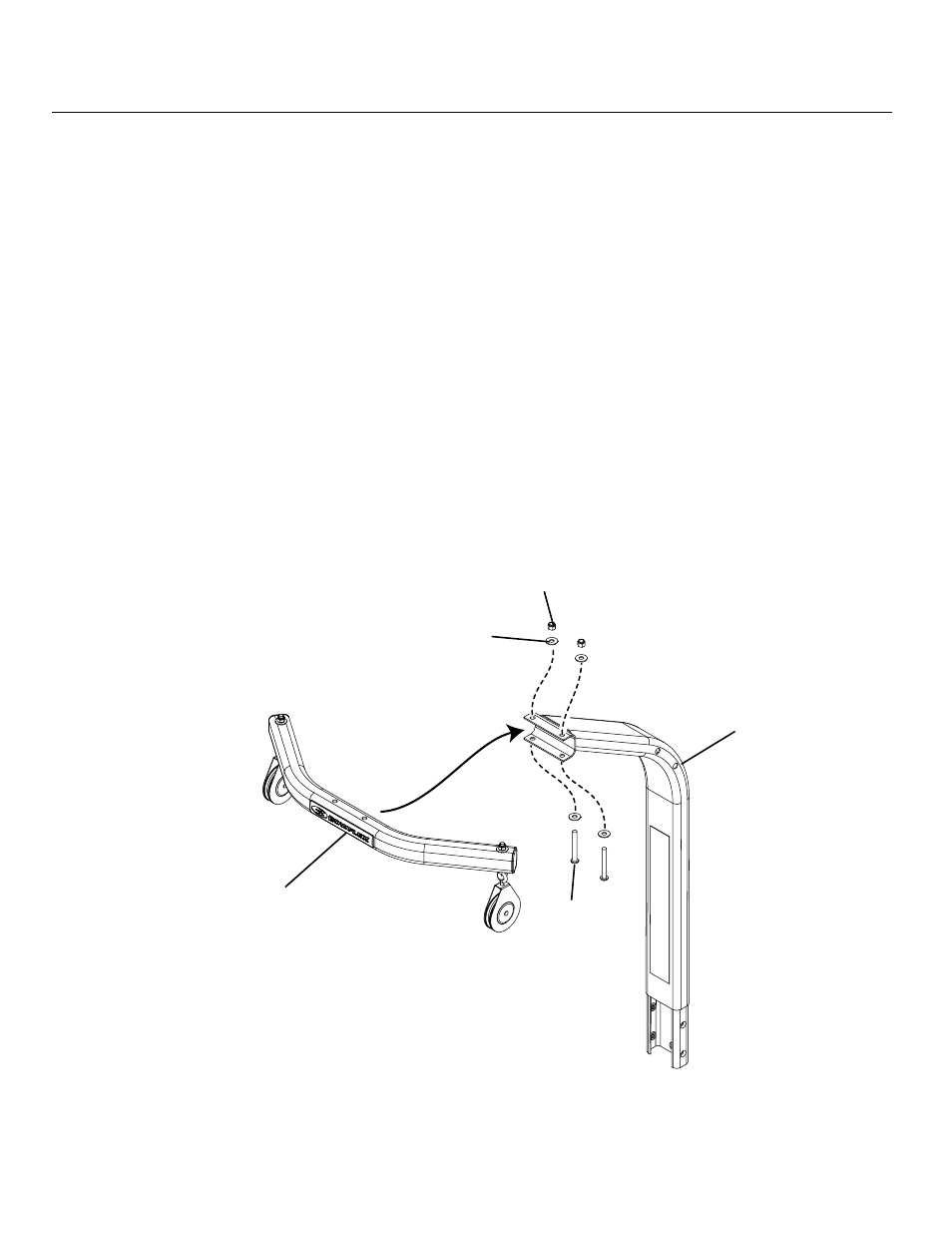

9-1 Attach the Lat Crossbar with Pulleys to the Upper Lat Tower.
9-2 Install and tighten the hardware.

7

5

13

26

24
