Exploded Views and Parts Lists

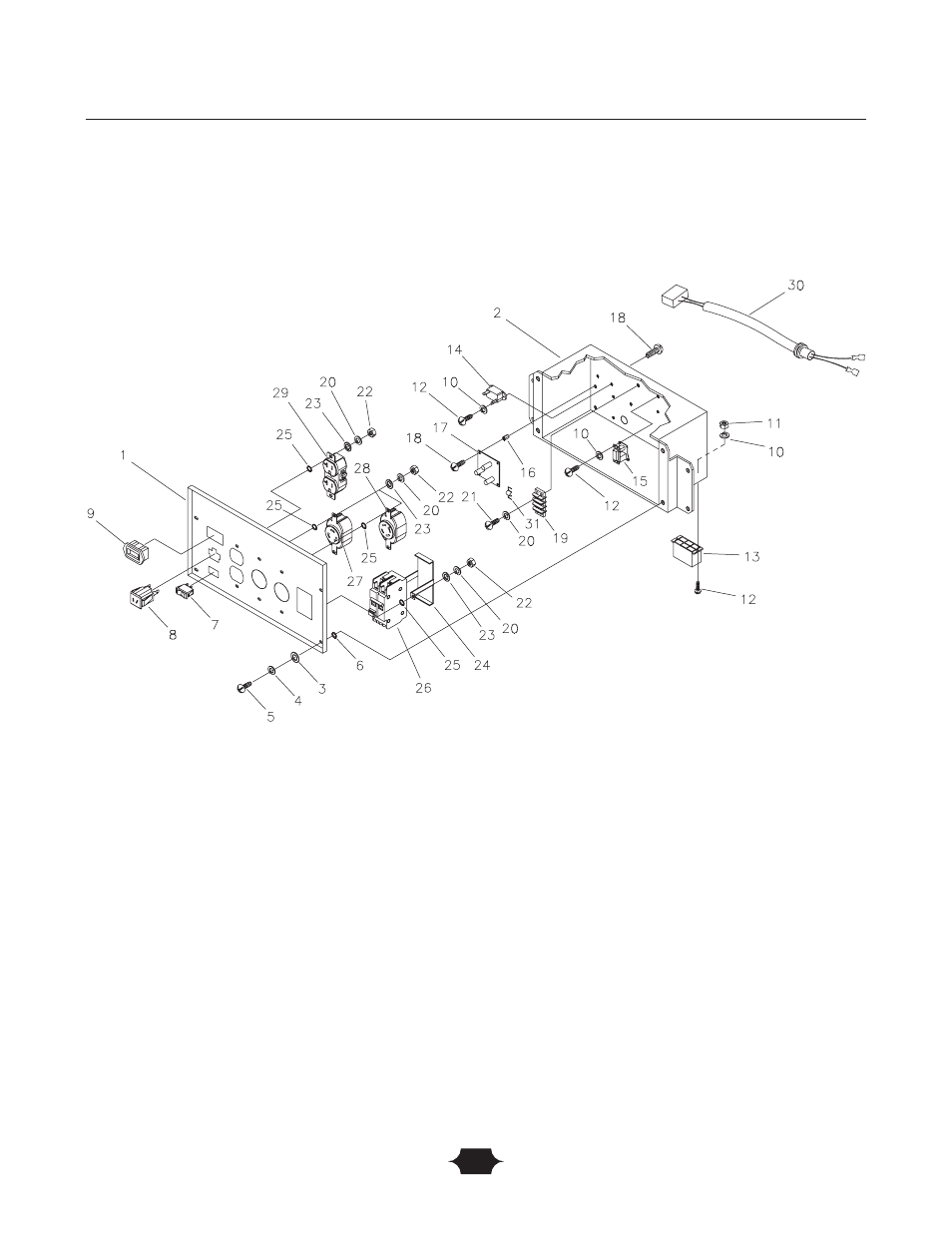

CONTROL PANEL EXPLODED VIEW & PARTS LIST
Item Part #
Description
1
B192832GS
PANEL, Control
2
B192835GS
BOX, Control Panel
3
*
WASHER, Flat, #10 - M5
4
*
LOCKWASHER, M5
5
*
PPHMS, M5 - 0.8 x 12
6
*
WASHER, M6 - 1/4, Int. Shakeproof
7
82538GS
SWITCH, Rocker
8
90418GS
OUTLET, 12VDC, Snap
9
202602GS
HOUR METER
10
*
LOCKWASHER, M3
11
*
NUT, M3 - 0.5
12
*
PHMS, M3 - 0.5 x 10
13
22694GS
HOUSING, Receptacle
14
87962GS
CIRCUIT BREAKER, 12V, 10A
15
84028GS
TRANSFORMER, Idle Control
16
64525GS
STANDOFF, Hex
17
193362GS
PCB, Idle Control
Item Part #
Description
18
*
PHTS, #6-32 x 3/8
19
B5052GS
STRIP, Terminal
20
*
LOCKWASHER, M4
21
*
PPHMS, M4 - 0.7 x 16
22
*
NUT, M4 - 0.7
23
*
WASHER, Flat, M4
24
192931GS
BRACKET, GFCI Breaker
25
*
WASHER, Shakeproof, Int. #8
26
192828BGS
BREAKER, Circuit, GFCI, 20A
27
68868GS
OUTLET, 120V, 30A
28
68867GS
OUTLET, 120/240V, 20A
29
68759GS
OUTLET, 120V, 20A, Duplex
30
193036GS
HARNESS, Wire
31
46669GS
JUMPER, Terminal Block
* - Items without part numbers are common fasteners and
are available at your local hardware store.
