Contact 1.800.762.1142 for assistance. Do not return to place of purchase.

page no.

3

N

Cotter Pin

ø1.4 x 30 Zincl Pated

2 pcs

Tools Required for Assembly (Included)

#2 Phillips Head Screwdriver

1 pc

M8 Wrench

1pc

Hardware

A

Screw

M4x10 Zinc Plated Phillips Truss Head

2 pcs

B

Screw

M5x12 Zinc Plated Phillips Truss Head

1 pc

C

Screw

M6x12 Zinc Plated Phillips Truss Head

1 pc

D

Screw

M6x30 Zinc Plated Phillips Truss Head

4 pcs

E

Nut

M8 Zinc Plated

2 pcs

F

Wing Nut

M5 Zinc Plated

1 pc

G

Wing Nut

M6 Zinc Plated

5 pcs

H

Washer

ø6 Zinc Plated

3 pcs

I

Washer

ø6.4 Zinc Plated

6 pcs

J

Washer

ø6.4 Heat Resistant

2 pcs

K

Lock Washer

ø5.3 Zinc Plated

1 pc

L

Lock Washer

ø6.4 Zinc Plated

3 pcs

M

Pin

ø6 x 45 Zincl Pated

2 pcs

Parts List

1

Handle

55-14-892

2

Air Vent

55-14-893

3

Lid

55-09-221

4

Warming Rack

55-14-895

5

Cooking Grid

55-14-897

6

Left Hinge Top Hinge

55-08-252

7

Right Hinge Top Hinge

55-08-414

8

Left Hinge Bottom Hinge

55-08-256

9

Right Hinge Bottom Hinge

55-08-415

10

Charcoal Grid

55-14-898

11

Bottom Bowl

55-09-218

12

Lock

55-09-222

13

Leg Support Cup (4)

55-14-899

14

Ash Receiver Slide

55-09-217

15

Ash Recevier

55-09-216

16

Rear Leg (2)

55-14-901

17

Front Leg (2)

55-09-219

18

Wheel (2)

55-14-906

19

Bottom Shelf

55-14-904

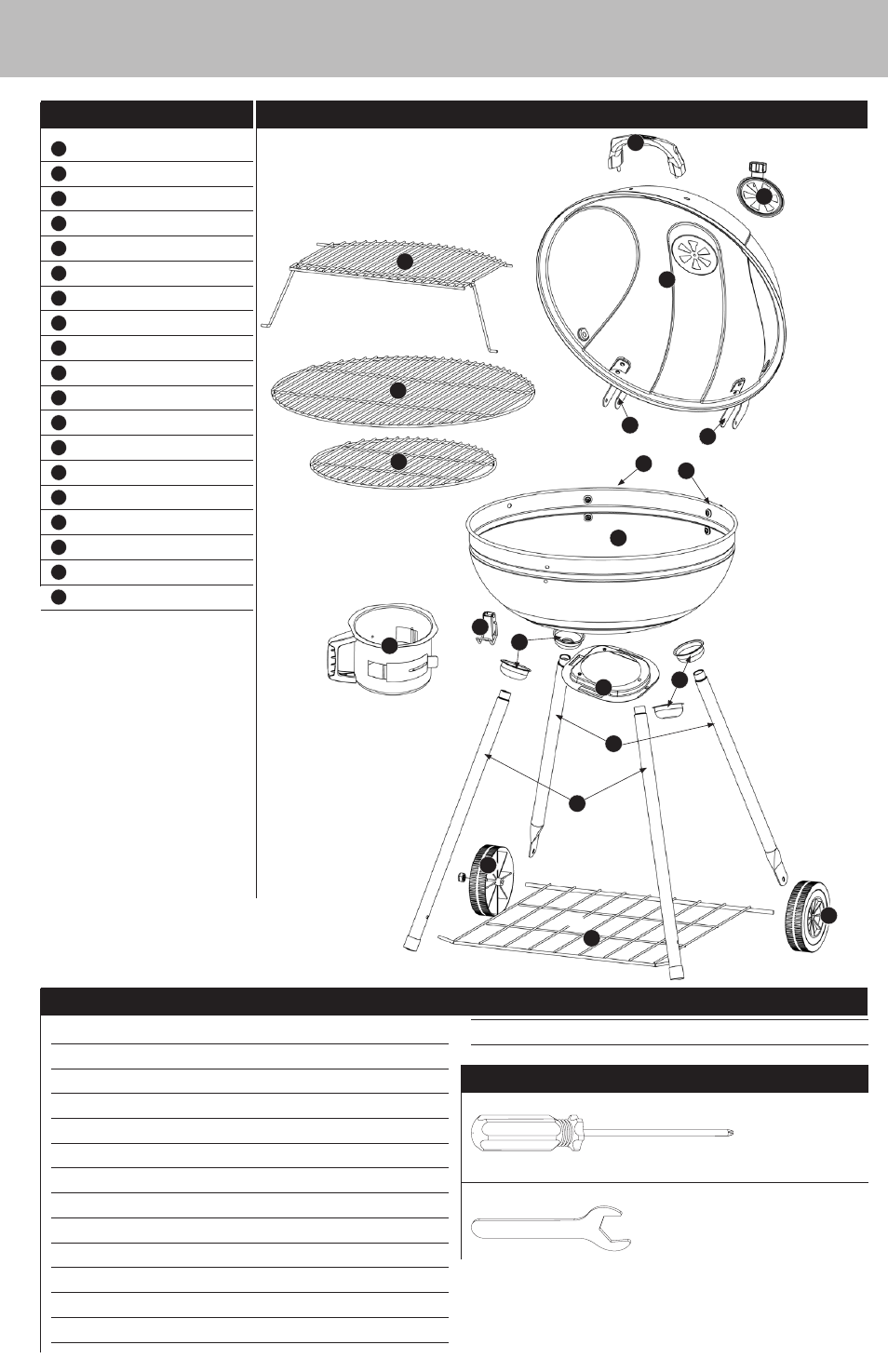

Exploded View

4

11

14

10

15

5

3

2

1

19

16

13

13

17

18

18

12

6

7

8

9
