Page 6
- 6 -

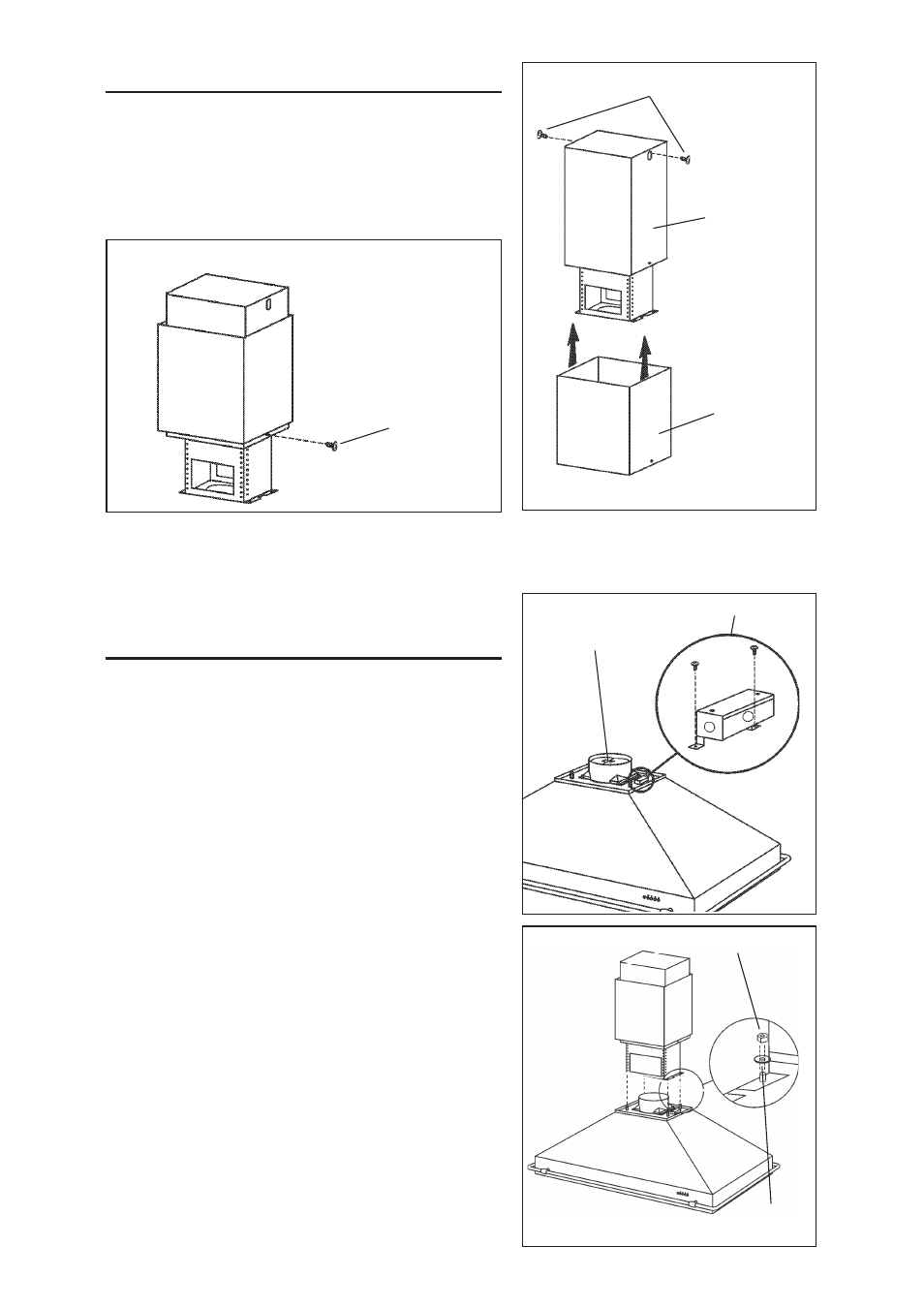

CONNECT DECORATIVE FLUE
1. Secure the upper flue to the upper support
frame with the mounting screws
(3.9x9.5mm).
2. Insert the lower flue moving it completely
towards the top and fix it temporarily with
retaining screws (3.9x9.5mm).
LOWER
FLUE
UPPER FLUE
MOUNTING SCREWS
(3.9x9.5mm)
INSERT THE LOWER FLUE
MOUNT HOOD TO SUPPORT
FRAME
1. Remove the tape located on the damper.
2. Before mount hood to support frame remove
the wiring box.
3. Use four (4) nuts and four (4) washers
(D.6.4mm) to secure hood to support frame
as shown.
4. Replace wiring box.
NUT
RETAINING
SCREWS
(3.9x9.5mm)
WASHER
(Ø6.4mm)
WIRING BOX
REMOVE THE
TAPE
