NOTE: When performing Step 8,
Lift grill body from front and
rear panels to avoid injury
to hands and fingers.

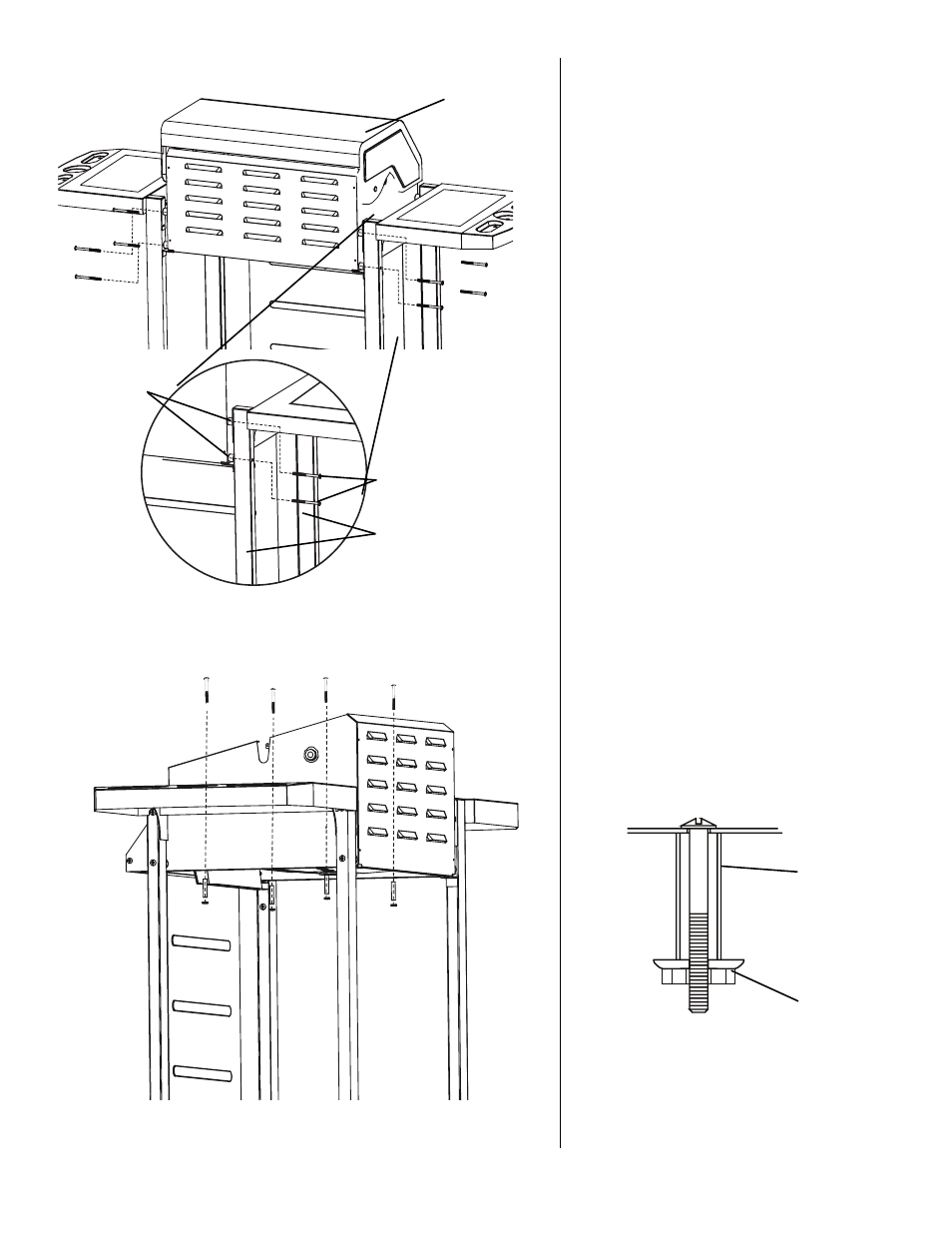

Step 8
With the help of a friend, place grill
body assembly on cart frame. Grill
body will rest on front panel and
angled base of vertical supports.
Align bolt holes located on the
outside of the grill body assembly
with holes in legs. Insert four
M6 X 82mm bolts through legs,
short spacers and into grill body
assembly.
Step 9
Attach long spacers to the
underside of grill body assembly.
Insert four M5 X 53mm bolts
through grill body assembly, long
spacers and secure with thin
M5 nuts.
26
Grill Body
Assembly
STEP8
Short Spacers
Legs
Bolts
Thin
M5 Nuts
Long
Spacer
