Brinkmann 7741 User Manual

Page 26

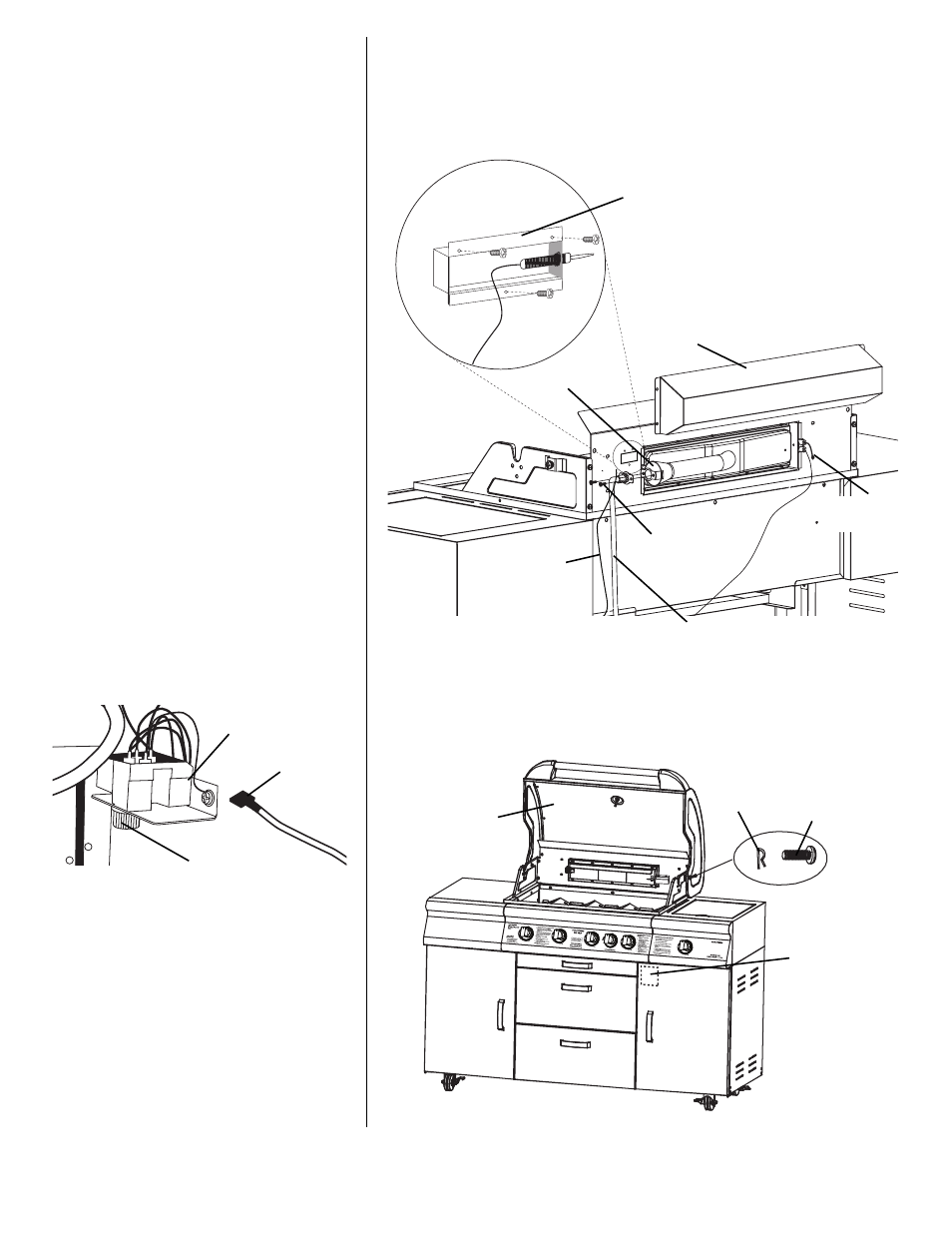

Step 3

Remove rotisserie burner cover
from rotisserie burner assembly.
The bolts and washers removed
will be used again in Step 6.

Step 4

Insert the thermocouple bracket
through the hole in the back panel.
Secure bracket to back panel using
three M4 X 8mm bolts, M4 lock
washers and M4 nuts.

Step 5

Attach gas supply line to pre-installed
rotisserie burner orifice using two
M4 X 8mm bolts as illustrated.

Step 6

Replace rotisserie burner cover over
rotisserie burner assembly and
secure. Make sure rotisserie ground
wire is inserted under one of the
rotisserie burner cover bolts for a
proper ground.

Step 7

Attach the rotisserie burner electrode
wire to the igniter module located
inside the right door. The connection
should be made to the only open
terminal.

Step 8

Place hood on the grill and align with
holes, then secure hood with hood
bolts and cotter pins as shown.

Electrode Wire

Igniter
Module

Hood

Cotter Pin

Hood Bolt

Battery Compartment

Location of
Rotisserie
Burner Igniter

Burner

Orifice

Gas Supply

Line

Rotisserie

Burner Cover

Ground

Wire

M4 X 8mm

Bolts

Thermocouple

Wire

Thermocouple

Bracket
