Choose a good, cleared assembly
area and get a friend to help you put
your grill together. Lay cardboard
down to protect grill finish and
assembly area.
CAUTION: Some parts may
contain sharp edges.
Wear protective gloves
if necessary.
Note: With the help of a friend,
carefully lay down grill on its
back. Be careful not to damage
the flexible metal gas line on
the back of grill.

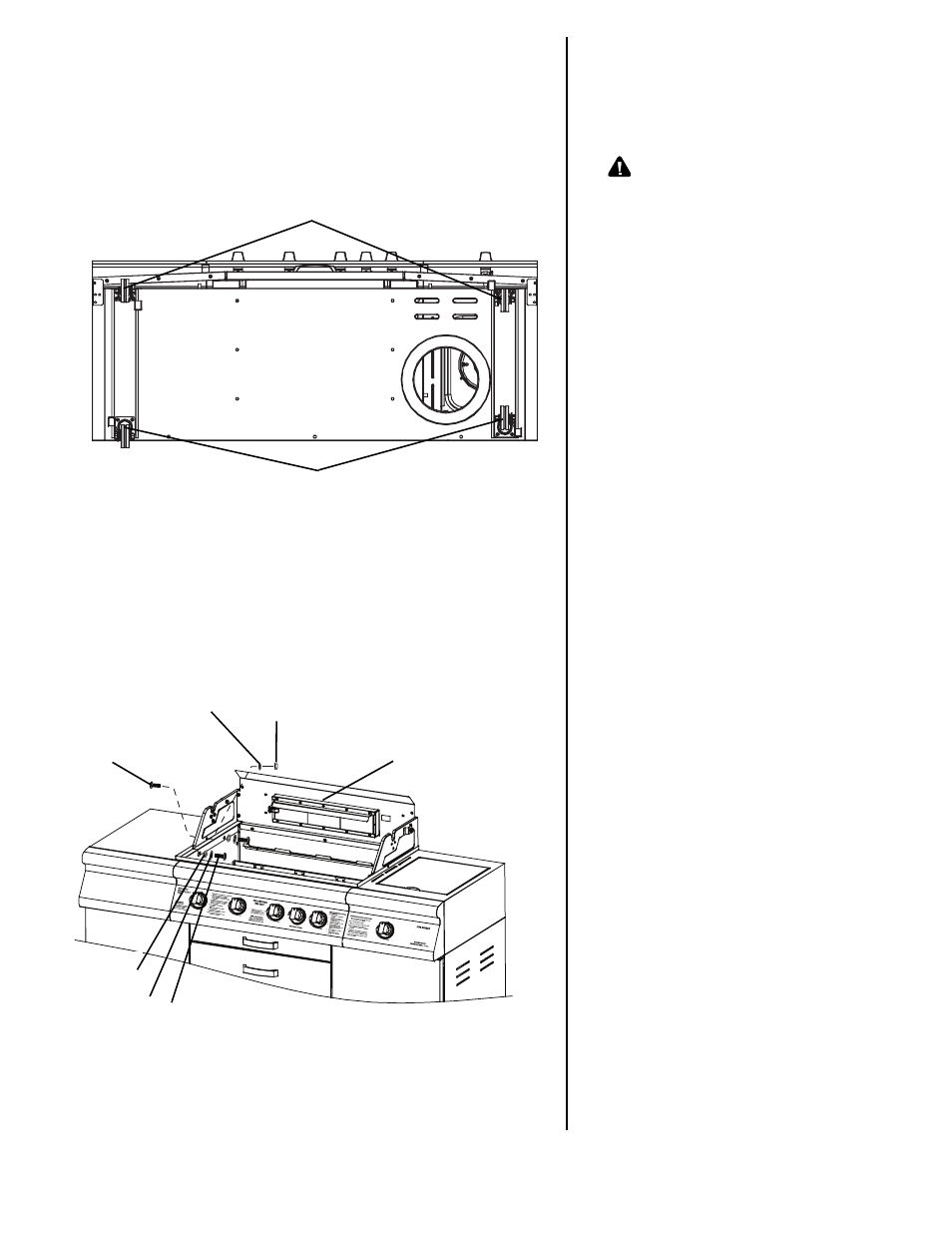

Step 1
Attach casters to grill base using
sixteen M6 X 12mm bolts, M6
washers and M6 lock washers as
illustrated.
Note: With the help of a friend,
turn the grill to its upright
position.
Step 2
Set upper grill body assembly on
the grill base and secure the side
with one M4 X 8mm bolt, one
M4 lock washer, one M4 nut, two
M6 X 12mm bolts, two M6 washers
and two M6 lock washers. Repeat
for other side. Then secure the
back of the grill body assembly with
threeM6 X 12mm bolts, three M6
washers and three M6 lock
washers.
24
Casters
Locking Casters
Upper Grill Body
Assembly
M4 Bolt
M4 Nut
M4 Lock
Washer
M6 Bolt
M6
Washers
M6 Lock
Washers
