Outdoor Fireplace Model No. WAF520A Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
4
Step
1

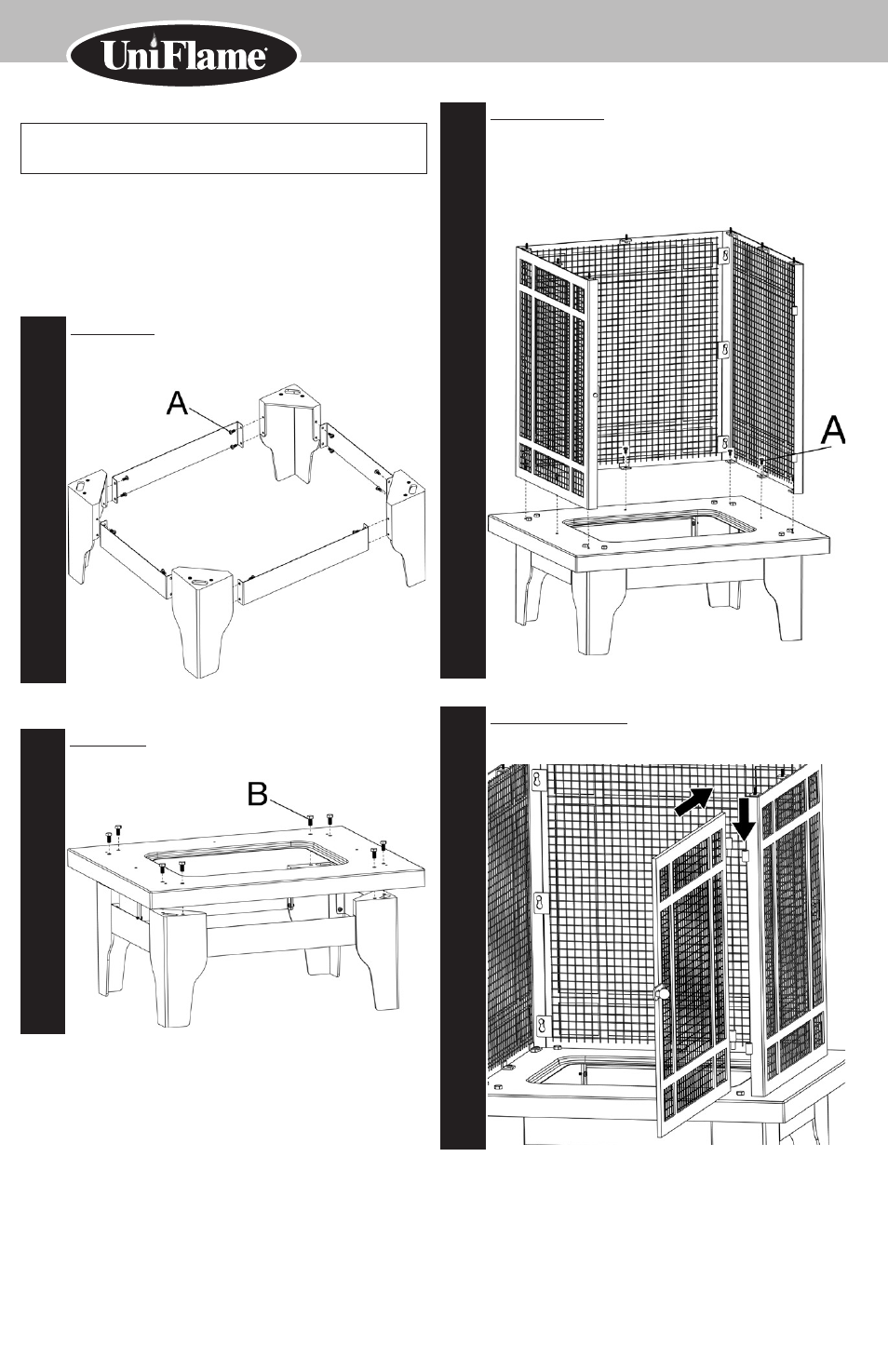

Assemble base
A. Attach braces A to legs using 8 screws (A).
B. Attach braces B to legs using 8 screws (A).
Step
2
Attach hearth
Attach hearth to legs using 8 bolts (B).
Step
3
Attach spark guards
Note: Do not fully tighten all spark guard bolts until instruction D.
A. Attach left spark guard to base using 3 screws (A).
B. Attach right spark guard to base using 3 screws (A).
C. Attach back spark guard to base using 1 screw (A)
D. Fully tighten all spark guard bolts.
Assembly Instructions
DO NOT RETURN PRODUCT TO STORE.
For assistance call
1-800-762-1142 toll free. Please have your owner’s manual and serial
number available for reference.
For Easiest Assembly:
• To void losing any small components or hardware, assemble your product on a hard level
surface that does not have cracks or openings.
• Clear an area large enough to layout all components and hardware.
• When applicable, tighten all hardware connections by hand first. Once the step is
completed go back fully tighten all hardware.
• Follow all steps in order to properly assemble your product.
Step
4
Attach spark guard door
Attach spark guard door to right spark guard by inseting spark guard door pegs into
right spark guard.
