APPENDIX E: CONNECTORS
35

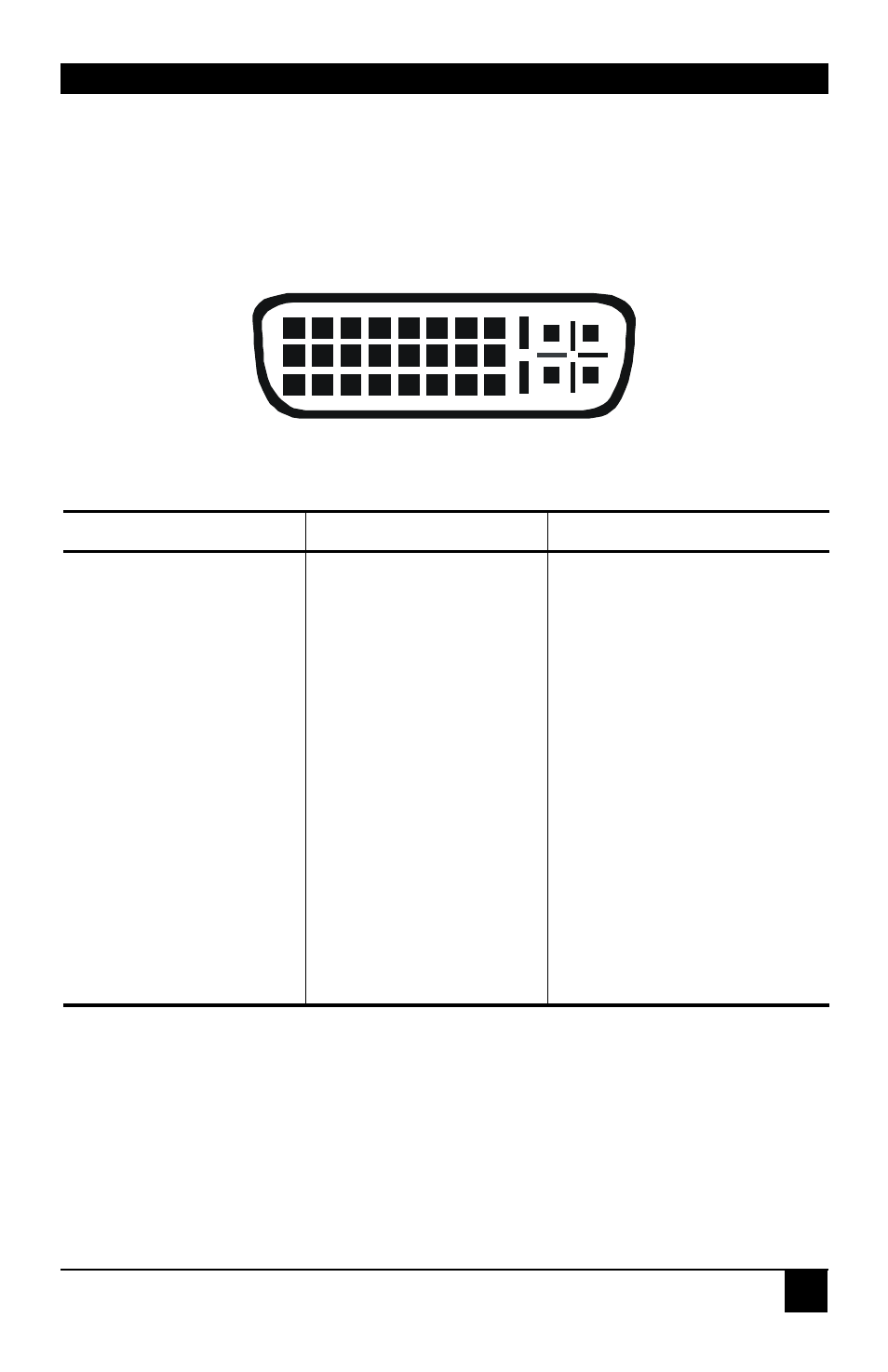

DVI-I female connector (Input connector for ALL Singlehead devices and Input
connector Dualhead devices 1
st
Monitor)
DVI-I Buchse (PS2 Singlehead Eingangsbuchse und PS2 Dualhead Eingangsbuchse 1.
Monitor)
1 8 C1 C2
C5
17 24 C3
C4
Pin Signal Pin Signal Pin Signal
1 T.M.D.S data 2- 9 T.M.D.S data 1- 17 T.M.D.S data 0-
2 T.M.D.S data 2+ 10 T.M.D.S data 1+ 18 T.M.D.S data 0+
3 T.M.D.S data 2 GND 11 T.M.D.S data 1 GND 19 T.M.D.S data 0 GND
4 PS2-KBD CLK 12 PS2-MOUSE CLK 20 PS2-MOUSE VCC-IN +5V
(not required)
5 PS2-KBD DATA 13 PS”-MOUSE-DATA 21 PS2-KBD VCC-IN +5V
(always required)
6 DDC Input (SCL) 14 +5V In for DDC 22 T.M.D.S clock GND
7 DDC Output(SDA) 15 GND 23 T.M.D.S clock +
8 Analog VSYNC 16 Hot Plug recognition 24 T.M.D.S clock -
C1 n.c. C3 n.c.
C2 n.c. C5 GND C4 n.c.
