Express® Lavatory System SS-Series
Installation - Obsolete SS-2/AST/STD, SS-2/AST/JUV
Bradley Corporation • 215-1244 Rev. D; EN 08-805 4/24/08
8"
(203)
22" (559)
34" (864)
6"
(152)
50"
(1270)
8" (203)
Radius
30"
(762)
8.5"
(216)
21"
(533)
10" (254)
Radius
Dimensions continue . . .
38-1/4"
(971)

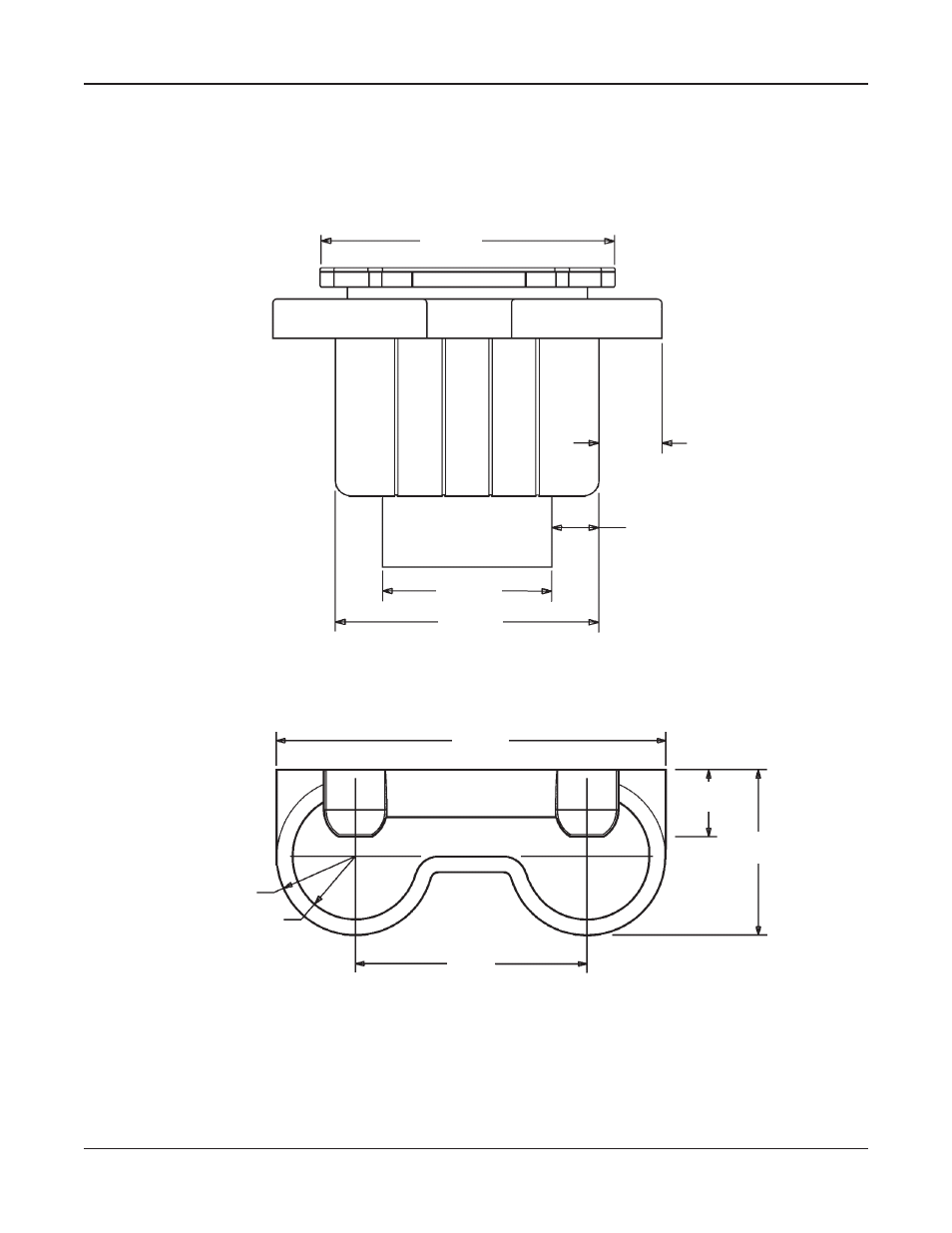

SS-2/AST/STD Express® Lavatory System Dimensions
Standard Height Mounting
