10
Express® Lavatory System SS-Series
SS-2/AST/STD, SS-2/AST/JUV
Installation - Obsolete
4/24/08 Bradley Corporation • 215-1244 Rev. D; EN 08-805
Installation Instructions continued . . .
Step 5: Connecting plastic tubing

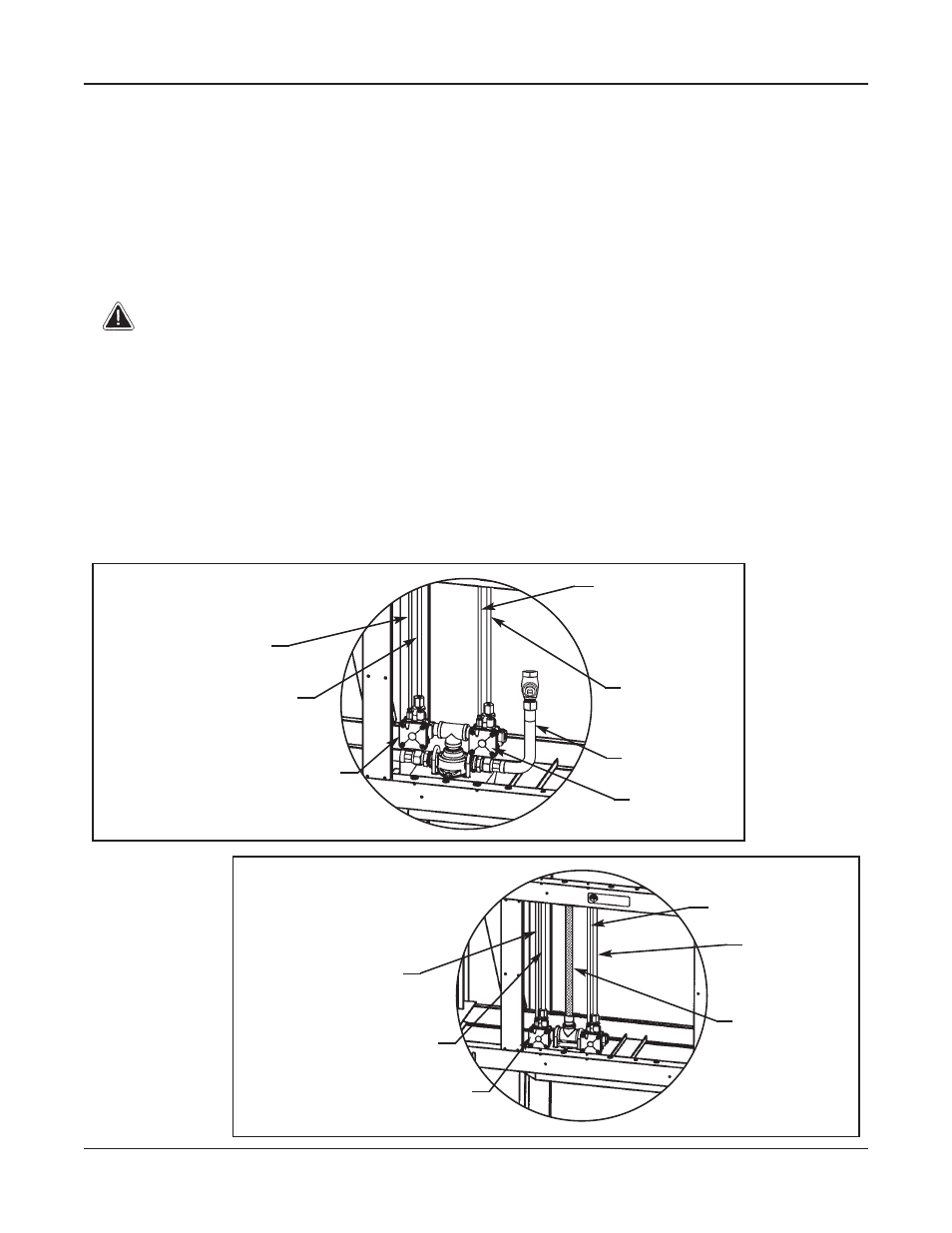

NOTE: Refer to Figure 8a for hot and cold supplies, and refer to Figure 8b for tempered supply.
1. Connect the plastic tubing for the water supplies from the sprayhead assembly to the quick-
connect fittings on the air valve as follows:
• insert the tubing with the red marking to the left valve
• insert the tubing with the green marking to the right valve
IMPORTANT: The plastic tubing for the water supplies and pushbuttons are
pre-cut to the correct lengths. If the tubing is cut too short,
kinking can occur and cause leaks at the fitting locations.
2. Connect the plastic tubing for the pushbuttons from the sprayhead assembly to the quick-connect
fittings on the air valve as follows:
• insert the tubing with the red marking to the left valve
• insert the tubing with the green marking to the right valve
3. Assemble the P-trap (supplied) and make drain connections.
AIR TUBING
(GREEN)
AIR TUBING
(RED)
Figure 8b
Figure 8a
VERNATHERM™
MIXING VALVE
WATER
SUPPLY
(GREEN)
AIR VALVE
WATER SUPPLY
(RED)
AIR VALVE
WATER
SUPPLY
(GREEN)
AIR TUBING
(GREEN)
WATER SUPPLY
(RED)
AIR TUBING
(RED)
FLEXIBLE
SUPPLY HOSE
FLEXIBLE
SUPPLY HOSE
