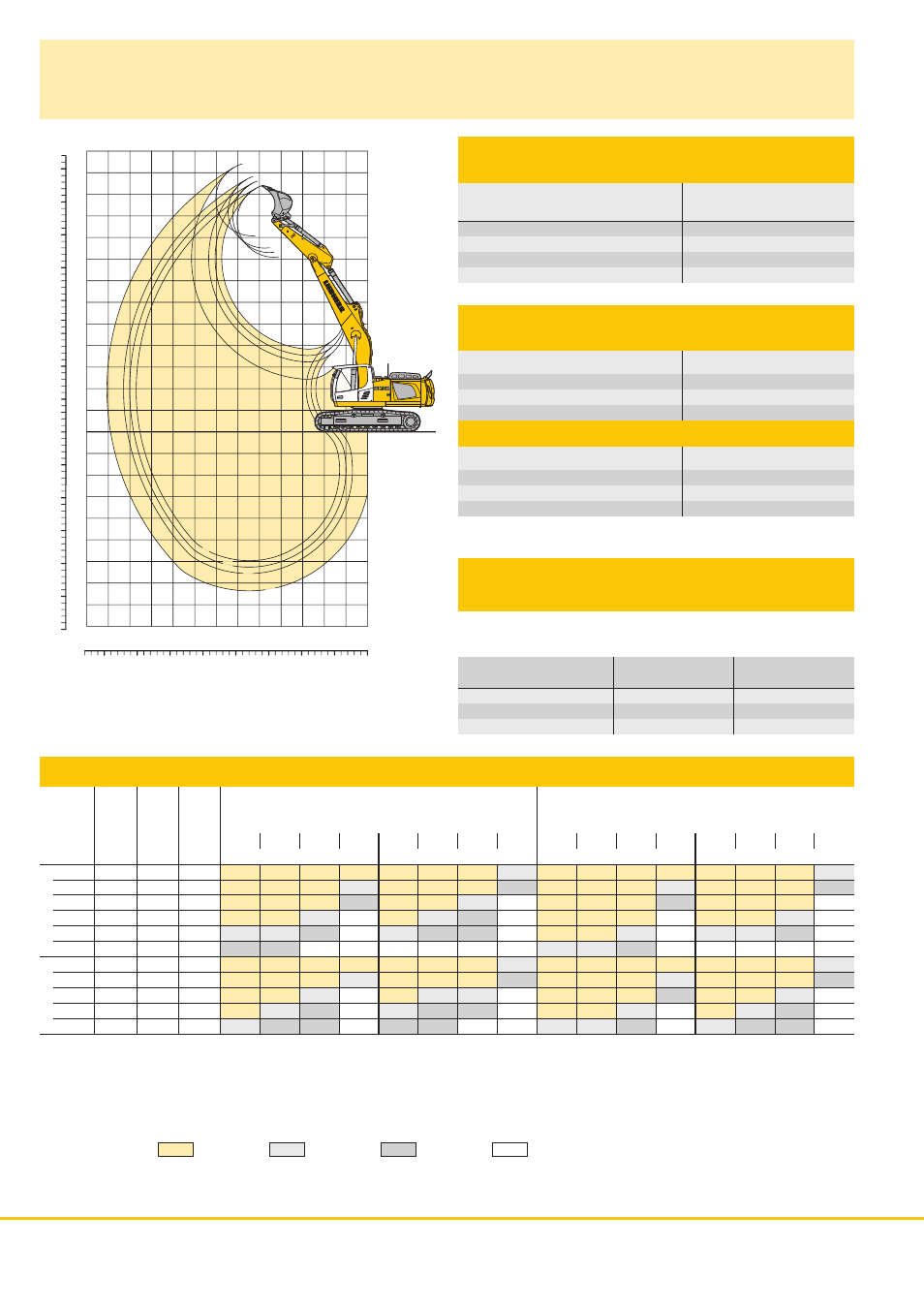

18

R 936 Litronic

Backhoe Bucket

with Straight Mono Boom 6.50 m

Digging Envelope

with Quick Coupler

1

2

3

4

Stick length

m 2.50

2.80

3.10

3.90

Max. digging depth

m 6.05

6.35

6.65

7.45

Max. reach at ground level

m 10.65 10.95 11.25 12.00

Max. dump height

m 7.95

8.15

8.40

8.95

Max. teeth height

m 11.50 11.70 11.90 12.50

Operating Weight

and Ground Pressure

Operating weight includes basic machine with straight mono boom
6.50 m, stick 2.50 m, quick coupler 66 and bucket 1.00 m

3

(960 kg).

Undercarriage

NLC

LC

Pad width

mm 500

600

750

500

600

750

Weight

kg 30,650 31,000 31,950 30,750 31,100 32,050

Ground pressure

kg/cm

2

0.71 0.60 0.49

0.71 0.60 0.49

Digging Forces

with Quick Coupler

1

2

3

4

Digging force ISO

kN

143

133

125

107

t 14.5

13.5

12.7

10.9

Breakout force ISO

kN

166

166

166

166

t 16.9

16.9

16.9

16.9

without Quick Coupler

Digging force ISO

kN

152

141

131

111

t 15.5

14.4

13.4

11.3

Breakout force ISO

kN

193

193

193

193

t 19.7

19.7

19.7

19.7

Max. breakout force with ripper bucket

255 kN (26.0 t)

Buckets

Machine stability per ISO 10567* (75 % of tipping capacity)

NLC-Undercarriage

LC-Undercarriage

Stick length (m)

Stick length (m)

2.50 2.80 3.10 3.90 2.50 2.80 3.10 3.90 2.50 2.80 3.10 3.90 2.50 2.80 3.10 3.90

mm

m

3

kg

kg

without quick coupler

with quick coupler

without quick coupler

with quick coupler

1,050 1.00 940 960

1,250 1.25 1,070 1,090

1,400 1.45 1,140 1,160

1,550 1.60 1,210 1,230

1,650 1.75 1,280 1,300

1,650 2.00 1,400

1,050 1.00 1,100 1,120

1,250 1.25 1,250 1,270

1,400 1.45 1,340 1,360

1,550 1.60 1,430 1,450

1,650 1.75 1,520 1,540

* Indicated loads are based on ISO 10567 max. stick length, lifted 360° on firm

1)

Standard bucket with teeth Z 50

2)

HD bucket with teeth Z 50

3)

Bucket for direct fitting

4)

Bucket for fitting to quick coupler

Other backhoes available on request

Max. material weight

Y

= ≤ 1.8 t/m

3

,

V

= ≤ 1.5 t/m

3

,

y

= ≤ 1.2 t/m

3

,

v

= not authorized

Cutting

width

Capacity

ISO 7451

Weight

3)

Weight

4)

STD

1)

HD

2)

Optional: heavy counterweight
(heavy counterweight increases the operating weight by 900 kg and
ground pressure by 0.02 kg/cm

2

)

m

ft

13

12

11

10

9

8

7

6

5

4

3

2

1

0

-1

-2

-3

-4

-5

-6

-7

-8

-9

-25

-20

-15

-10

-5

0

5

10

15

20

25

30

35

40

-30

0 m

1

2

3

4

5

6

7

8

1

2

3

4

9

10

11

12

13

40

35

30

25

20

15

10

5

0 ft

R0050
