R 936 Litronic 13

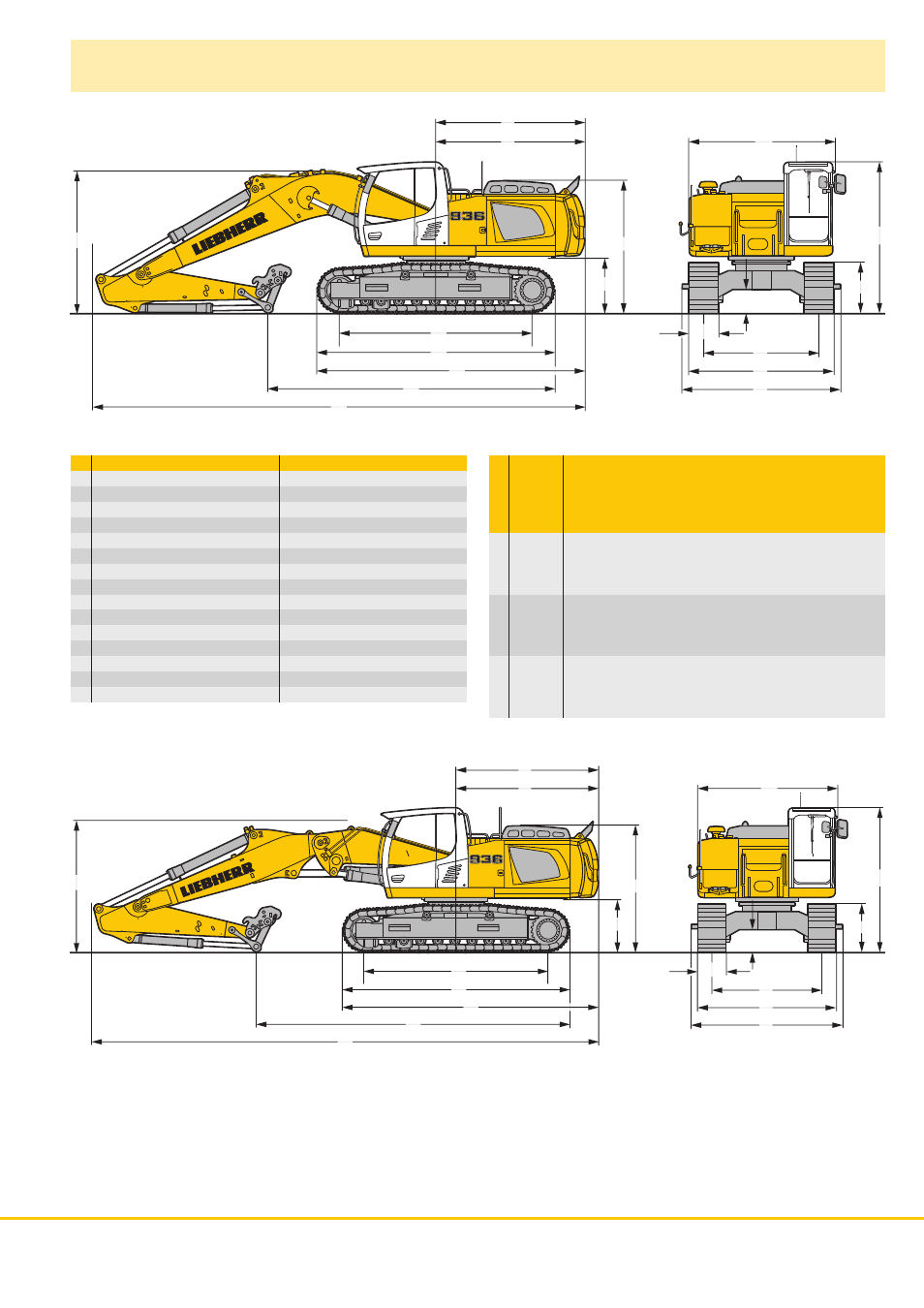

Dimensions
NLC mm LC mm
A* 2,995 2,995
C 3,130/3,325** 3,130/3,325**
D 3,085 3,085
E 3,155 3,155
H 2,760 2,760
K 1,150 1,150
L 4,000 4,000
P 1,050 1,050
Q 495 495
U 4,920 4,920
S 2,390 2,590
N 500 600 750 500 600 750
B 2,958 2,990 3,140 3,158 3,190 3,340
G 2,980 2,980 3,280 3,180 3,180 3,480
Z 5,545 5,545
* without door stop device and spacer
** with FOPS top guard
Stick Mono Two-piece Straight
Length Boom Boom Mono
6.05 m 4.20 m Boom
6.50 m
m mm mm mm
V 2.50 5,950 6,800 6,650
2.80 5,650 6,550 6,400
3.10 5,400 6,300 6,200
3.90 4,700 5,700 5,700
W 2.50 3,050 2,850 2,950
2.80 3,050 2,900 3,000
3.10 3,100 3,000 3,100
3.90 3,200 3,250 3,450
X 2.50 10,200 11,000 10,750
2.80 10,250 11,050 10,750
3.10 10,250 11,050 10,800
3.90 10,300 11,000 10,750
A
C
P
Q
N
S
B
Z
U
L
G V
X
W
D
K
H
E
R0047
A
C
P
Q
N
S
B
Z
U
L
G V
X
W
D
K
H
E
R0048
