Variety on wheels

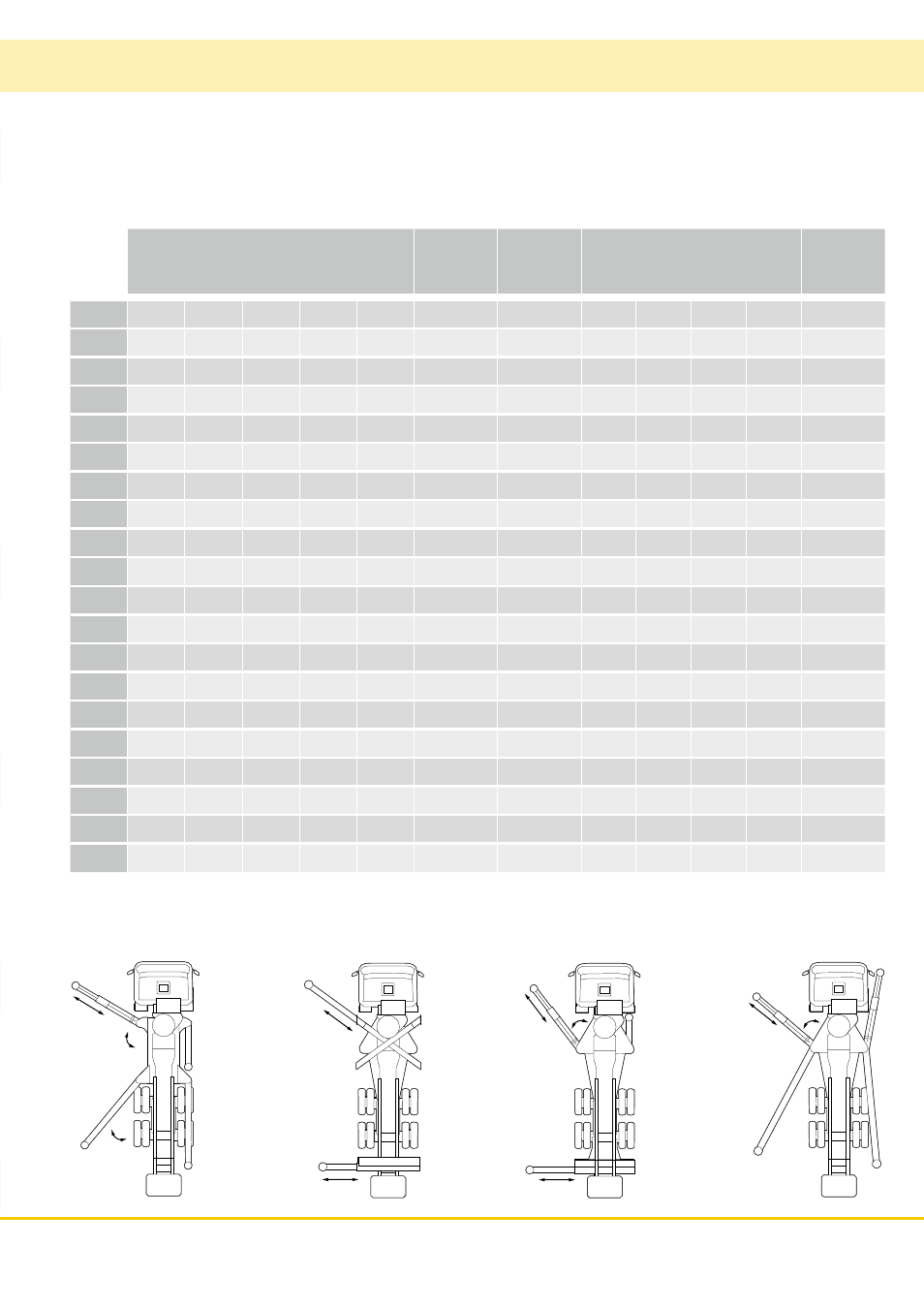

Liebherr truck mounted concrete pumps are available with boom sizes from 17 to 58 m. Various fold designs are pos-
sible, depending on the respective type. There is also a diverse range of supports with 4 different variants of outrigger
to choose between. Output sizes of between 73 and 170 m³/h can be combined for the pump units.
ST XH XXH XXT
Pump group THP m³/h
H = High pressure · L = Long stroke
Radius
vertical
Fold
Segments
Outrigger
Truck
Axles
m 80 110 125 140 170 m RZM ST XH XXH XXT
10 80 110 140 17 R3 XH 2
20 110 125 140H 24 M4 XH 2/3
110 125 140H 28 Z4 XH 3
30 125 140H 170H 32 Z5 XXH XXT 4
125 140H 170H 33 R4 XXT 3/4
125 140H 170H 35 Z5 XXH XXT 4
125 140H 170H 37 R4 ST XXH XXT 3/4
125 140H 170H 37 Z4 ST XXH XXT 3/4
40 125 140H 170H 41 M5 XXT 4
125 140H 170H 43 R4 XXT 4
140H 170H 47 M5 ST 4
140HL 170HL 47 M5 XXT 4/5
50 140HL 170HL 52 M5 ST 5
140HL 170HL 58 M5 ST 5
R = roll-folding, Z = Z-folding, M = multi-folding
