LTM 1350-6. 1
11
S2490
2
1
Powerful, long telescopic boom and functional
lattice extensions
The telescopic boom consists of the base section and 5 telescopic sections,
which can be comfortably and automatically extended and pinned to the re-
quested length by the thousand fold proven single cylinder telescoping system
TELEMATIK.
• 70 m long telescopic boom
• 78 m long luffing jib
• 42 m long fixed jib (0°, 20°, 40°, 60°)
• Stepless interpolation of capacities during luffing of the boom combination
between 82° and 68° telescopic boom angle
• Y-telescopic boom suspension, self assembly
High capacities with full counterweight as well as
with partial counterweight offer a wide applica-
tion of operations
• High lateral stability due to the oval boom profile
• Optimized capacities due to the numerous extension variations
• Capacity 34.7 t at 70 m long suspended telescopic boom
High capacities at unpinned boom lengths
• High telescopable capacities due to interpolation
• Separate capacity charts for holding of loads at unpinned boom lengths
• Display at LICCON-monitor

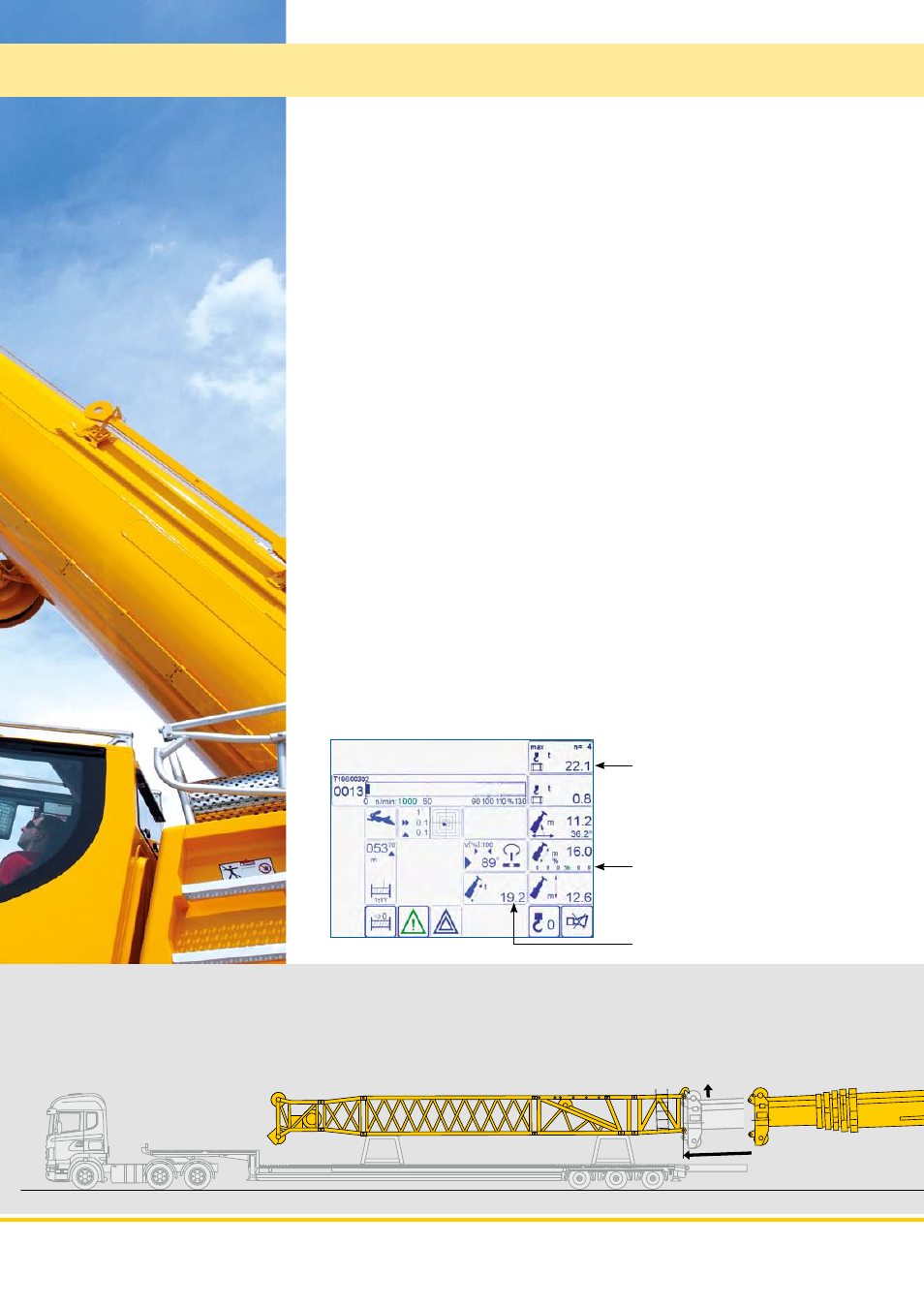

High capacities and flexible boom system
Holding capacity
Unpinned telescope length
Telescopable capacity
