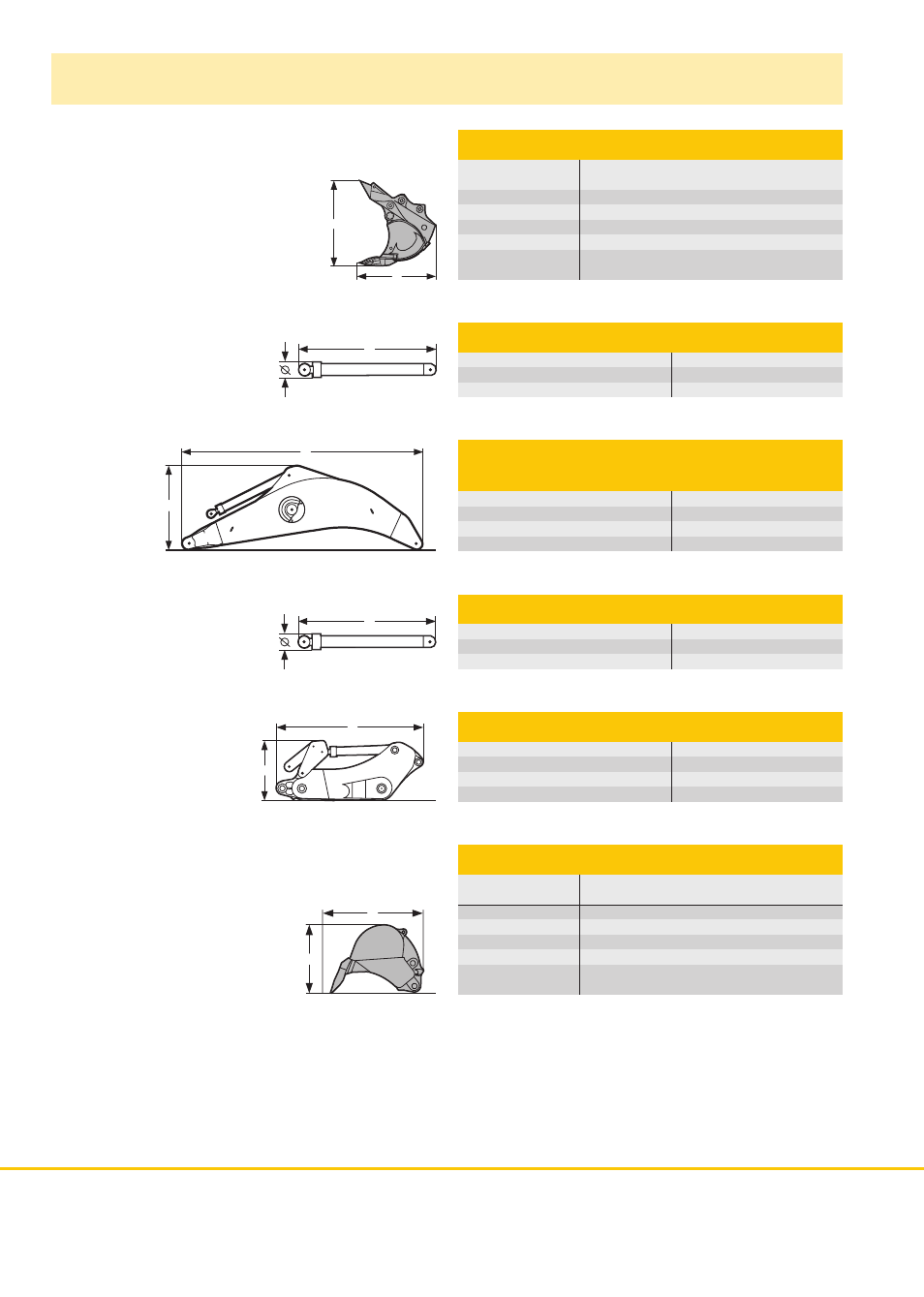

Component Dimensions and Weights
L
H
L
Gooseneck Boom
with Two Stick Cylinders
L Length
mm/ft-in
12500/41’0”
H Height
mm/ft-in
4500/14’9”
Width
mm/ft-in
2800/ 9’2”
Weight
kg/lb
68950/152,000
Bucket Tilt Cylinder
(two)
L Length
mm/ft-in
4690/15’ 5”
Ø Diameter
mm/in
490/
’
19”
Weight
kg/lb
2 x 3670/2 x 8,090
Hoist Cylinders Backhoe
(two)
L Length
mm/ft-in
5430/17’10”
Ø Diameter
mm/in
600/
’
24”
Weight
kg/lb
2 x 6060/2 x 13,360
Bottom Dump Bucket
(including clam cylinders)
Cutting width mm/in
4150/163” 4700/185” 5500/217” 5500/217”
Capacity
m
3
/cuyd
25,00/32.7 29,00/37.9 34,00/44.4 36,00/47.0
L Length
mm/ft-in
4650/15’3” 4650/15’3” 4650/15’3” 4650/15’3”
H Height
mm/ft-in
4500/14’9” 4500/14’9” 4500/14’9” 5040/16’6”
Width
mm/ft-in
4150/13’7” 4700/15’5” 5500/18’0” 5670/18’7”
Weight
kg
49050
53600
59400
64000
lb
108,130
118,160
130,950
141,100
H
L
L
Stick with Two Bucket Cylinders
L Length
mm/ft-in
7500/24’ 7”
H Height
mm/ft-in
3000/ 9’10”
Width
mm/ft-in
2500/ 8’ 2”
Weight
kg/lb
40800/89,950
H
L
H
L
Backhoe Buckets
Cutting width
mm/in
4150/163”
4800/189”
4800/189”
4800/189”
Capacity
m
3
/cuyd
25,00/32.7
30,00/39.2
33,00/43.1
36,00/47.0
L
Length
mm/ft-in
4650/15’3” 4650/15’ 3” 4650/15’ 3” 4900/16’ 0”
H Height
mm/ft-in
3150/10’4” 3150/10’ 4” 3300/10’10” 3400/11’ 2”
Width
mm/ft-in
4200/13’9” 4850/15’11” 4850/15’11” 4850/15’11”
Weight
kg
35000
39000
41200
41500
lb
77,150
86,000
90,760
91,500
