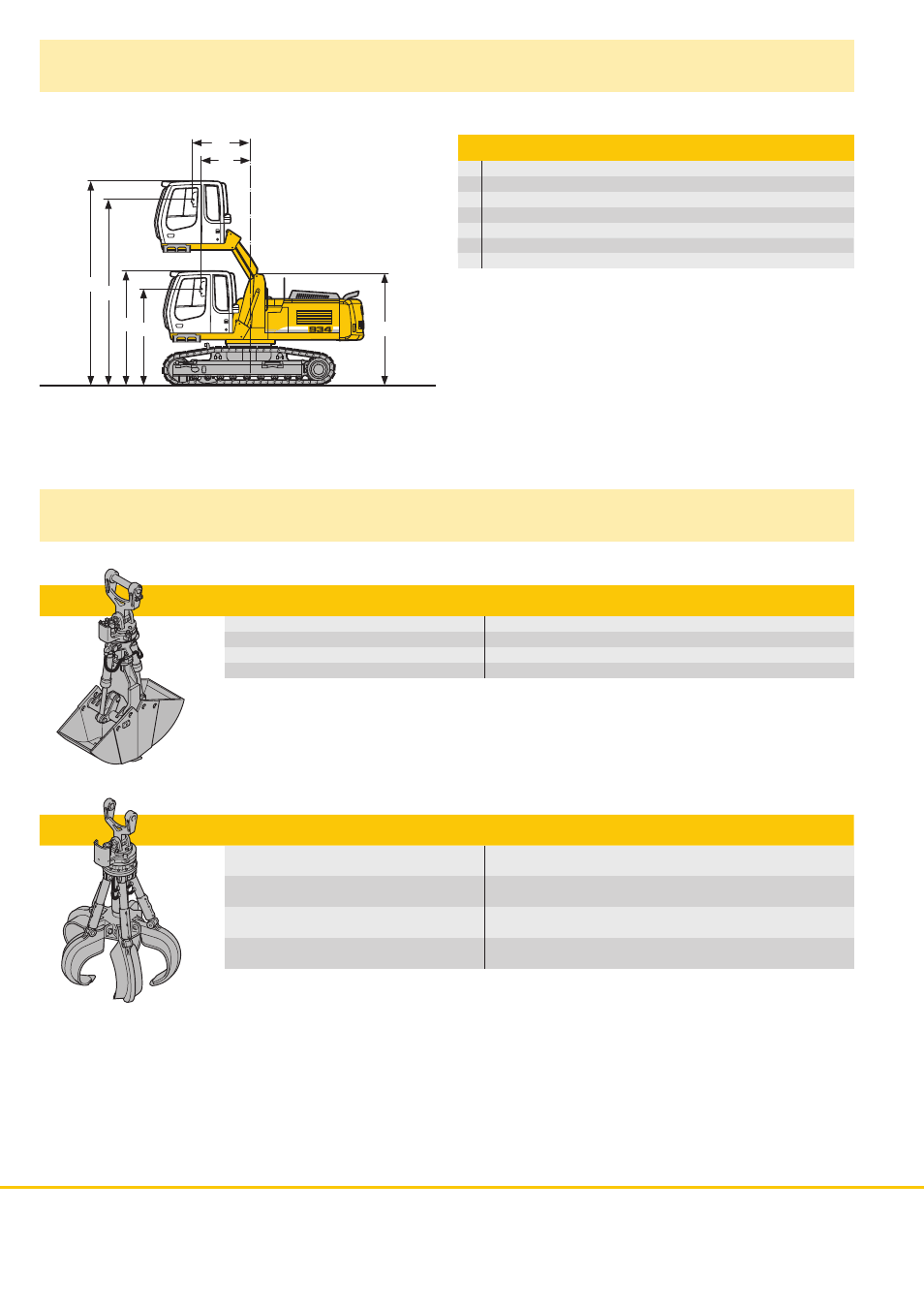

D1
B1 E
C1
D2
B2
C2
Liebherr-France SAS
2, avenue Joseph Rey, B.P. 90287, F-68005 Colmar Cedex
 +33 389 21 30 30, Fax +33 389 21 37 93
www.liebherr.com, E-Mail: [email protected]
Printed in Germany by Typodruck BK LFR/SP 11081164-0.5-02.11_enGB Subject to technical modifications.
EW
B1
2,660 mm
B2 5,160 mm
C1 3,160 mm
C2 5,660 mm
D1 1,485 mm
D2 1,730 mm
E 3,080 mm
Shells for Loose Material
Clamshell Model 20 B
Variety of Tools
Hydraulic Cab Elevation
Shells for loose material with
cutting edge (without teeth)
Cutting width of shells mm 1,000 1,200 1,600
Capacity m 3 1.30 1.50 2.00
For loose material, specific weight up to t/m 3 1.5 1.5 1.5
Weight kg 1,355 1,415 1,550
Multiple Tine Grapples
open tines semi-closed tines closed tines
Grapple Model 64 Capacity m 3 0.40 0.60 0.40 0.60 0.40 0.60
(4 tines) Weight kg 845 1,130 1,055 1,330 1,060 1,520
Grapple Model 65 Capacity m 3 0.40 0.60 0.40 0.60 0.40 0.60
(5 tines) Weight kg 1,150 1,230 1,285 1,415 1,325 1,520
Grapple Model 69 Capacity m 3 0.80 1.10 0.80 1.10 0.80 1.10
(4 tines) Weight kg 1,345 1,395 1,535 1,640 1,900 2,060
Grapple Model 70 C Capacity m 3 0.80 1.10 0.80 1.10 0.80 1.10
(5 tines) Weight kg 1,485 1,590 1,705 1,860 1,950 1,995
