Dimensions – Liebherr R 924 User Manual
Page 15
R 924 Litronic
15

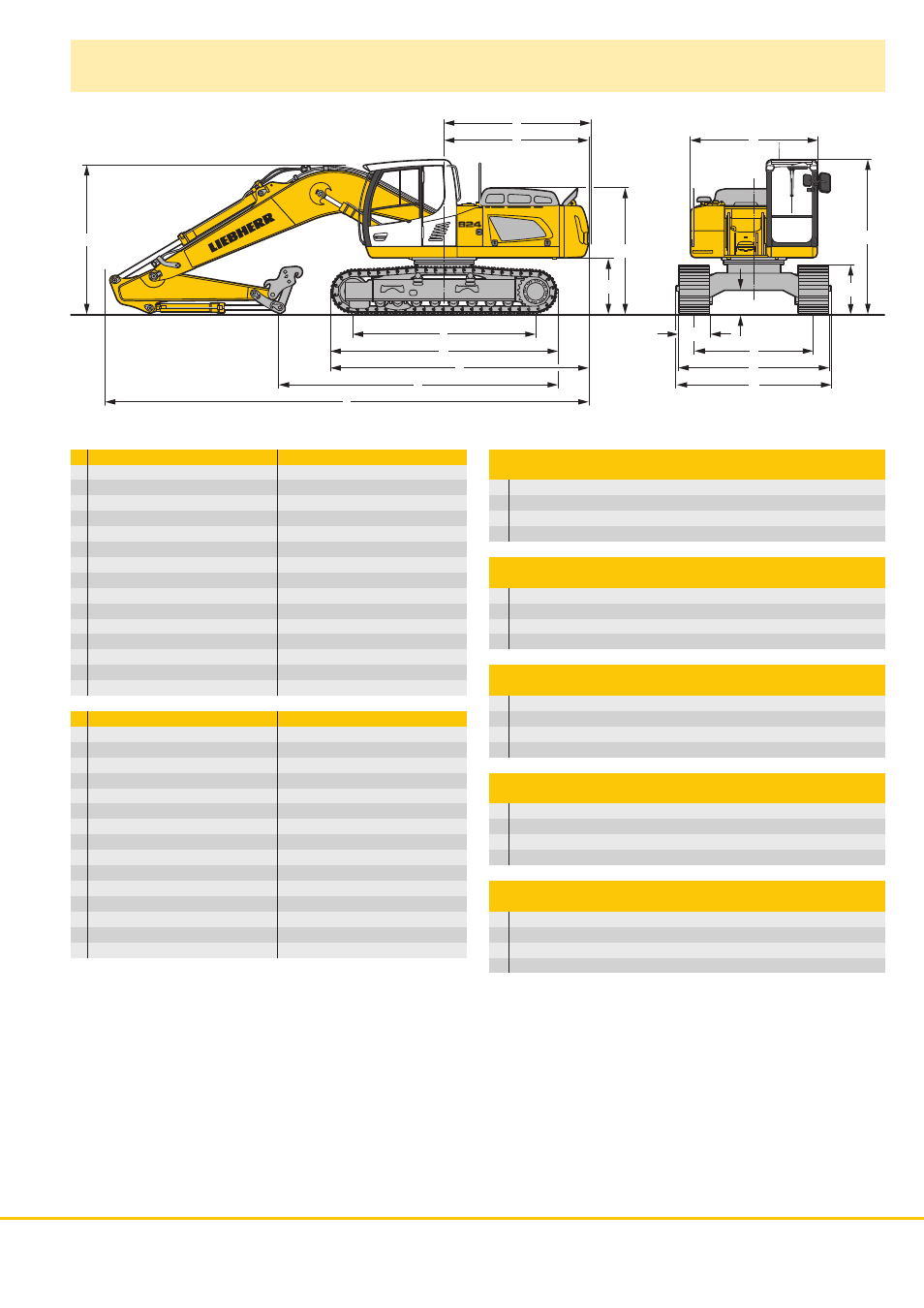

Dimensions
Mono Boom 5.70 m
Stick length
m
2.40
2.70
3.00
3.70
V for NLC-/SLC-/LC-Undercarriage mm 5,550 5,300 5,000 4,250
for WLC-Undercarriage
mm 5,650 5,400 5,100 4,350
W
mm 2,950 3,000 3,050 3,000
X
mm 9,650 9,650 9,700 9,650
Straight Mono Boom 6.00 m
Stick length
m
2.40
2.70
3.00
3.70
V for NLC-/SLC-/LC-Undercarriage mm 6,100 5,900 5,650 5,050
for WLC-Undercarriage
mm 6,350 6,200 6,000 5,750
W
mm 2,850 2,950 3,050 3,250
X
mm 10,000 10,000 10,000 10,000
Two-piece Boom 3.50 m
Stick length
m
2.40
2.70
3.00
3.70
V for NLC-/SLC-/LC-Undercarriage mm 5,900 5,650 5,400 4,700
for WLC-Undercarriage
mm 6,000 5,750 5,500 4,800
W
mm 2,700 2,750 2,900 2,950
X
mm 9,900 9,900 9,900 9,900
Two-piece Boom 4.00 m
Stick length
m
2.40
2.70
3.00
3.70
V for NLC-/SLC-/LC-Undercarriage mm 6,400 6,200 5,950 5,300
for WLC-Undercarriage
mm 6,500 6,300 6,050 5,400
W
mm 2,750 2,800 2,900 3,000
X
mm 10,400 10,400 10,400 10,400
Offset Mono Boom 5.70 m
Stick length
m
2.40
2.70
3.00
3.70
V for NLC-/SLC-/LC-Undercarriage mm 5,550 5,200 4,900 9,650
for WLC-Undercarriage
mm 5,650 5,300 5,000 9,750
W
mm 2,850 2,850 2,900 2,950
X
mm 9,650 9,650 9,700 9,650
NLC
mm
SLC
mm
A
2,545
2,545
C
3,060
3,060
D
2,880
2,880
E
2,900
2,900
H
2,490
2,490
K
1,110
1,110
L
3,648
3,648
P
950
950
Q
465
465
S
2,000
2,250
U
4,505
4,505
Z
5,135
5,135
N
500 600 750
500 600 750 900
B
2,500 2,600 2,750
2,750 2,850 3,000 3,150
G
2,480 2,680* 2,750*
2,790 2,790 2,990* 3,090*
LC
mm
WLC
mm
A
2,545
2,545
C
3,060
3,060
D
2,880
2,880
E
2,900
2,900
H
2,490
2,490
K
1,110
1,110
L
3,648
3,838
P
950
950
Q
465
465
S
2,380
2,590
U
4,505
4,700
Z
5,135
5,230
N
500 600 750 900
500 600 750 900
B
2,880 2,980 3,130 3,280
3,090 3,190 3,340 3,490
G
2,920 2,920 3,120* 3,220*
3,130 3,130 3,330* 3,430*
E = Tail radius
* = Width with removable steps
E
X
X
V
V
Z
Z
U
U
LL
K
K
W
W
H
H
G
G
B
B
Q
Q
N
N
S
S
P
P
C
C
A
A
D
D
