The 85 EC-B 5 City Crane
Connect & Work
Fast and safe assembly from Liebherr.
Connect & Work includes many simplified assembly features, combined with
more safety. Not only simplified mechanical features, even the electronic
function modules are modular. You only get this from Liebherr.
 LiConnect: Fast jib connections
 Pin magazines
 Safe electrical plug-in connections to drive systems and switchboards
 Fast connections for jib and counter-jib
 Assembly packages can be split easily to reduce the assembly weight
 High level of working and assembly safety
The EC-B compact head
Short erection times thanks to sophisticated technology.
A crane for many jobs – the new 85 EC-B 5.
The 85 EC-B city crane provides excellent performance and adaptability. The new
85 LC tower system and the top section are perfectly tailored to each other.
The crane is available in an FR.tronic version, standard version or a standard version
with frequency converter drives for different markets.

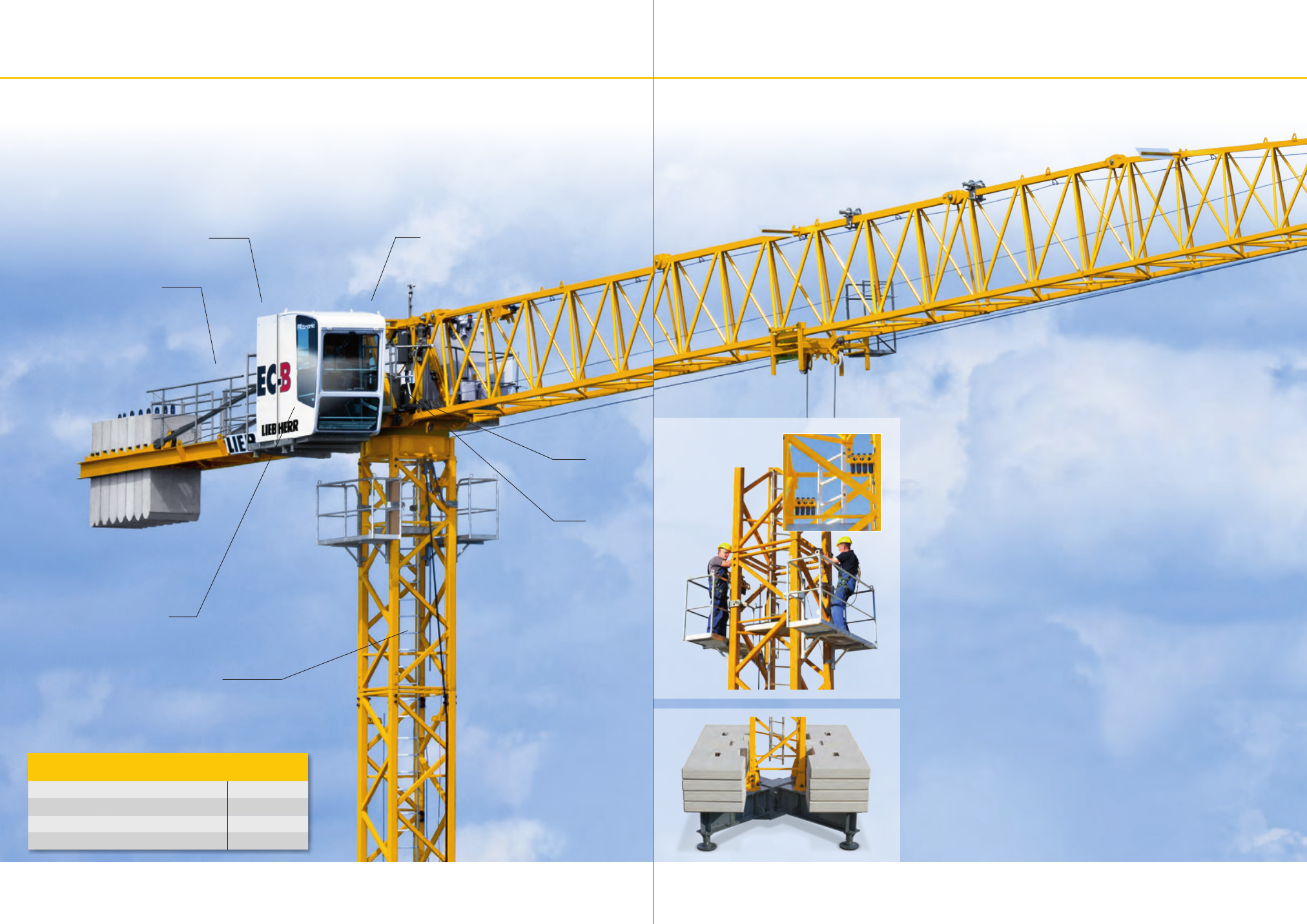

Technical data
Maximum lifting capacity 5,000 kg
Maximum radius 50.0 m
Maximum lifting capacity at the jib head 1,300 kg
Max. free-standing hook height 46.2 m
Hoist gear
mounted on the head
for high hook height Luxury cab
ergonomy results in
higher handling capacity Complete head
can be erected
with just one hoist
Practical assembly
technology
Secured zone
for safe ballasting
Luxury cab for
increased productivity
and energy efficiency
Safe: non-slip cab access
High-performance hoist units
for high handling performance
Safe access
to all zones
Pin magazines
in a handy position and safe
in the right position
Slewing gear for precise, smooth
slewing movements
 Load swing damping (FR.tronic)
 Wind force control (FR.tronic)
Trolley travel gear for high trolley
travelling speed and low-swing load
handling
SPEED 2 LIFT
pure 2-rope operation (FR.tronic)
LiConnect
fast jib connections
Jib can be reduced in steps
of 2.5 m to 20 m
1,300 kg lifting capacity at the jib head
50.0 m radius
Extra narrow 85 LC tower system
Cost-efficient transport and simple erection.
 1.2 m x 1.2 m external dimensions
 Everything in position with integral pin magazines
 Pins with special finishes
 Pins can be fitted and removed on both sides, even in narrow shafts
 Climbing inside or at the building
City cruciform base
Specially for use in urban locations.
 3.0 m x 3.0 m external dimensions including central ballast
 Precise levelling by precision support spindles
 Simple erection
Arrive safely
 Top section of crane can be transported in full on 2 lorries
 Tower systems external dimensions 1.2 m x 1.2 m
 Cost-optimised transport
 Up to 48 metre hook height can be transported on just one
additional lorry
 Crane can be fully containerised
Even more benefits
Simply well set-up
 Connect & Work
 Easy, safe erection
 Low erection weight
 Can be erected with small mobile cranes
Working fast and safe – for sure
 Crane can be controlled with a remote control
 Crane can be used with or without a cab
 Energy-efficient high performance drive units (FR.tronic)
 Electronic function modules (FR.tronic)
- Electronic monitor system EMS
- Load-moment limiting system LMB
- Operating-range limiting system ABB
