36 R 956 Litronic
Front Shovel

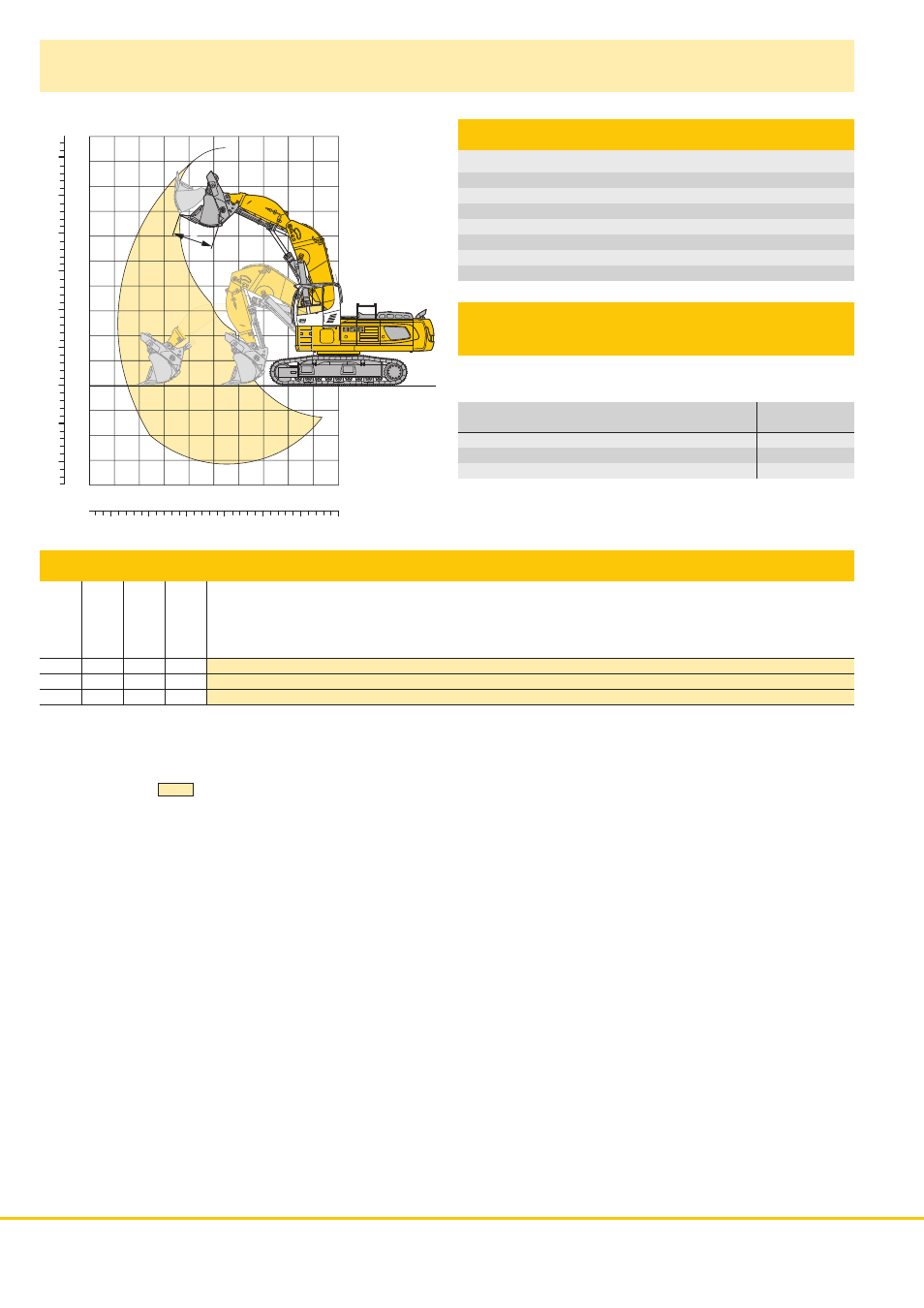

Digging Envelope
Max. reach at ground level 8.50 m
Max. dump height 6.30 m
Max. crowd length 3.40 m
Bucket opening width T 1,640 mm
Max. crowd force 435 kN/44.3 t
Max. crowd force at ground level 275 kN/28.0 t
Max. breakout force 355 kN/36.2 t
Operating Weight
and Ground Pressure
Operating weight includes basic machine with cab elevation, shovel
attachment and front shovel 3.10 m
3 , level II.
Undercarriage HD
Pad width mm 500 600
Weight kg 55,650 56,200
Ground pressure kg/cm 2 1.14 0.96
Front Shovels
HD-Undercarriage
Shovel Attachment
mm m 3 kg
2,150 3.10 5,000 I
2,150 3.10 5,600 II
2,150 3.10 5,900 III
Level I: For non-abrasive materials, such as limestone without flint inclusion, shot material or easily breakable rock, i.e., deteriorated rock, soft
limestone, shale, etc.
Level II: For pre-blasted heavy rock, or deteriorated, cracked material (classification 3 to 4, accord. to DIN 18300)
Level III: For highly-abrasive materials such as rock with a high silica content, sandstone etc.
Max. material weight Y = ≤ 1.8 t/m 3
Cutting width Capacity ISO 7451 Weight Wear kit level
10 7 8 9 6 5 4 3 2 1 0 m
30 25 20 15 10 5 0 ft R0065
-10
-5
0
5
10
15
20
25
ft
30
T
-3
-4
-2
-1
0
1
2
3
4
5
6
7
8
9
10
m
