Choice of Cab Elevation
and Cab Protection
20 R 944 C Litronic Machine for Industrial Applications
D
B
C
D1
B1
C1
D2
B2
C2
E
D1
B1
C1
D2
B2
C2
E

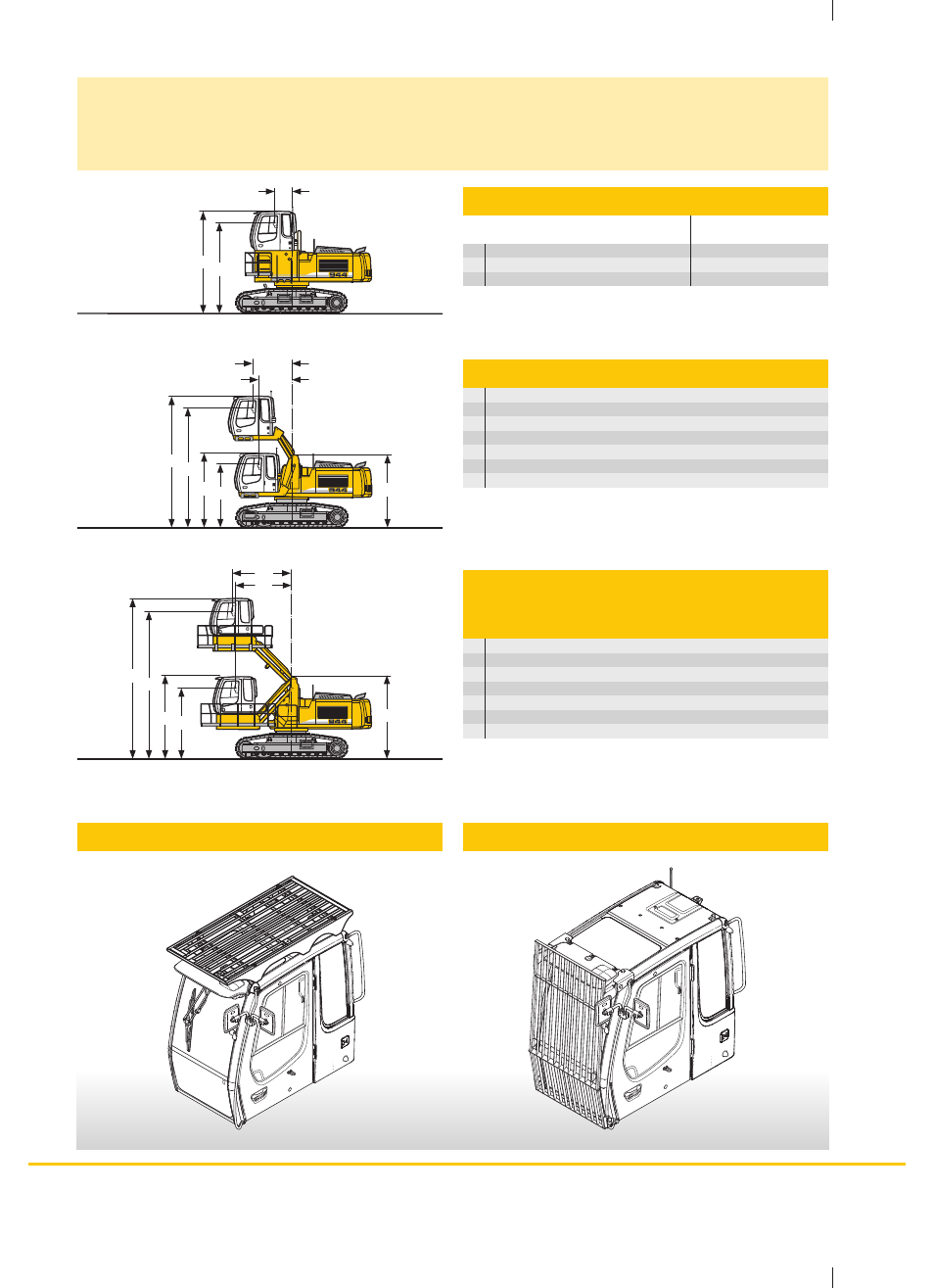

Rigid Cab Elevation
Height 1200 mm 2000 mm
B 3995 mm 4795 mm
C 4490 mm 5290 mm
D 765 mm 765 mm
Additional weight with fixed cab elevation 2000 mm in relation to cab
elevation 1200 mm: 200 kg
Hydraulic Cab Elevation
(Parallelogram)
+ Intermediate Piece 0,5 m
B1 3300 mm
B2 6885 mm
C1 3798 mm
C2 7383 mm
D1 2490 mm
D2 2630 mm
E 3785 mm
Additional weight in relation to cab elevation 1200 mm: 1700 kg
Hydraulic Cab Elevation
B1 2790 mm
B2 5290 mm
C1 3290 mm
C2 5790 mm
D1 1450 mm
D2 1700 mm
E 3200 mm
Additional weight in relation to cab elevation 1200 mm: 600 kg
FOPS Guard Front Guard
Seite ist r
echts 15 mm schmäler (Klappseite)
