38 ER 934 C ER 944 C ER 954 C High Rise
ER
9
3
4
C
ER
9
4
4
C
ER
9
5
4
C

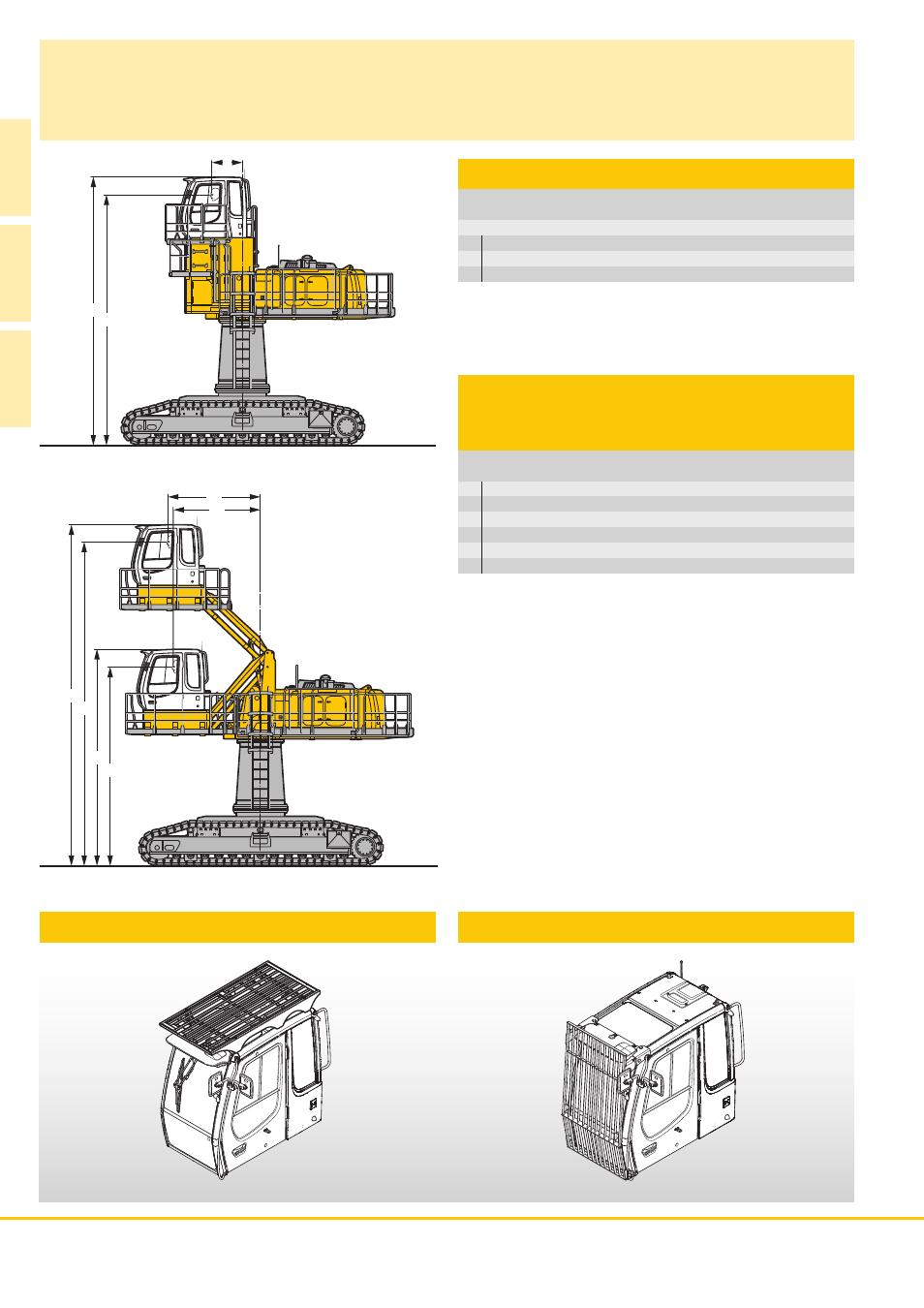

Choice of Cab Elevation
and Cab Protection
FOPS Guard Front Guard
Rigid Cab Elevation
934 944 954 934 944 954
mm mm mm mm mm mm
Height 1,200 1,200 1,200 2,000 2,000 2,000
B 6,150 6,380 6,550 6,950 7,180 7,350
C 6,700 6,890 7,060 7,500 7,690 7,860
D 800 880 1,100 800 880 1,100
Additional weight with fixed cab elevation 2,000 mm in relation to cab
elevation 1,200 mm:
934: 400 kg 944: 400 kg 954: 400 kg
Hydraulic Cab Elevation
(Parallelogram)
+ Intermediate Piece 0.5 m
934 944 954
mm mm mm
B1 5,290 5,680 5,850
B2 8,710 9,265 9,420
C1 5,840 6,180 6,345
C2 9,260 9,765 9,915
D1 2,400 2,500 2,850
D2 2,400 2,650 3,000
Additional weight in relation to cab elevation 1,200 mm:
934: 1,100 kg 944: 1,200 kg 954: 1,200 kg
R0108
B B
C C
D D
R0109
B1 B1
C1 C1
B2 B2
C2 C2
D1 D1
D2 D2
