D. SERVICING:
NOTE: THIS APPLIANCE MUST BE SERVICED BY AN AUTHORIZED SERVICE AGENT.
(1) Power supply to the unit must be disconnected before any service is performed.
(2) Most of the service on the unit can be performed from the front and/or control panel side.
(3) For proper servicing, access to the control panel side of the unit will be required.
(4)
It will be necessary to have access to the back of the oven for service needs related to the
electric power supply.
(5) A system wiring diagram is provided in this manual and on the back of the service panel on the
right side of the oven.
(6) All servicing should be performed by a factory-authorized technician only.
(7) For proper maintenance and repairs, call the factory toll free (800-972-6887) for an authorized
service agency in your area.

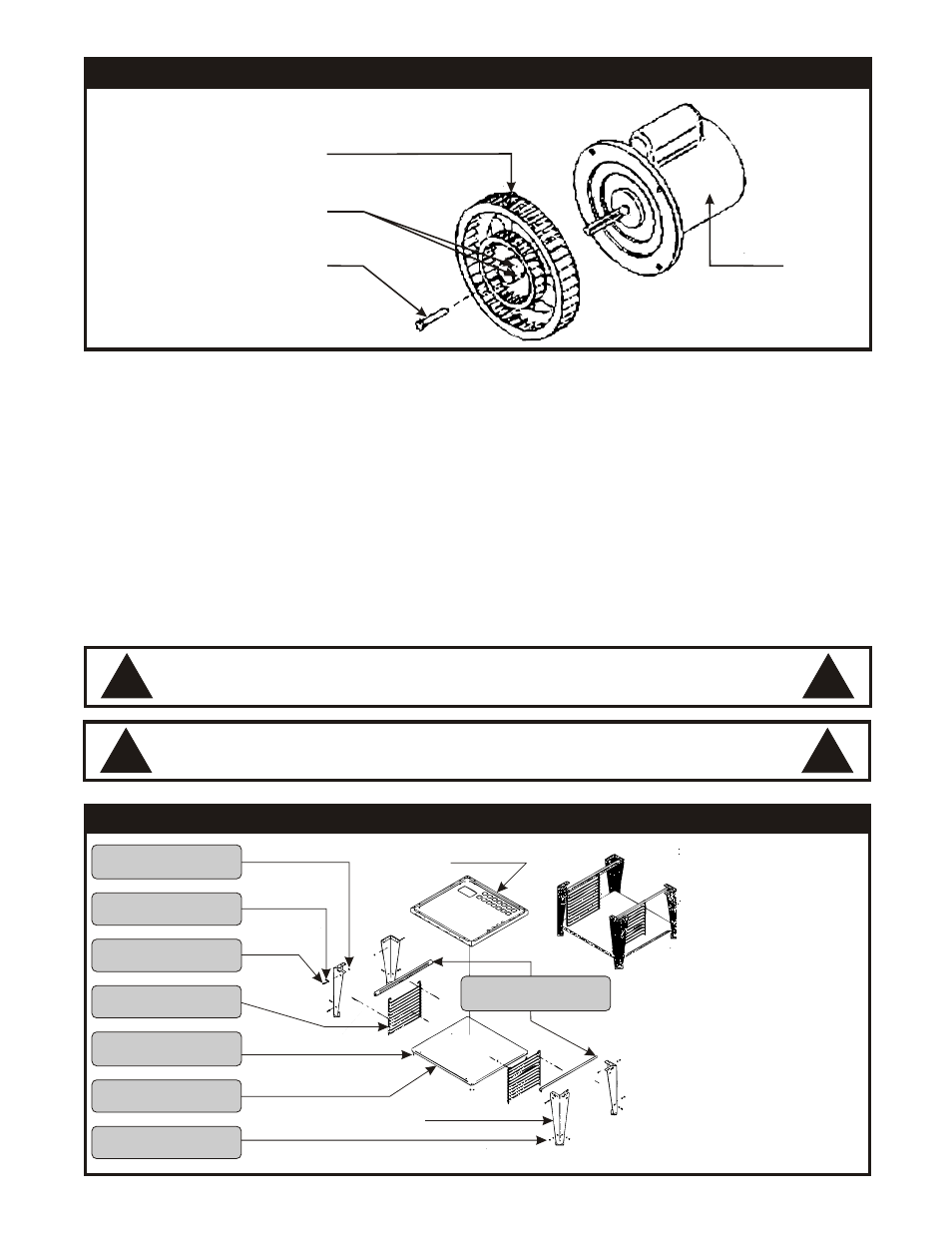

Cleaning The Blower Wheel Figure 1
! !
CAUTION: This product, when stacked, has more than one power-supply
connection point. Disconnect all power supplies before servicing.
! !
WARNING: RISK OF FIRE. When stacked two high maximum, use stacking kit
part # E3771A only.
Blower Wheel
Set Screws (2)
Wheel Puller Bolt 3/8”-Hex Motor
Figure 2 OPEN RACK STAND ASSEMBLY INSTRUCTIONS: COB-E & COM-E
Assembly Instructions
1: Place undershelf between
legs & secure with ¼-20
UNC screw, flat washer &
locknut. The holes for
mounting the wire racks
should be toward the front
of the oven.
2: Place open rack supports
between legs and secure
with ¼-20 UNC screw, flat
washer and locknut.
3: Slide open wire racks into
position using the holes in
the undershelf as a guide.
21818234
Undershelf, Gas Oven (1)
770504
Lock Nut 1/4-20 (12)
770504
Lock Nut 1/4-20 (12)
8507600
Washer, Flat 1/4" (12)
Oven Base
8205500
Screw, 1/4-20 X ½ (12)
21816807
Support, Wire Rack (2)
8205500
Screw, 1/4-20 X ½ (12)
Open Style Support Leg
21818222
Support, Lt Open Rack (2)
