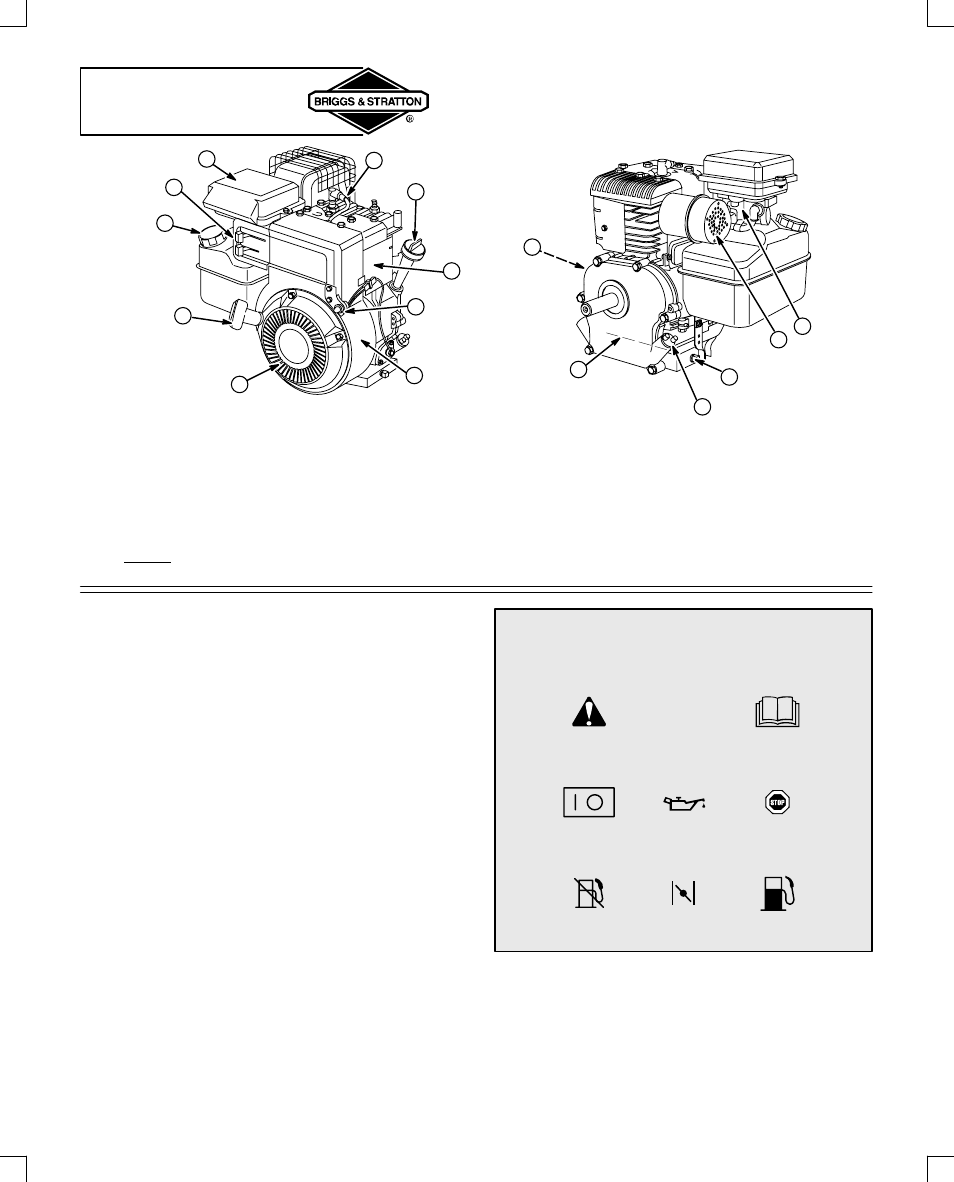

ENGINE PARTS
1. Finger guard/Rotating screen
2. Rope handle
3. Fuel fill
4. Control levers
5. Air cleaner
6. Spark plug wire
7. Dipstick/Oil fill tube (if equipped)
8. Engine
Model Type Code
xxxxx xxxx xx xxxxxxxx
9. OIL GARD  light (if equipped)
10. Blower housing
11. Carburetor
12. Muffler/(Muffler guard, if equipped)/
(Spark arrester, if equipped)
13. Oil drain plug
14. Oil fill cap
15. Oil level
16. 12V electric starter (if equipped)
3
4
5
1
2
6
7
8
10
9
15
16
11
12
13
14
GENERAL INFORMATION
ENGINE MODEL
This is a single cylinder, L-head, air-cooled engine. It is a
low emissions engine.
MODEL SERIES 130000
Bore 2-9/16 in. (65.09 mm) . . . . . . . . . . . . . . . . . . . . . . . . . .
Stroke 2-7/16 in. (61.91 mm) . . . . . . . . . . . . . . . . . . . . . . . .
Displacement 12.57 cu. in. (206.0 cc) . . . . . . . . . . . . . . . .
Note: For practical operation, the horsepower loading
should not exceed 85% of rated horsepower. Engine power
will decrease 3-1/2% for each 1,000 feet (300 meters)
above sea level and 1% for each 10
°
F (5.6
°
C) above 77
°
F
(25
°
C). It will operate satisfactorily at an angle up to 15
°
.
TUNE-UP SPECIFICATIONS
Armature air gap 0.010 – 0.014 in. (0.25 – 0.36 mm) . . .
Spark plug gap 0.030 in. (0.76 mm) . . . . . . . . . . . . . . . . . .
Valve clearance with valve springs installed and piston 1/4 in.
(6 mm) past top dead center (check when engine is cold).
See Repair Manual P/N 270962.
Intake
0.005 – 0.007 in. (0.13 – 0.18 mm) . . . . . . . . . . . . .
Exhaust 0.009 – 0.011 in. (0.23 – 0.28 mm) . . . . . . . . . . .
THE INTERNATIONAL SYMBOLS USED
ON THE ENGINE OR
IN THIS MANUAL INCLUDE:
On Off
Fuel Shutoff
Read Owner’s
Manual
Stop
Fuel Choke
Safety Alert
Oil
