11
EN
GL
IS
H
+12V GND TURN-ON 1
MIN FUSE 30A X 4
CHIL
2 Ohm
(1 Ohm Minimum)
2 Ohm
(1 Ohm Minimum)

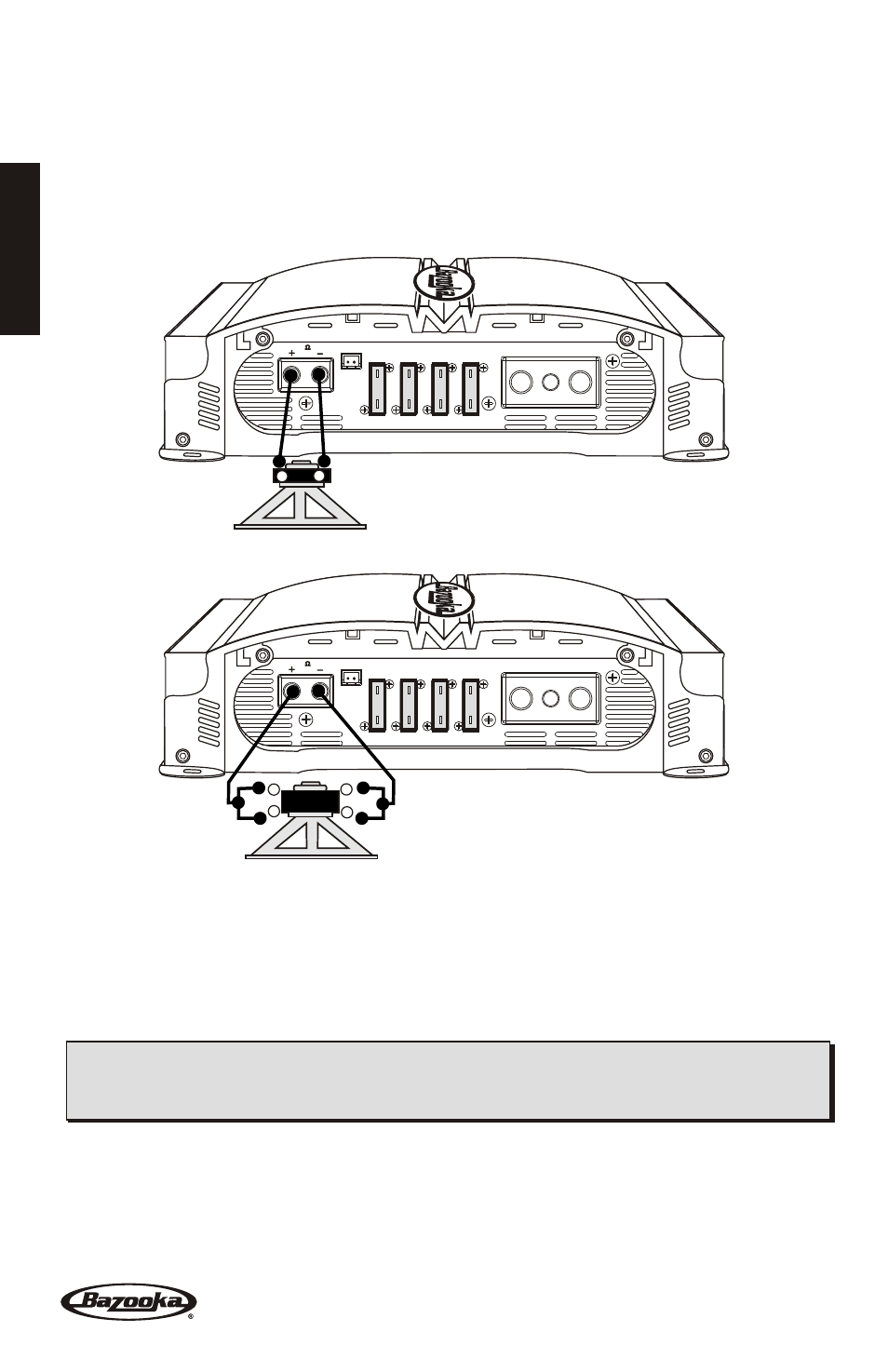

Make the speaker connections using speaker wire that is at least 12 gauge or heavier.
As with any audio component, proper phasing of the amplifier and speakers is essential for
strong bass response. When connecting, make sure that positive (+) from the amplifier is
connected to the positive (+) of the speaker, and the same for negative (-).
S
PEAKER CONNECTIONS
+12V GND TURN-ON 1
MIN FUSE 30A X 4
CHIL
+ + - -
2 Ohm
(1 Ohm Minimum)
2 Ohm
(1 Ohm Minimum)
Dual 4 Ohm Woofer Dual 4 Ohm Woofer
+ +
+ +
- -
- -
CAUTION!
The amplifiers must see a 1 Ohm load or higher for the subwoofer(s). Any lower
than the above mentioned impedance will cause the amplifiers to overheat and possibly cause
permanent damage to the amplifiers.
*2 Ohm load recommended for best efficiency
and to optimize the power output.
