ASSEMBLY
K0451pr-0921
3

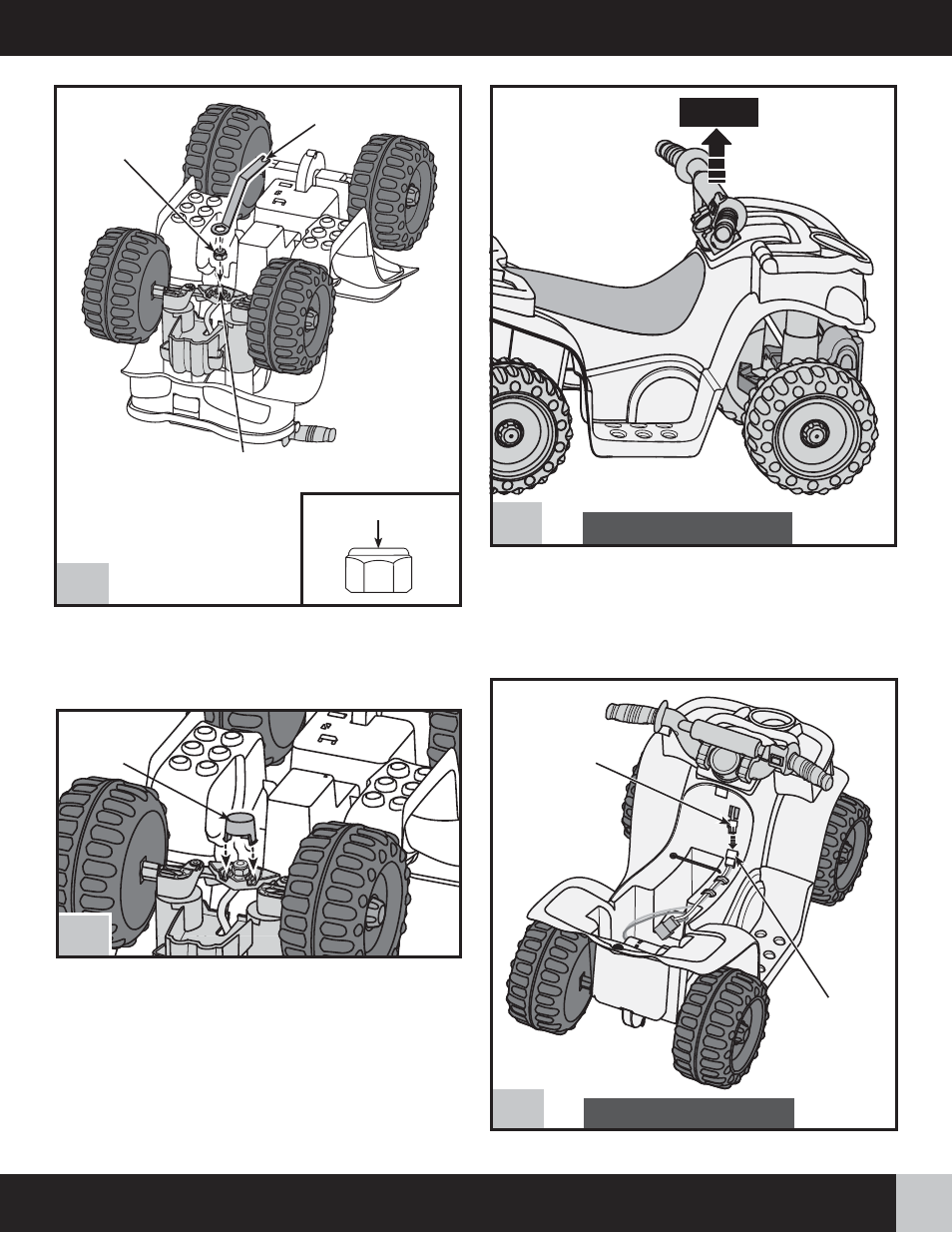

• Place the lock nut (rounded side up) on to the end of the
steering column.
• Tighten the lock nut firmly using the closed end of the
assembly tool.
Steering Column
Lock Nut
Steering
Column
Cap
• Turn the vehicle upright.
• Pull the handlebar up to be sure the steering column is secure.
• If you can remove the steering column, you have not
assembled the steering column correctly. Please refer back to
Assembly steps 3 and 4.
Pull Up
5
• Plug the handlebar connector into the motor connector.
Motor
Connector
Handlebar
Connector
Assembly Tool
Rounded Side Up
• “Snap” the steering column cap over the cap nut.
4
