1. Leg (4) (2 with holes at base for attaching wheel

bracket and brace)

2. 3/8 inchFlat Washer for Mounting Saw to Stand &

for Assembling Stand (24)

3. Foot

(4)

4. M8x1.25 Hex Nut for Mounting Saw to Stand &

for Assembling Stand (20)

5. M8x1.25x45mm Hex Screw for Mounting Saw to

Stand (4)

6. M8x1.25x20mm Carriage Head Bolts for

Assembling Stand (16)

7. 18-1/2 inchTop Front and Rear Brackets (2)
8. 17 inch Top Side Brackets (2)
9. 22 inch Bottom Front and Rear Brackets (2)
10. 20-3/8 inch Bottom Side Brackets (2)
11. Wheel Assembly (2)
12. 25 inch Brace (1)

Fig. 4 Stand Hardware

Fig. 2

Fig. 3

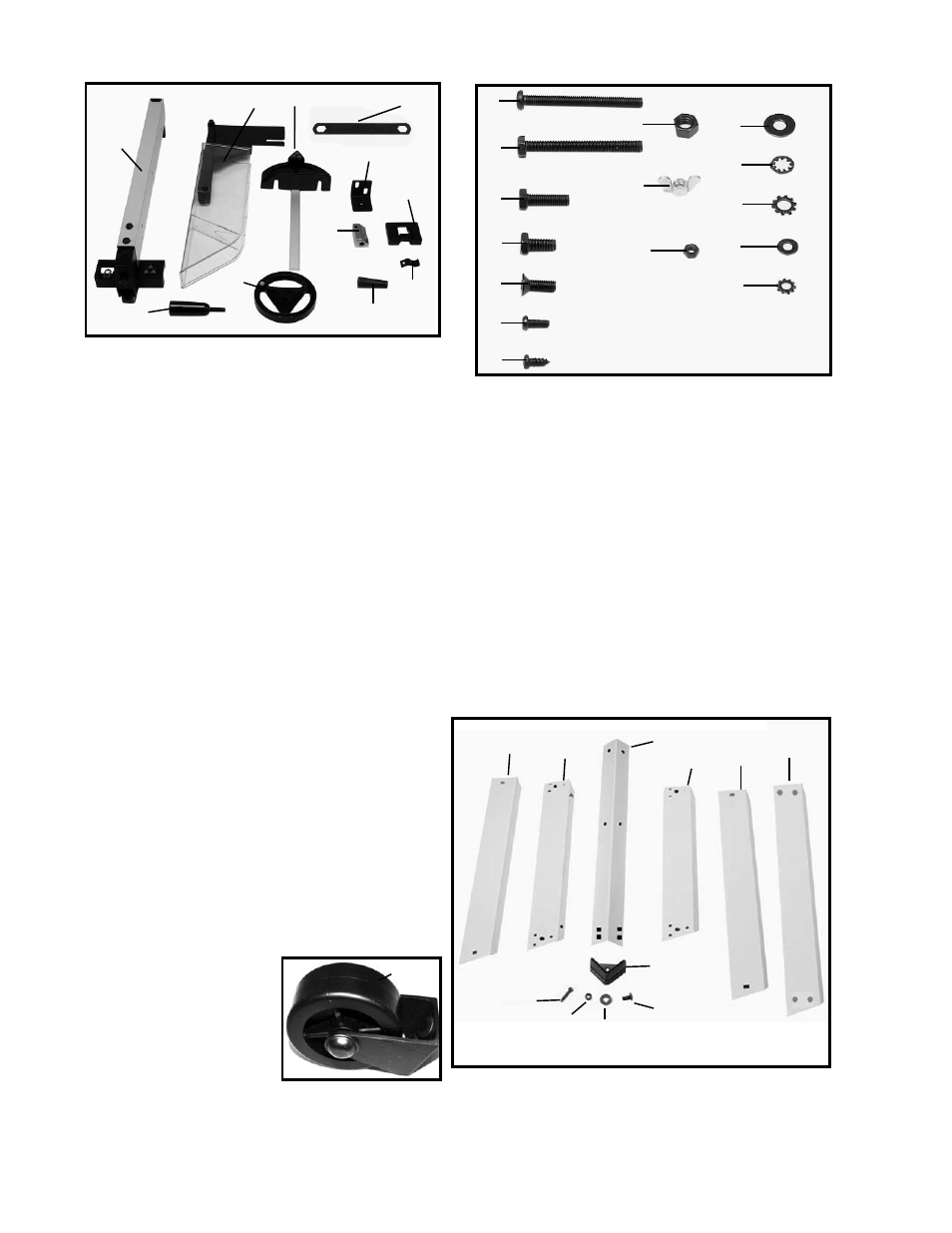

Fig. 2 Parts

1. Rip Fence
2. Splitter and Guard Assembly
3. Lock Handle for Rip Fence
4. Blade Raising and Lowering Handwheel
5. Miter Gage
6. Splitter Support Bracket
7. Splitter Bracket
8. Handle for Blade Raising and Lowering Handwheel
9. Miter Gage Holder
10. Spring Clip for Miter Gage Holder
11. Blade Wrench

Fig. 3 Hardware

1. M6x1x55mm Pan Head Screw (1)
2. 1/4-20x2 inch Hex Head Screw (1)
3. M6x1x20mm Hex Head Screw (1)
4. 1/4-20x1/2 inch Hex Head Screw (2)
5. M6x1x12mm Flat Head Screw (1)
6. M4x.7x10mm Pan Head Screw (1)
7. M4x.2x10mm Pan Head Screw (4)
8. M8x1.25 Hex Nut (1)
9. M6x1 Wing Nut (1)
10. M4.7 Hex Nut (1)
11. M6.4 Flat Washer (3)
12. 1/4 inch Internal Tooth Lockwasher (1)
13. 1/4 inch External Tooth Lockwasher (5)
14. 3/16 inch Flat Washer (4)
15. 3/16 inch External Tooth Flat Washer (1)

1

2

3

4

5

6

7

8

9

10

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

11

11

1

8

9

7

10

3

6

2

4

5

Fig. 4

12
