5 MINIMON MON800 User Manual
2. MON800 Quick-Start Set-Up
B-CONTROL
FADER BCF2000
MINIMON MON800
Speakers Out A
Digital Monitor
Speakers MS20
Mix in A
Computer
TRUTH B2031A
Speakers Out B

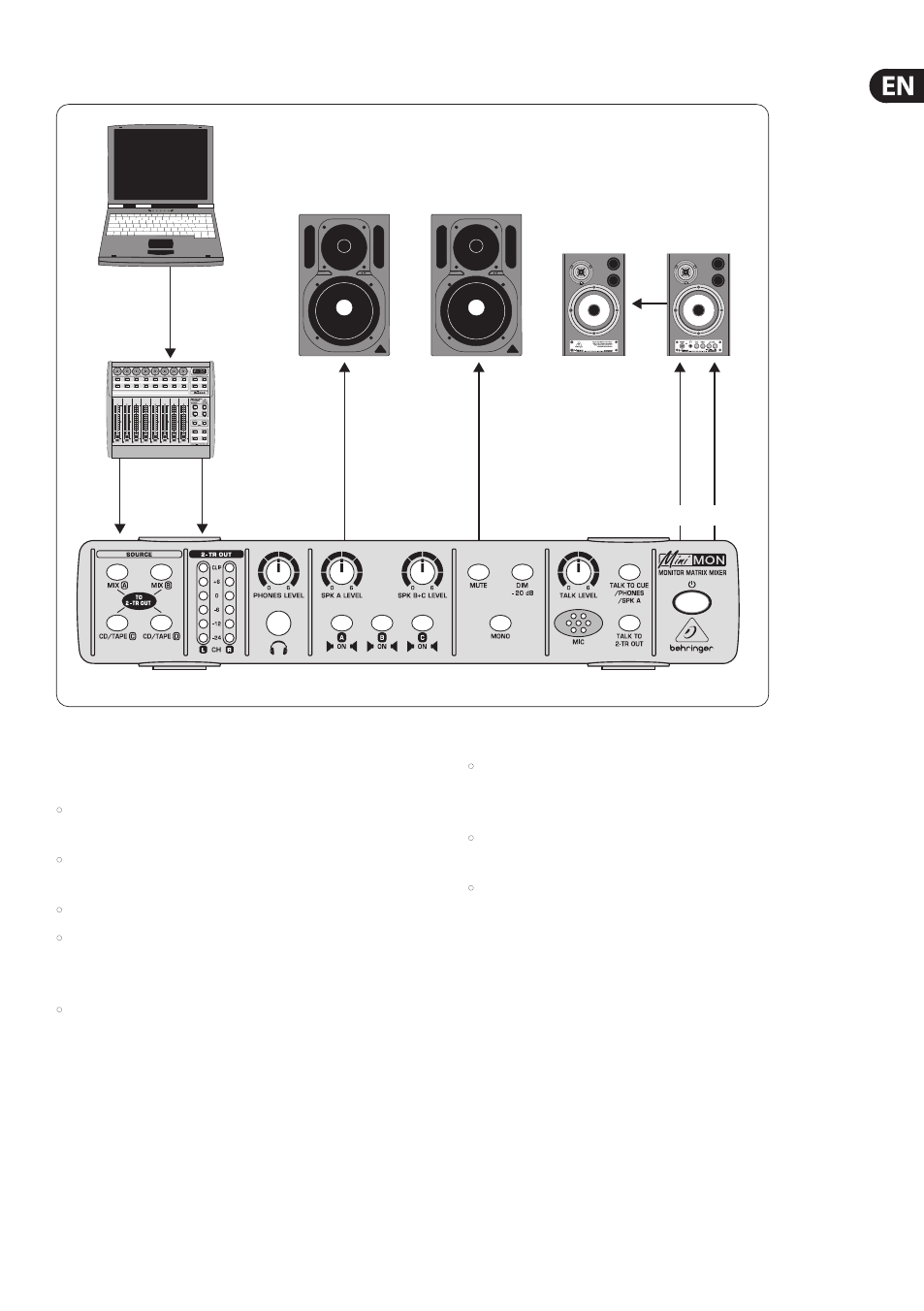

Fig. 2.1: MON800 quick-start set-up
Please follow the instructions below to set up the MON800 as a
monitor unit with different speakers in your studio.
• Connect your computer or any other line-level source to the
MIX IN A connectors on the MON800.
• Connect your main monitor speakers to the SPEAKERS OUT A
connectors, and another pair of speakers to the B outputs.
• Press the MIX A switch in the SOURCE section.
• Use the 2-TR OUT LED display to check the signal level. If the CLIP
LED lights up, please reduce the input signal level until it settles
between the -6 dB and +6 dB markings.
• The switches A and B allow you to switch the pairs of speakers
on and off. Activate the A speakers and adjust the desired
volume with SPK A LEVEL.
• Switch off the A speakers and activate the B speakers. Use SPK
B + C LEVEL to adjust a volume level that is roughly the same as
the A speakers volume.
• Switch between the two pairs of speakers to check the volume
levels. Align the volume if necessary.
• By switching between the two pairs of speakers you can
evaluate your mixes by way of a direct comparison using two
different monitor systems.
