10 MINIMON MON800 User Manual
5. Audio Connections
There are various ways to integrate the MON800 into your set-up.
Depending on the application in question, you will need different sets
of connecting cables. The cables to use are described below.
5.1 Connection with 1/4" or cinch cables
Please use standard 1/4" or cinch cables to connect the MINIMON to
other equipment. These cables have a 1/4" or cinch connector at each
end. Connect the inputs and outputs of the MON800 to the respective
connectors of the other devices.
shield
sleeve sleeve
tip tip

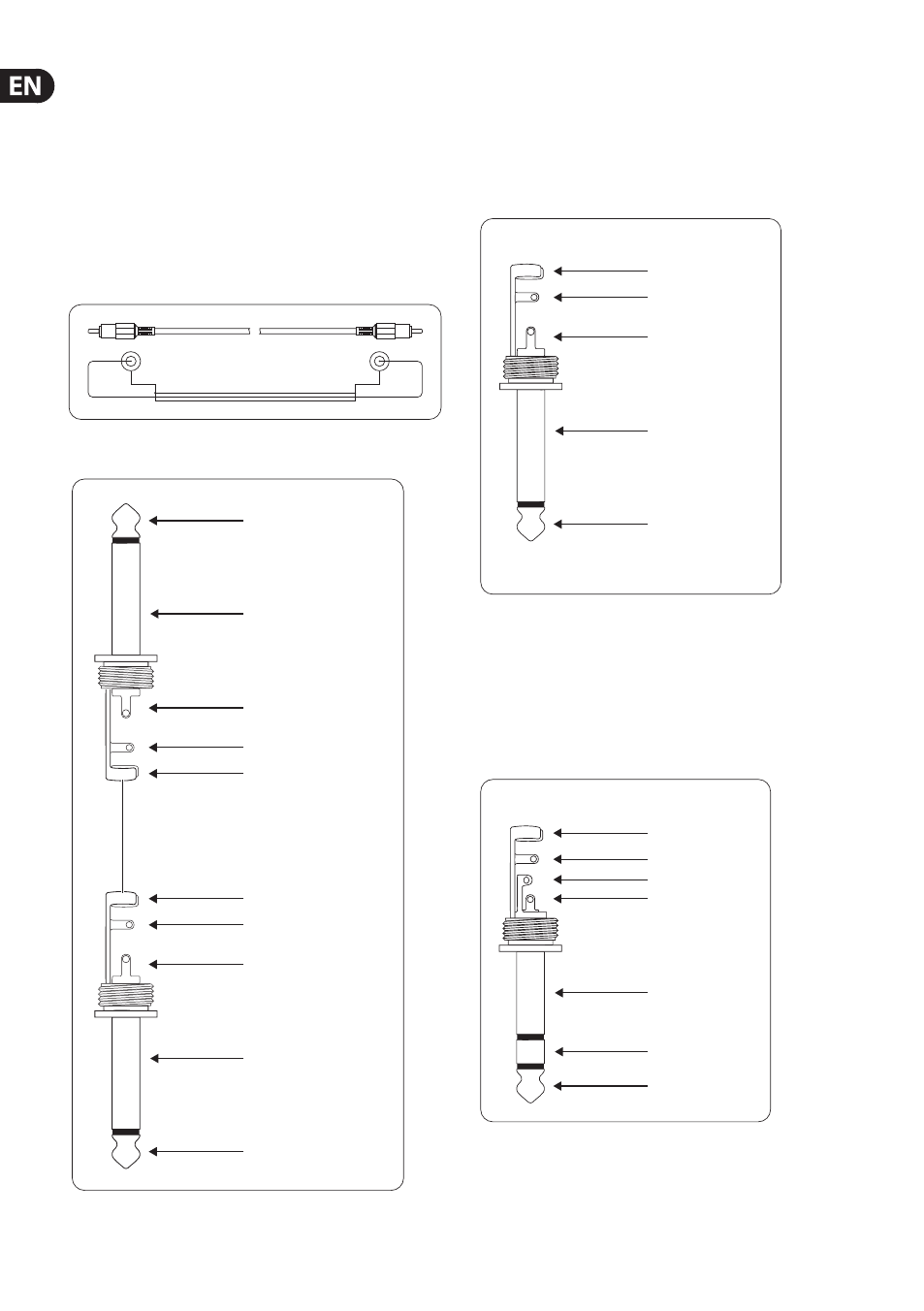

Fig. 5.1: Wiring diagram of a hi-fi cinch cable
strain relief clamp
strain relief clamp
sleeve
sleeve
tip
tip
sleeve
ground/shield
sleeve
ground/shield
tip
signal
tip
signal
Fig. 5.2: Unbalanced cable with 1/4" TS connectors
5.2 Footswitch connection
The MINIMON features a jack for the connection of a footswitch.
Here, you can connect any commercially available footswitch with
a 1/4" TS connector. As some footswitch models on the market have
a different polarity, please be sure to use one that is appropriately
wired. The correct wiring is shown in the illustration below.
strain relief clamp
sleeve
tip
sleeve
pole 1/ground
tip
pole 2
The footswitch connects both poles momentarily
¼" TS footswitch connector
Fig. 5.3: Wiring of a 1/4" TS connector for footswitch connection
5.3 Headphones connection
The MINIMON has two jacks for headphones. Here, you can connect
any standard pair of stereo headphones with a 1/4" TRS connector.
For 3.5-mm plugs you need an appropriate adaptor. The correct
wiring diagram is shown in the illustration below.
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
¼" TRS headphones connector
ring
right signal
tip
left signal
Fig. 5.4: Wiring of a 1/4" TRS headphones connector
