Step 4 – Bowflex SelectTect BDS1642 User Manual

Page 7

background image

7

step

4

Parts:

• Stand Leg and Cross Brace assembly from Step 3

• Center Plate (#17)

Hardware

Qty

• 2.5" Screws (#14) 4

• Washers (#11)

8

• Nuts (#10)

4

Tools:

• Hex Key (7/32”)

• Wrench/Socket (9/16”) or Adjustable Wrench

4-1 Install the Center Plate (#17) to both Stand Legs (#4) using the hardware shown in Figure 4.

Note: Make sure that the Center Plate edges are on the outer sides of the legs, and that the logo

on the Plate is right side up.

4-2 Tighten all hardware from Steps 1, 2 and 3 securely.

��

��

��
��

��

��

��

��

��

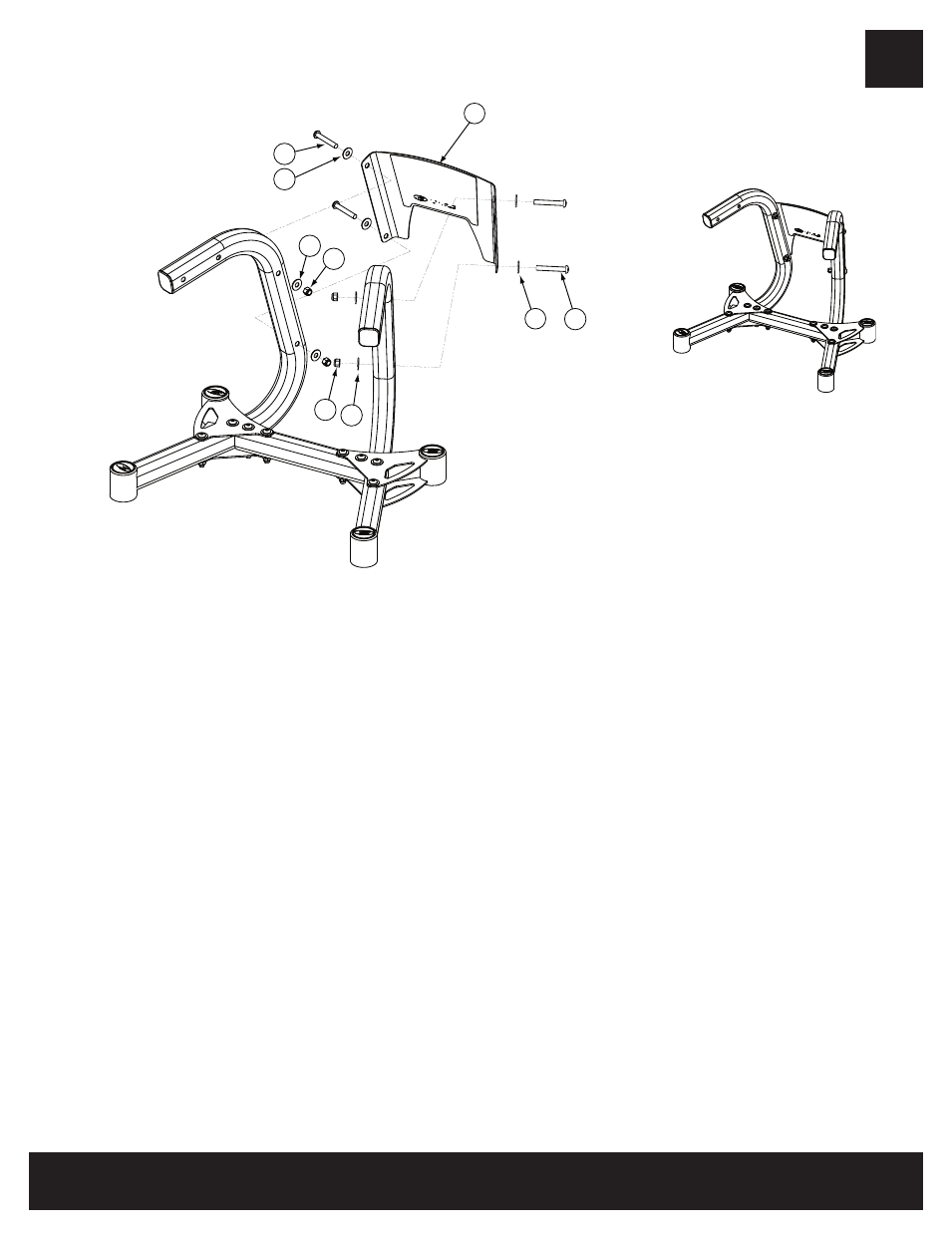

Figure 4
